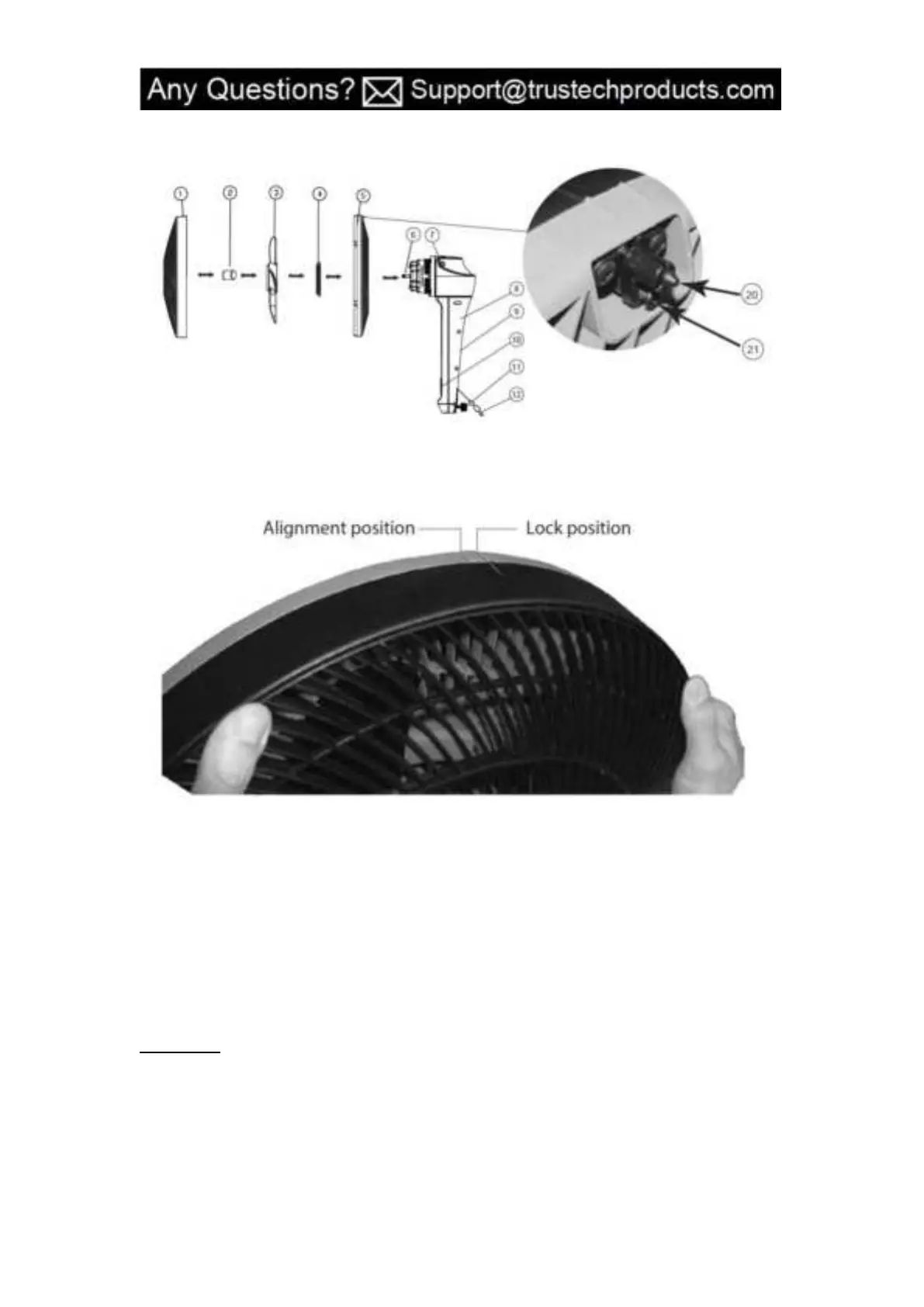

ASSEMBLY OF BLADE AND GRILLES（Fig.2 #1-7.#19.#20）
Fig.2
Fig.3
1. Remove and discard the plastic sleeve on the motor shaft (#6). Position the rear grille (#5)
against the front of the motor housing through the motor shaft (#6). Ensure the handle at
the back of grille (#5) is facing up and that all guiding pegs on the motor housing are lined up
with cutouts on the rear grille (#5).
2. Secure the rear grille (#5) with the plastic nut (#4). Fasten the plastic nut (#4) in a
CLOCKWISE direction, firmly placing the rear grille (#5) on the motor housing (#7).
3. Install the fan blade (#3) onto the motor shaft (#6) with the cutouts fitted, and then place
spinner (#2) on the motor shaft (#6) too. Fasten into place by tightening the metal knob (#2)
in a COUNTER-CLOCKWISE direction.
