11
Safety, Installation, and Operations Manual
©2020 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0001 Rev 02, 06-2020
High Performance Solar
y Mounting Using Rail-less Racking Systems:

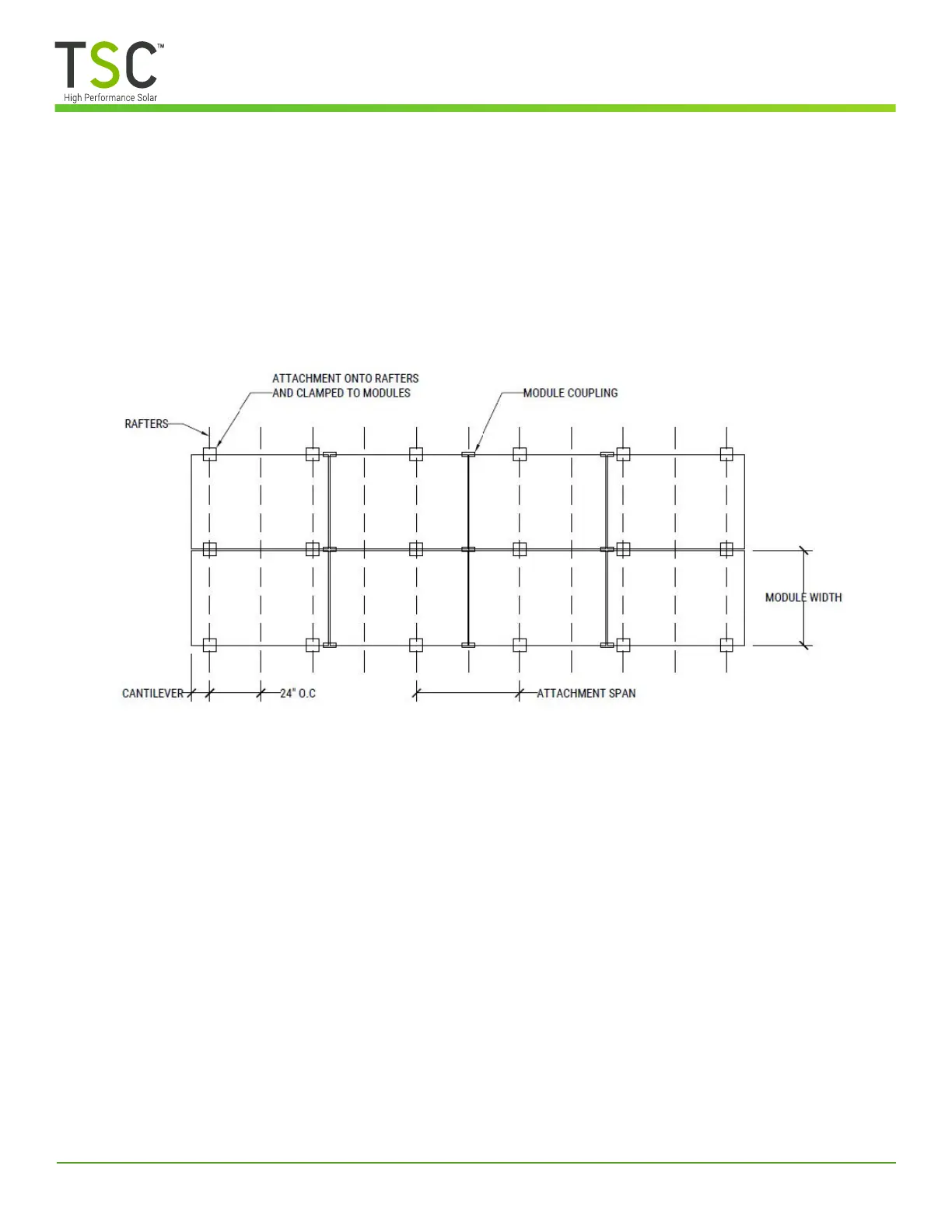

Typical rail-less racking system layout is shown in the diagram below.
Attachments are to be made on the long side of the module with maximum attachment span of 48 inches
and maximum cantilever of 17 inches.
Follow racking system manufacturer’s recommendations for coupling clamps at the module corners,
torques, and bonding methods.
For rail-less systems, maximum allowed loading is 2400Pa (front) and 2400Pa (rear).
4.3 Module Direction and Tilt Angle
y Modules produce maximum energy when they are pointed directly to the Sun. Modules get maximum sunlight
throughout the year if they face South in Northern Hemisphere and they face North in Southern Hemisphere.
4.4 Module Orientation
y Modules can be mounted in either “portrait” or “landscape” orientation.
