13
Safety, Installation, and Operations Manual
©2020 TSC PowerHome All rights reserved. Contents subject to change without notice. TSC-MAN-0001 Rev 02, 06-2020
High Performance Solar
TSC PowerXT
®
-xxxR-PD

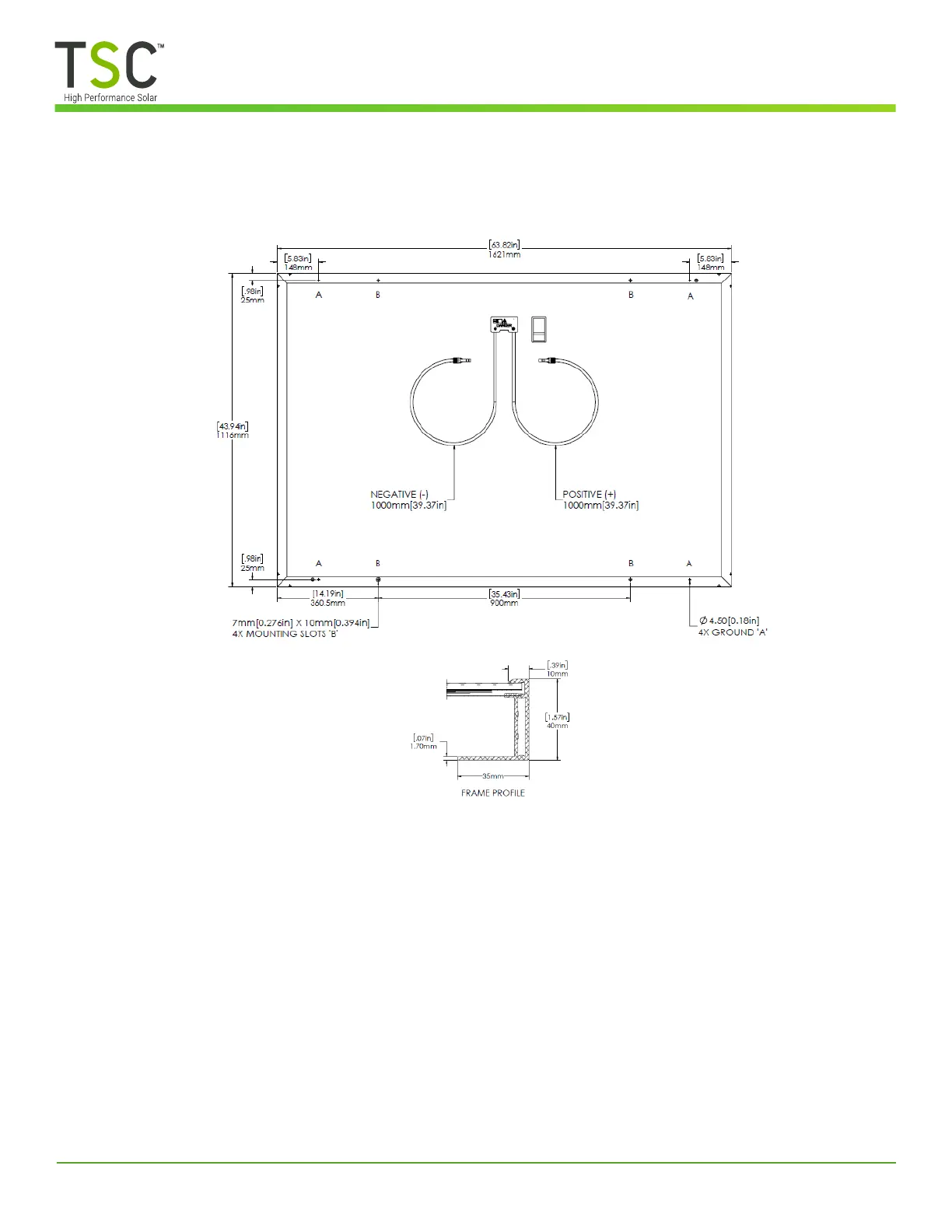

y Nominal dimensions in millimeters and [inches] – Not Drawn to Scale
y 4x 4.5mm [0.18in] Grounding Holes ‘A’
y 4x 7.0mm [0.28in] x 10.0mm [0.39in] Mounting Slots ‘B’
y Module Weight: 21 kg (46 lbs.)
8.0 Mechanical Dimensions
