TSI Instruments AEROTRAK+ 6501 User Manual

2–1
C H A P T E R 2
Installation and
Getting Started
This chapter describes the features, connections, and installation of the
AeroTrak
®
+ Remote Particle Counter.

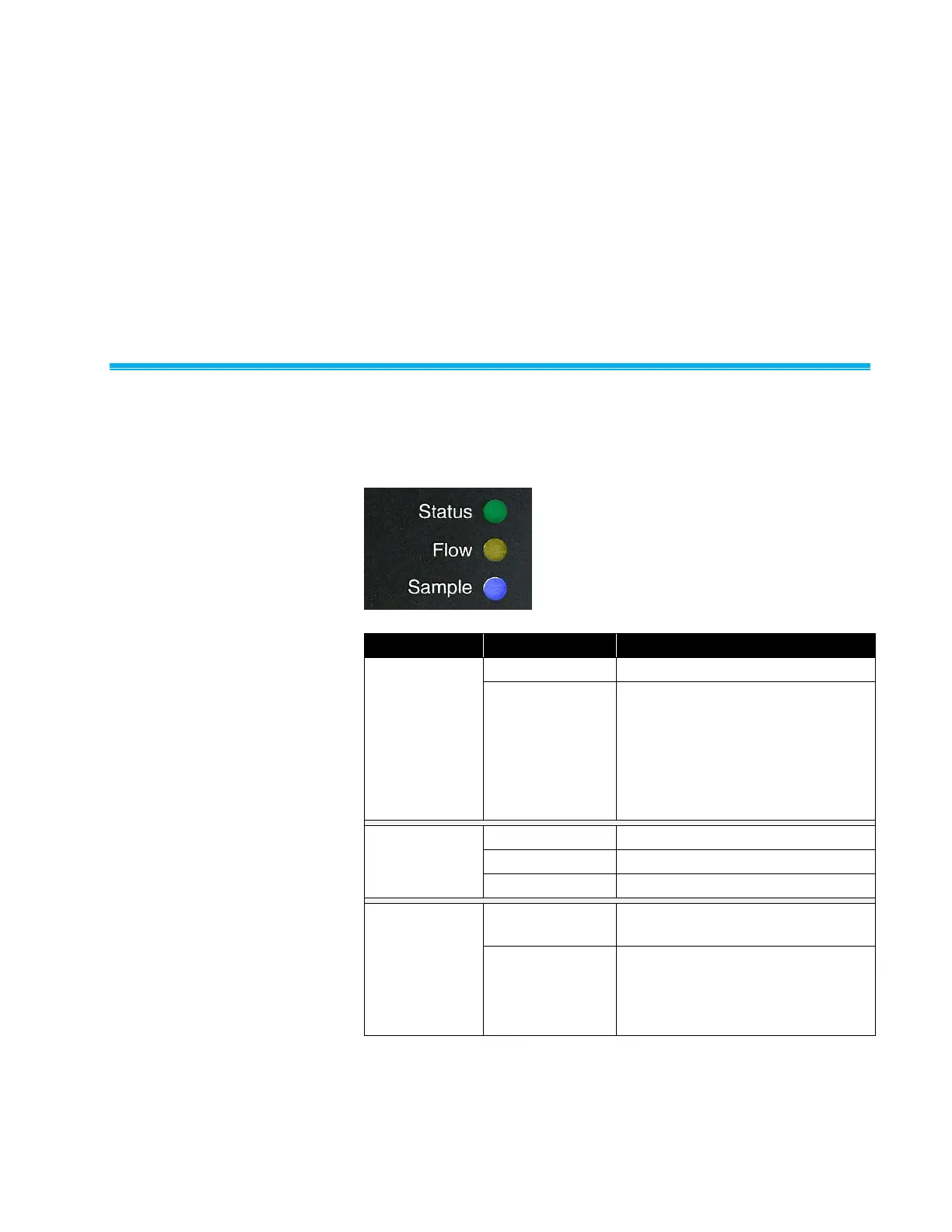

Indica t or LEDs
The three LEDs on the front of the Remote Particle Counter provide
indication of the particle counter’s operation as described in the
table below.
Indicator
Status
Function
Status
Green
No errors are detected.
Red
Device is in a service alert from 1 or
more of the following conditions:
• Laser current error
• Laser scatter error
• Flow error
• Calibration error
• Ambient condition error
Flow
Yellow—solid
Device flow is good.
Yellow—flashing
Device has a flow error.
Off
No flow detected.
Sample
Blue—solid
Device is sampling and no particles
are detected.
Blue—blinking
Blinking rate is indicative (a guide) of
particle count activity in real time.
NOTE: The maximum blinking rate is
50 times per second.
