TSM ARIA 240 - MACHINE COMPONENTS; Major Machine Parts Identification; CONTROLS AND INSTRUMENTS; Consolle and Handle Controls

ARIA 240 & 240 SUPER
OPERATING MANUAL V01
TSM - Technological Systems by Moro Srl
Via F.lli Zambon,9 - 33080 Fiume Veneto (PN) – Italy
Tel. +39.0434.564167 - Fax +39.0434.954069
www.tsmitaly.com – sales@tsmitaly.com
18

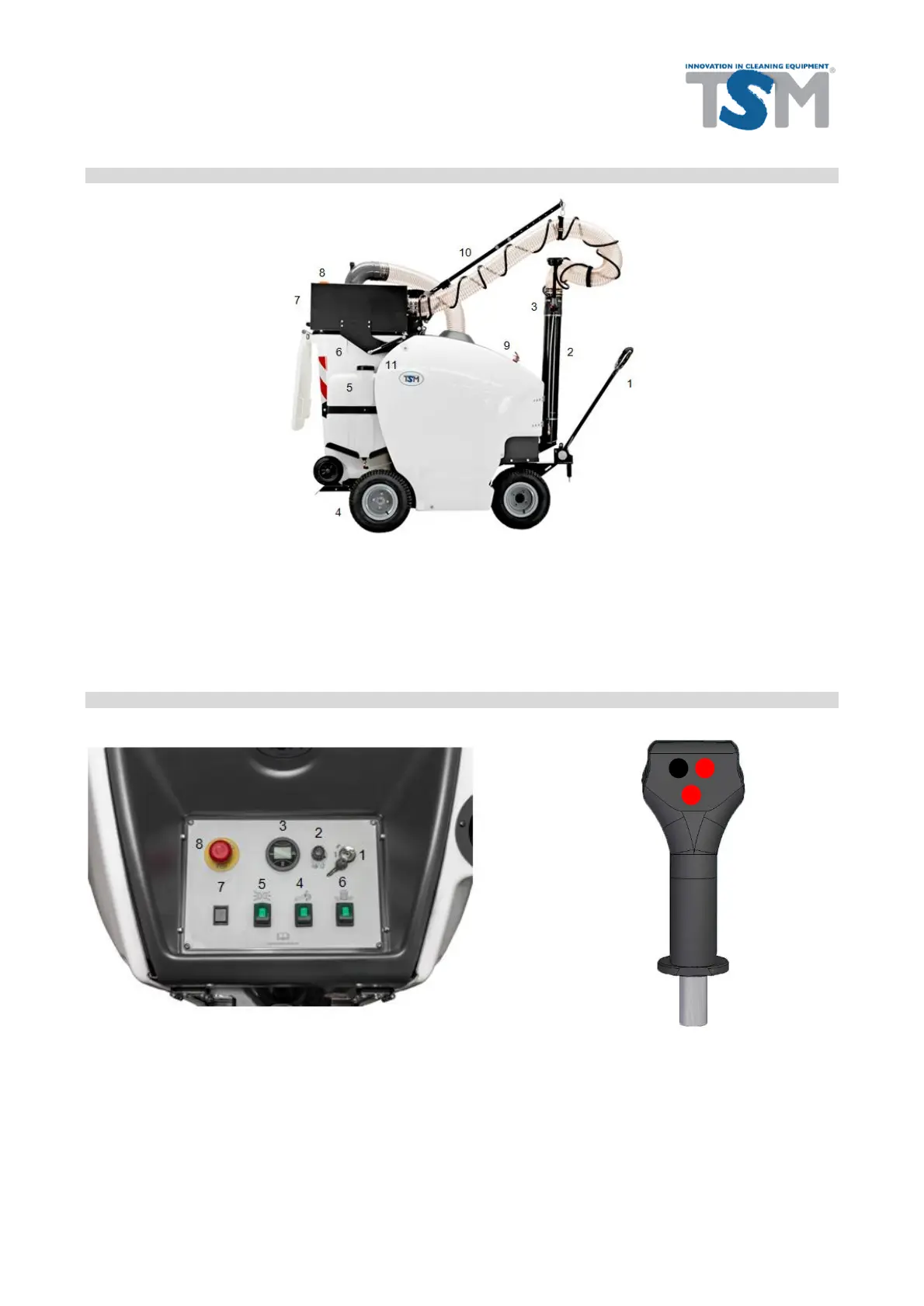

MACHINE COMPONENTS – VERSION 240 & 240 SUPER
CONTROLS AND INSTRUMENTS – VERSION 240 & 240 SUPER
Consolle Handle-control joystick
1
steering handle
7
Cartrifge filter compartment
2
Vacuum hose
8
Flashing lamp
3
Handle-control joystick
9
Extinguisher
4
Rear drive wheels
10
Support arm for the vacuum hose (only on 240 Super)
5
Water tank
11
Thermal switches
6
Hopper
1
On-off key-operated switch
7
-
2
Machine speed control
8
Emergency switch
3
Hour-meter/battery level indicator
9
Min/max vacuum power switch
4
Vacuum switch
10
Nebulizers switch
5
Working lights switch (optional)
11
Horn
6
Filter cleaning system switch (only on 240 Super)
4
5
6
7
8
3
2
1
9
9
10
11
