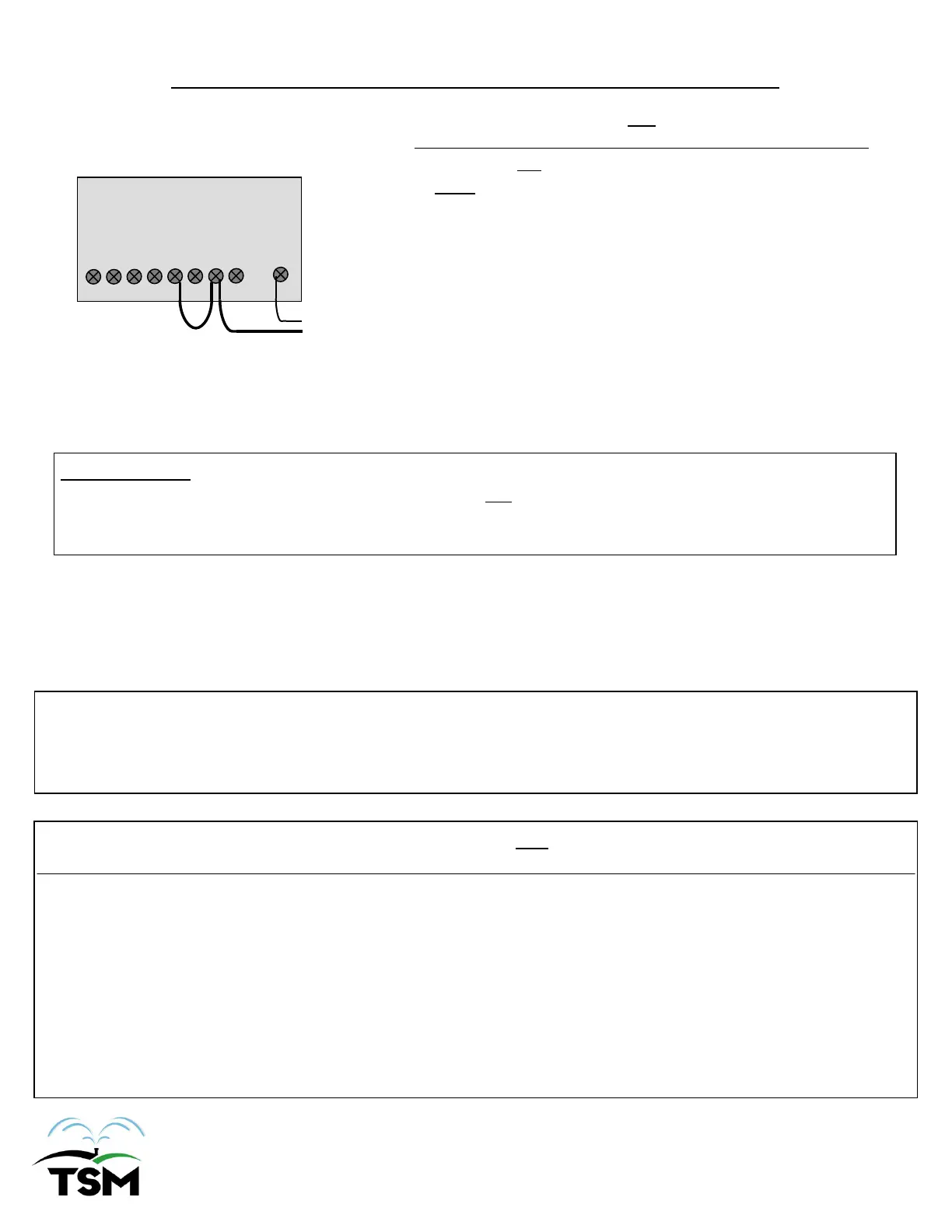

STEP 2 - INSTALLATION AT THE CONTROLLER - CONT’D
CONTROLLER
1 2 3 4 5 6 7 8
C
Example B
To
DOUBLER
2
PLEASE NOTE: Your DOUBLER
2
will water the valves in the following order: Red-Yellow-Blue-Gray.
If the incorrect valve is watering on a station, switch the last DOUBLER
2
’s station (i.e. Example A station 7)
on and off until the correct valve is watering. The next time the controller starts its cycle the correct valve will
be watering.
Thank you for purchasing the DOUBLER
2
! At TSM, quality is our highest priority. We appreciate the trust
that our customers have placed in our products and since 1985 have strived to provide the highest quality
products that will continue to serve our customers well into the future. When we build a product, the utmost
care goes into ensuring that it will work the first time…and every time. If you should have any questions about
this product, or any of our other products, please contact us.
TO TEST: If necessary, you may perform an operational test on DOUBLER
2
to ensure it is functioning properly. To test this unit:
1. Apply 24VAC to the black and white wires of the DOUBLER
2
.
2. With a meter, find the hot output by measuring between the white wire and each one of the output wires. You should read 24VAC out.
3. Switch the power to the DOUBLER
2
off and back on once and test between the white wire and the next output wire.
4. Repeat step 3 until you have cycled through all of the units outputs a few times to ensure it is working correctly.
After testing or servicing sprinkler systems, turn the last DOUBLER
2
station on and off until the
correct valve is watering. The controller will then activate all valves in the order you chose.
ONE YEAR LIMITED WARRANTY
TRANSITIONAL SYSTEMS MANUFACTURING INC., hereinafter referred to as the manufacturer, warrants its products including, but not limited to, those manufactured to
specifications supplied to it, for a period of one year from the date of delivery to (a) distributor’s vendee, or (b) purchaser other than distributor buying directly from manufacturer,
to be free from defects in workmanship and materials. Any defect appearing more than one year from the date of delivery to purchaser shall be deemed to be due to ordinary
wear and tear. Manufacturer, however, assumes no risk or liability for results of the use of the products purchased from it, including but without limiting the generality of the
foregoing: (1) the use in combination with any electrical or electronic components, circuits, systems, assemblies or any other materials or substances; (2) unsuitability of any
product for use in any circuit or assembly or environment. Purchaser’s rights under this warranty shall consist solely of requiring manufacturer to repair, or in manufacturer’s sole
discretion replace, free of charge, F.O.B. factory, any defective items received at said factory within said year and determined by manufacturer to be defective. The giving of or
failure to give any advice or recommendation by manufacturer shall not constitute liability of the manufacturer, AND IS IN LIEU OF ANY AND ALL OTHER WARRANTIES
EXPRESSED, IMPLIED, OR STATUTORY AS TO MERCHANTABILITY, FITNESS FOR PURPOSE SOLD, DESCRIPTION, QUALITY, PRODUCTIVENESS, OR ANY OTHER
MATTER. In no event shall manufacturer be liable for special or consequential damages or for delay in performance of this warranty. Some states do not allow the limitation or
exclusion of incidental or consequential damages and some states do not allow limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s)
may not apply to the purchaser.
Transitional Systems Mfg., Inc. P.O. Box 3449 Yuba City, CA 95992
transitionalsystems.com
n
tsm@transitionalsystems.com
Phone (530) 751-2610
n
Fax (530) 751-2512
TSM 2009
OR
(ALTERNATE METHOD OF WIRING AT CONTROLLER)
If you do not have four stations open in your controller
AND your controller has multiple programs (i.e. A & B):
1. Connect a jumper wire between two (2) stations in
your controller you wish to use to control your valves.
(On solid state controllers these stations should not
be in sequence.) See Example B.
2. Set time on these two stations on both program A and
program B. Your valves will operate according to the
time set on these stations.
You have now installed your DOUBLER
2
.
