TTI 1604 - Calibration; Calibration Settings and Adjustments

Calibration
Only the case upper needs to be removed for calibration; the screens should be kept in place.

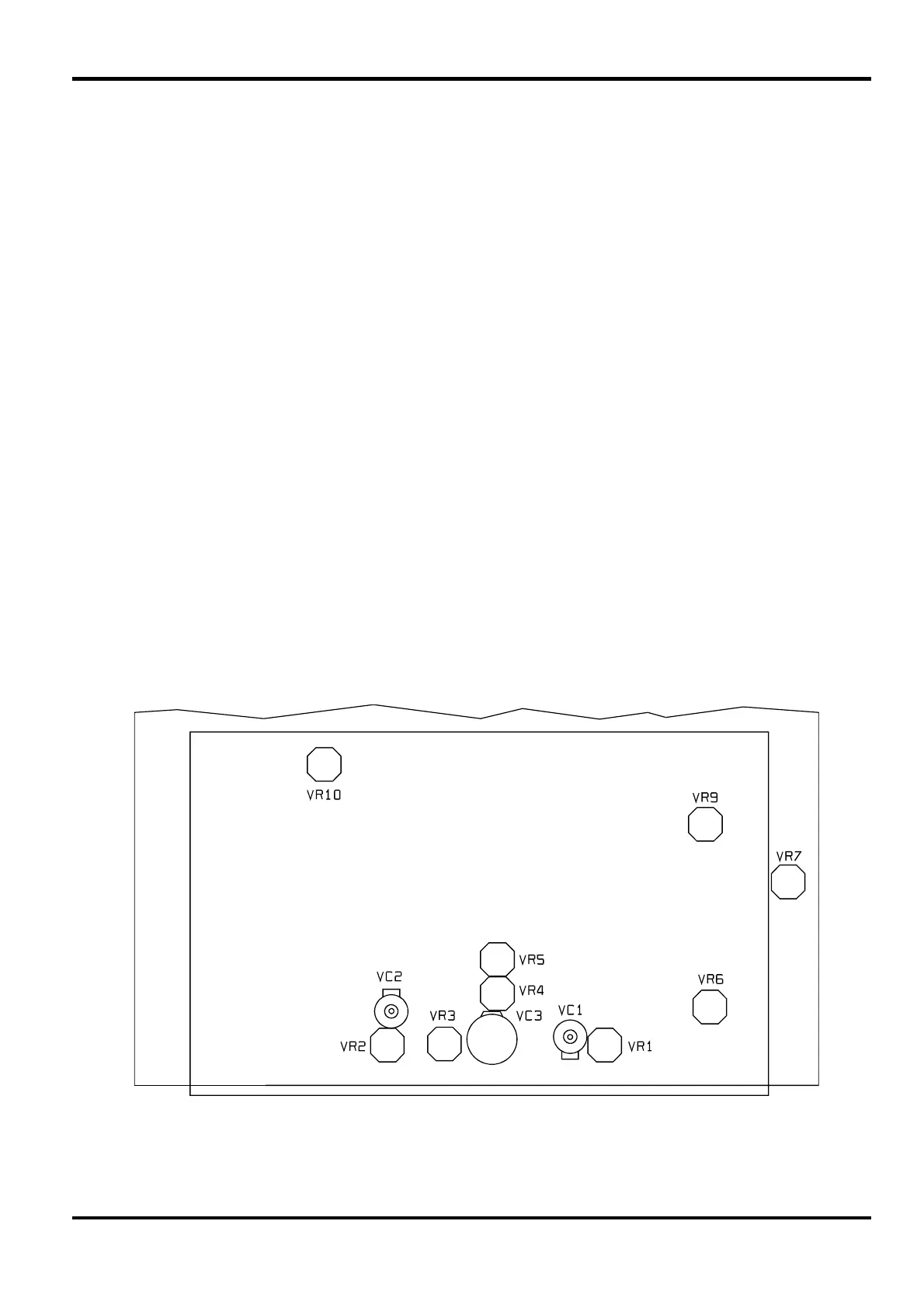

Range Apply Adjust
mVDC +300mV VR9 for 300.00 ± 2 digits
10kΩ 10kΩ
VR3 for 10.000 ± 2 digits
30VDC +30V VR1 for 30.000 ± 2 digits
3VDC +3V VR2 for 3.0000 ± 2 digits
300VDC +300V VR4 for 300.00 ± 2 digits
1000VDC +1000V VR5 for 1000.0 ± 2 digits
3mADC +3mA Check for 3.0000 ± 28 digits
300mA +300mA VR7 for 300.00 ± 5 digits
10A +1A VR6 for 1.000
400mVAC 200mV 60Hz VR10 for 200.0 ± 2 digits
400VAC 200V 1kHz VC1 for 200.0 ± 2 digits
4VAC 2V 4kHz VC2 for 2.000 ± 2 digits
40VAC 20V 1kHz VC3 for 20.00 ± 2 digits
Accuracy of frequency measurement is determined by the CPU crystal which has greater
accuracy than the display resolution and therefore does not require calibration.
11
