7
36
33
53
60
A
B
C
D
E
53
40
61
61
7
36
33
53
60
A
B
C
D
E
53
40
61
61

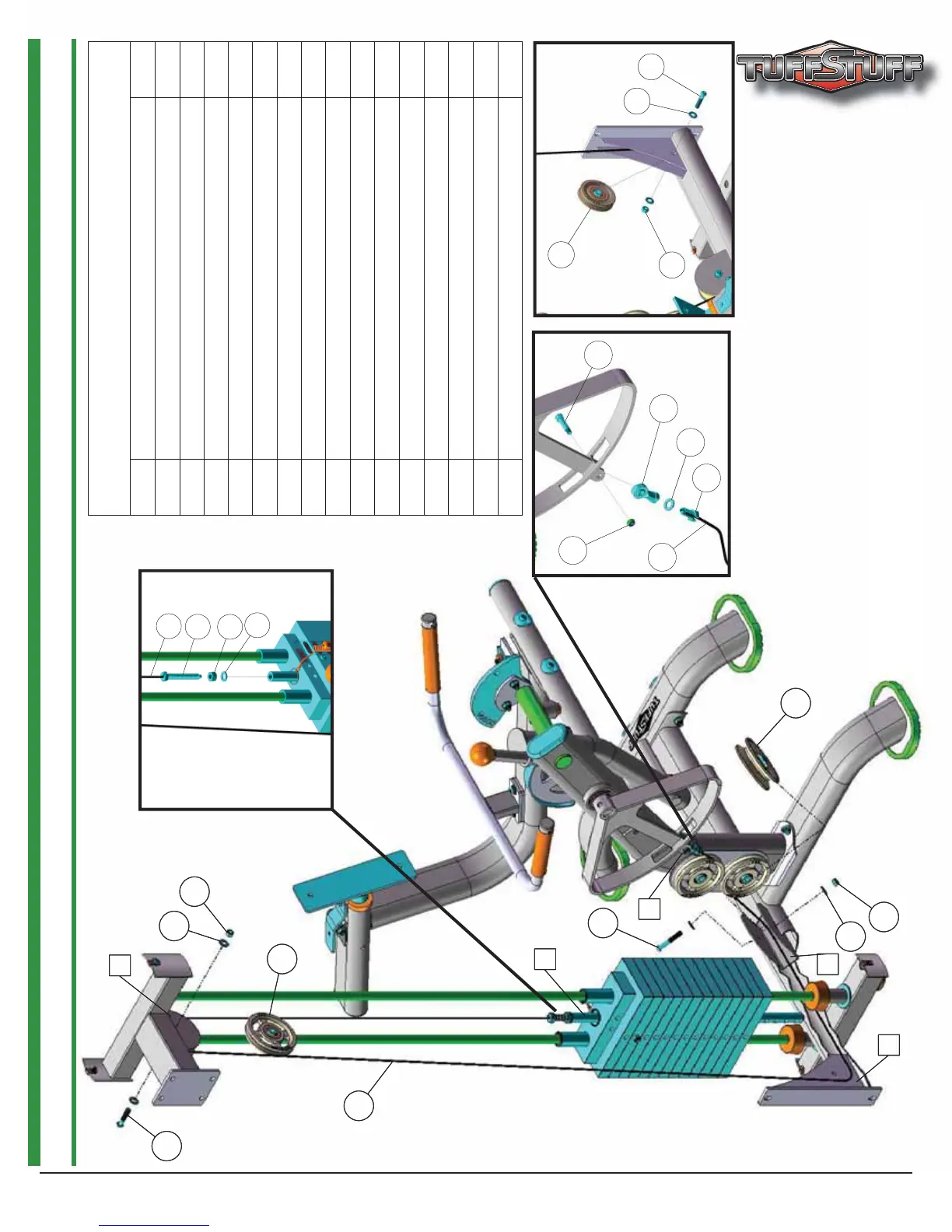

11AP-7000 SERIES LEG PRESS STATION
Assembly List
Item # Description Qty.
7 CABLE 1
33 BLACK NYLON PULLEY 3/8 X 1 1/2 X 4 1/2 1
36 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 2 1/4 1
40 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 1 3/4 2
51 FINISHED HEX NUT N/P 1/2-13 1
53 FLAT WASHER SAE N/P 3/8” 4
59 SHOULDER BOLT N/P 3/8 X 1 1/8 1
60 NYLON INSERT LOCK NUT N/P 3/8-16 2
61 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK 1
66 ROD END 1/2-13 (3/8 HOLE) 1
76 SPLIT BOLT GR-8 N/P 1/2-13 X 1 1
77 SPLIT HEX TAP BOLT GR-8 N/P 1/2-13 X 3 1/2 1
78 SPLIT LOCK WASHER N/P 1/2” 2
86 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 1
89 NYLON INSERT LOCK NUT N/P 5/16-18 1
STEP 7 LEG EXT/CURL CABLE ASSEMBLY
89
66
78
7
59
76
89
66
78
7
59
76
51
7
77
78
51
7
77
78
NOTES:
1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
60
53
40
86
60
53
40
86
To Next Page
