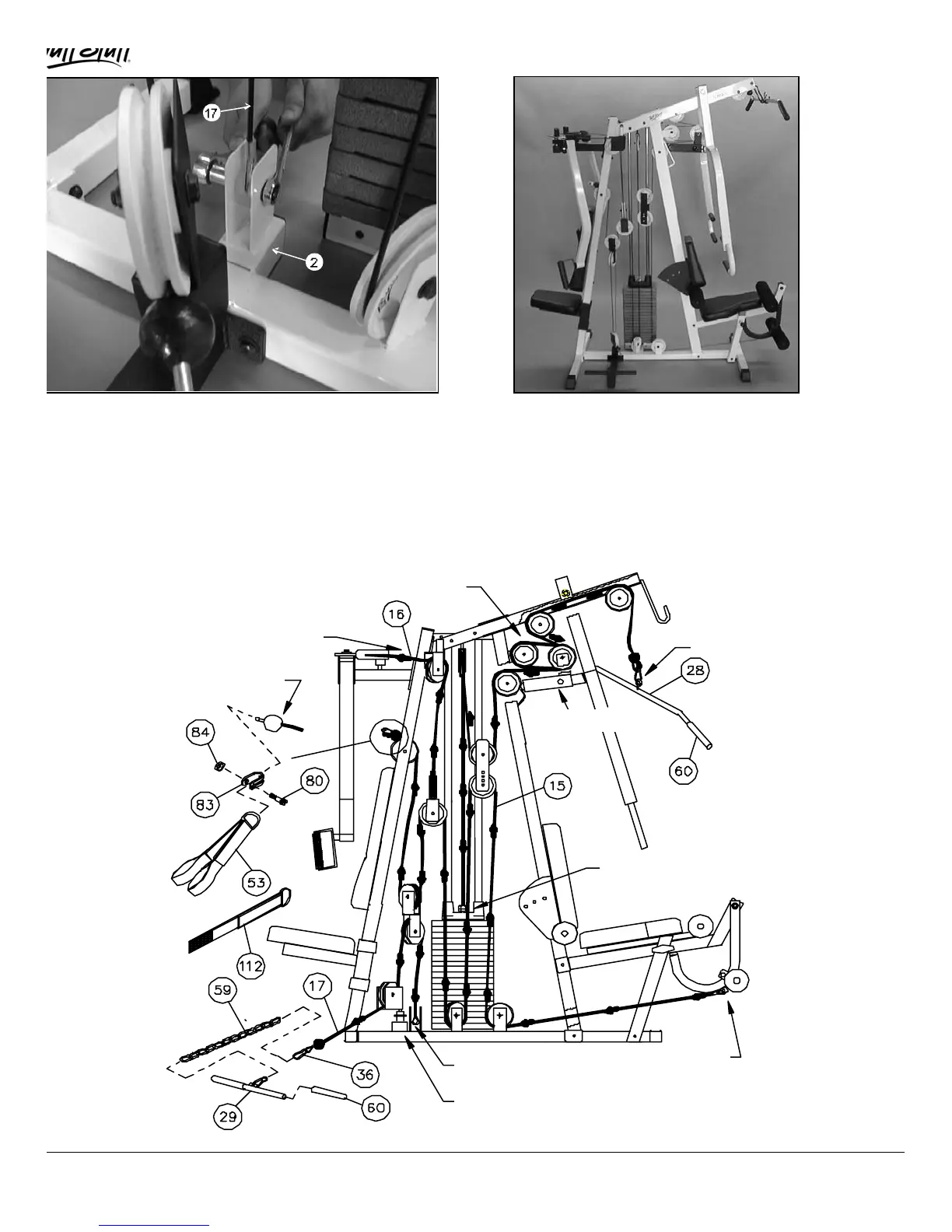

IG. 61 Finally, coonect the end of the Low Row Cable
#17) to the empty pulley bracket located on the Base Frame
#2) and secure it using one Hex Head Cap Screw 3/8-16 X 1
/4 (#79), two Flat Washers SAE 3/8 (#90), two Nylon
pacers 3/8 X 3/8 (#72) and one Nylon Insert Jam Lock Nut
/8-16 (#86). Refer to Fig. Gon page 18 for further detailed
llustration of this assembly.
FIG. 62 This completes the assembly of the MSL-IV. It is
recommended that you check and secure all the hardware
assemblies and inspect all cable routing for proper tension and
assembly.
See Fig. B
Fig. I
Note:Some Parts
Not Shown or cut
away for clarity
See Figure A
See Figure B
See Figure D
See Figure D
See Figure E
See Figure F
See Figure G, H
See Figure G, H
See Figure C
MSL-IV Muscle IV Home Gym
