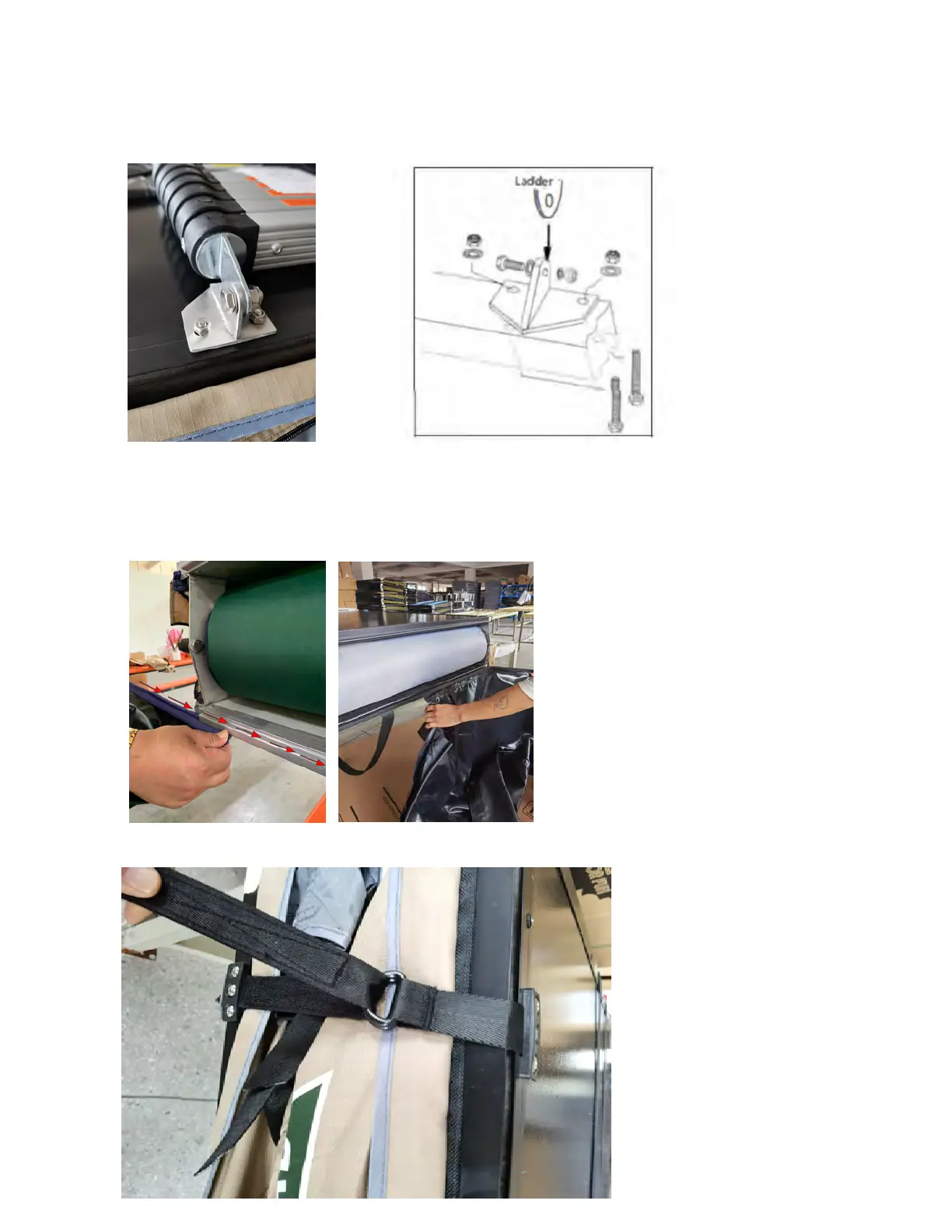

Attach the brackets to the ladder by threading the 40 mm Steel M6 bolt through a steel washer,

the lateral side of the ladder bracket, the rubber washer, and the hole in the ladder, followed by a

nylock nut.

Driving Cover Attachment

1. To attach the travel cover, slide the rounded fabric end of the cover into the rounded C-channel at the

hinge side of the tent base. Make sure the cover is oriented, so the exterior side of the cover faces up when

you pull the cover over the tent

2. Fasten the Velcro straps on either side of the tent to hold the canopy in place

INSTRUCTION 7 PICTURE
