ACS-100 Free Movement Adjustable Cable System
Assembly Manual
Step 14 Cable Adjustment
41
5
41
21
24
21
24
71
29
91
41
15

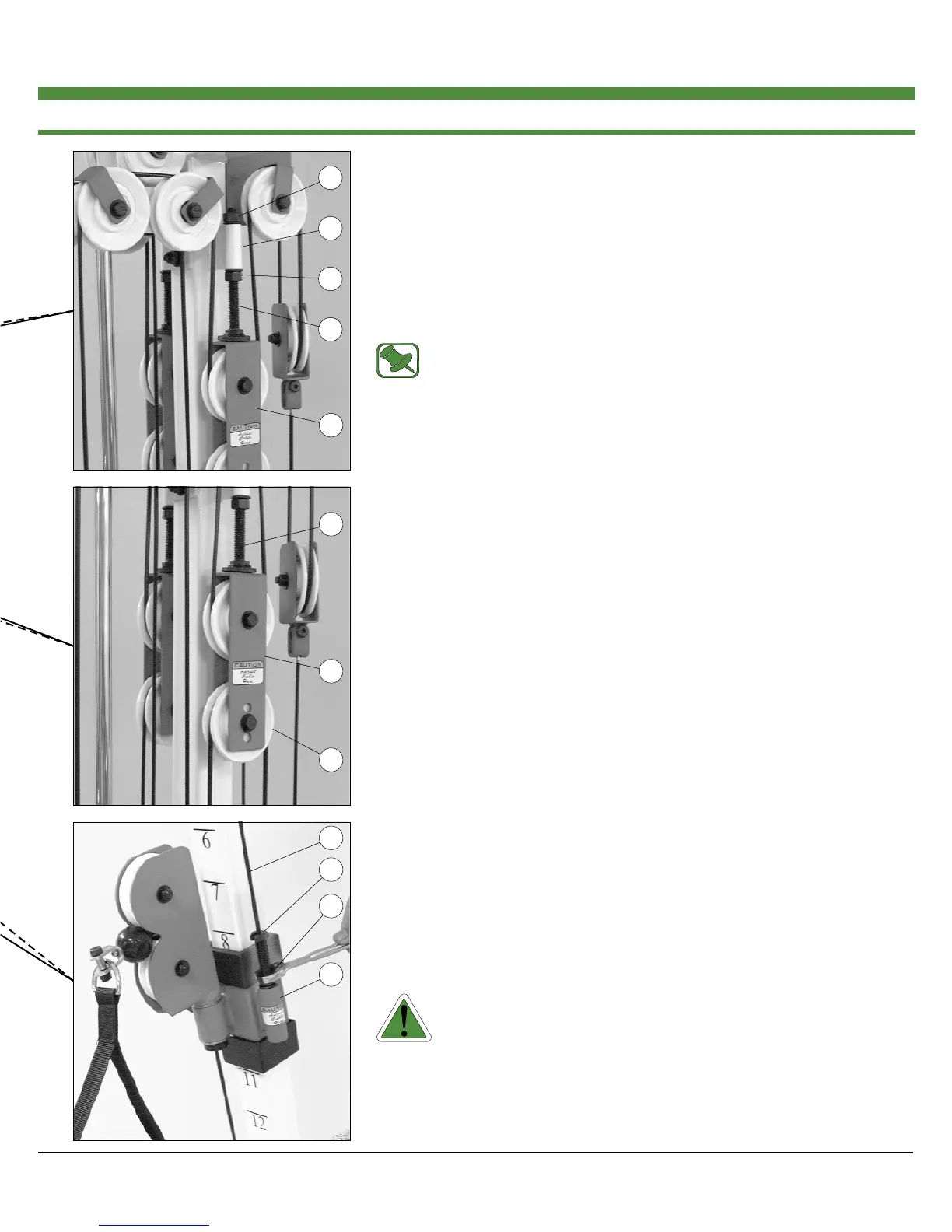

Major Cable Adjustment:
1. Remove the hardware from the Nylon Pulley (#71) located at one of
the three holes on the Closed-end Adjustable Pulley Brkt (#24).
2. By interchanging the Nylon Pulley (#71) within the Closed-end
Adjustable Pulley Brkt (#24) to the next adjustment hole it will
make one-inch cable adjustment
.
3. Re-tighten the hardware for the Nylon Pulley (#71) to complete the
adjustment.
Minor Cable Adjustment:
1. Loosen the Finished Hex Nut (#41).
2. Thread the Split Hex Tap Bolt 1/2-13 X 3 1/2 (#91) in or out of the
threaded socket of the Carriage (#15) to give the cables proper
tension.
3. Re-tighten the Finished Hex Nut (#41) to complete the adjustment.
Caution: Make sure the Split Hex Tap Bolt 1/2-13 X 3
1/2 (#91) is threaded at least 1/2” into the threaded socket
of the Carriage (#15) once the cable adjustment has been
completed.
Adjustment for:
Adjustable Stoppers (#21)
1. Loosen both Finished Hex Nuts (#41).
2. Adjust the Adjustable Stopper (#21) to make contact with the
Closed-end Adjustable Pulley Brkt (#24).
3. Re-tighten both Finished Hex Nuts (#41) to complete the
adjustment.
Note: Be sure the Closed-end Adjustable Pulley Brkt (#24)
is making contact with the Adjustable Stopper (#21).
