Assembly Manual
ACS-100 Free Movement Adjustable Cable System
Assembly List
Item # Description Qty.
1 BASE FRAME 1
44 FLAT WASHER SAE B/O 3/8” 4
54 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 2 3/4 2
69 NYLON INSERT JAM LOCK NUT B/O 3/8-16 2
73 PLASTIC END CAP W/GROOVE 3 X 2 1
A. Using a rubber mallet, insert one Plastic End Cap 2 X 3 (#73) onto the tube-end of the Base Frame (#1).
B. Assemble two Hex Head Cap Screws 3/8-16 X 2 3/4 (#54) to the Base Frame (#1) using four Flat Washers SAE
3/8” (#44), and two Nylon Insert Jam Lock Nuts 3/8-16 (#69).
Note: Use the overhead view on the cover page for designing your layout before assembling.

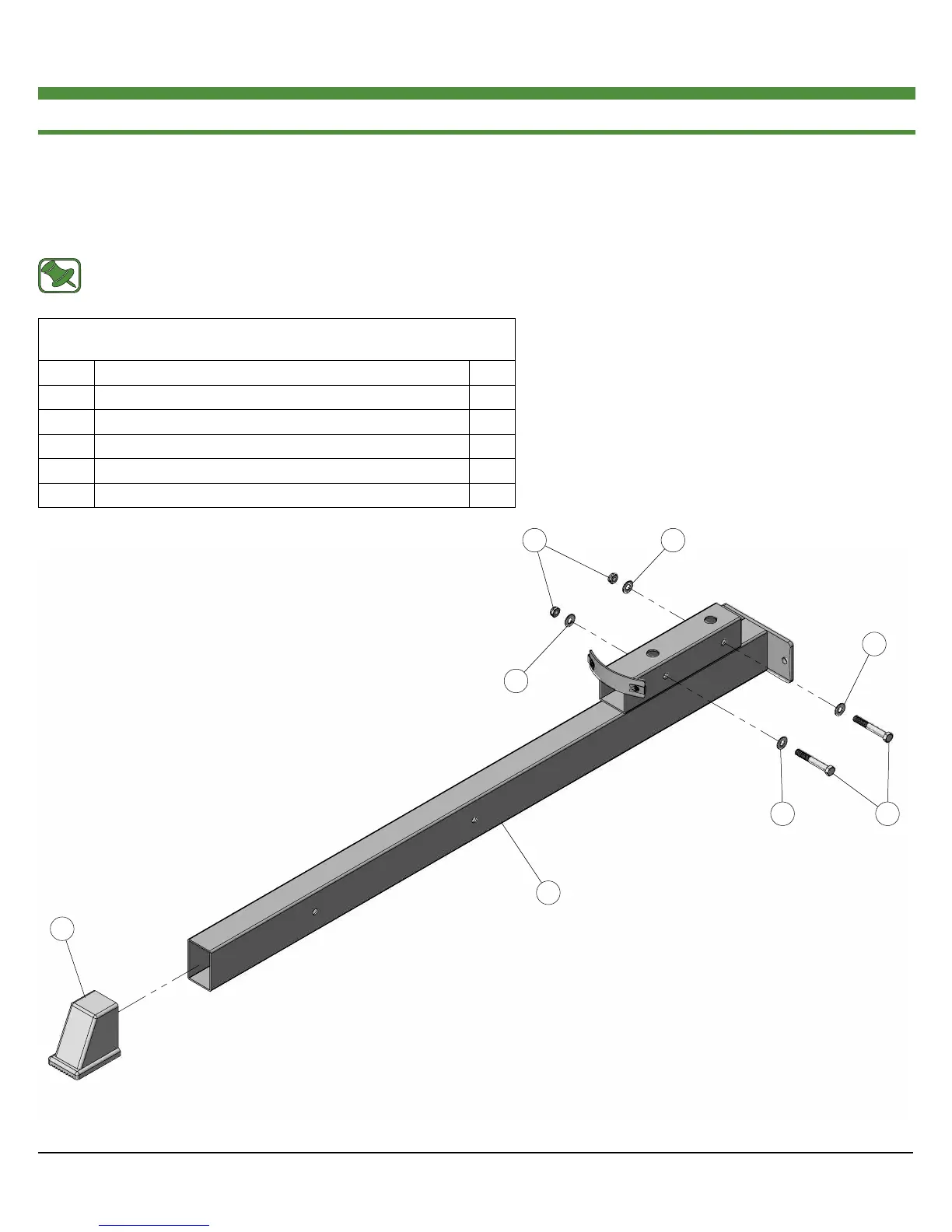

Step 1 Base Frame Assembly
69 44
44
5444
44
1
73
