TuffStuff Apollo 7000 Series - Step 9 Lat Cable Final Step

48
64
51
77
64
36
77
66
78
48
64
51
77
64
36
77
66
78
13

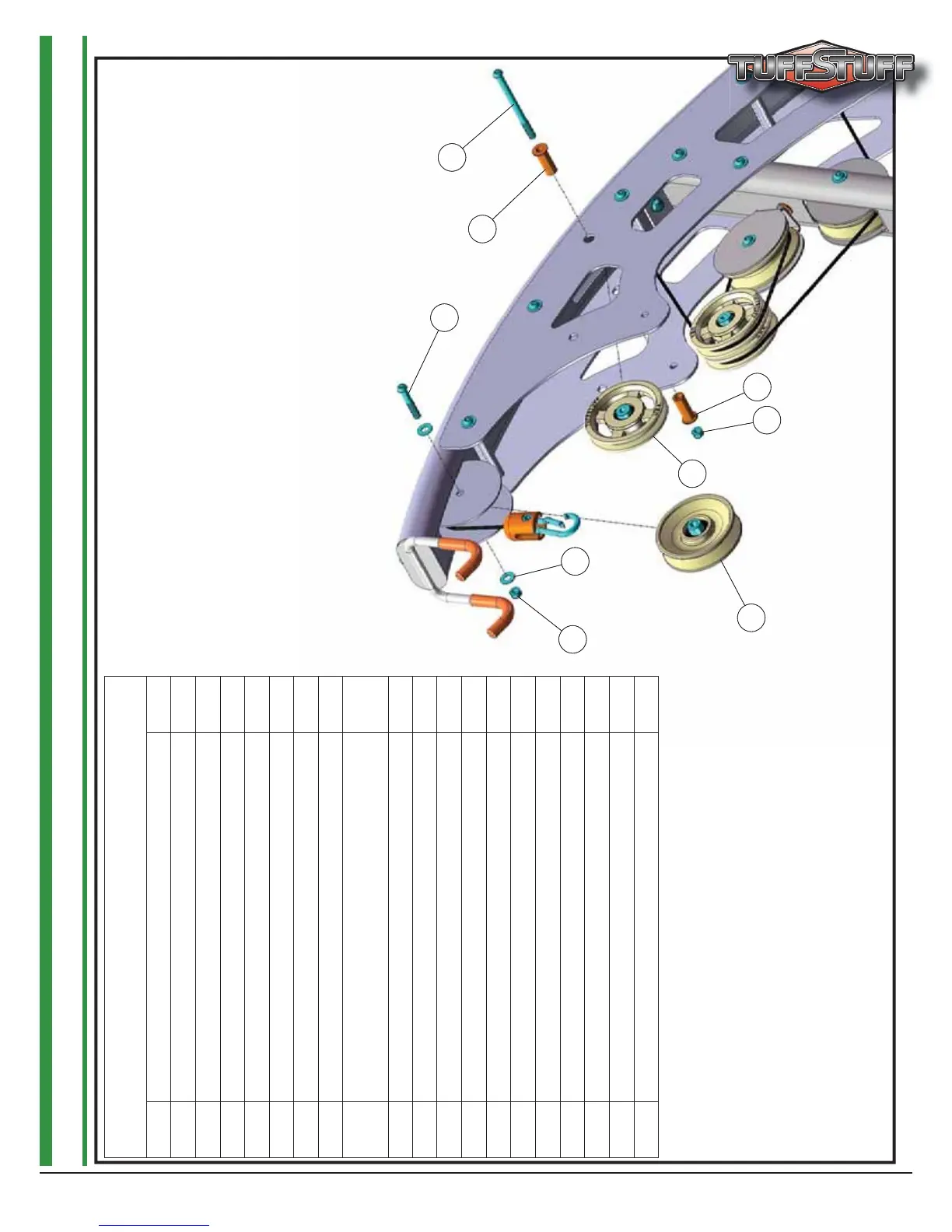

STEP 9 LAT CABLE FINAL STEP
NOTES: 1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
AP-7000 SERIES MULTI PRESS STATION
Step 8 and 9 Assembly List
Item # Description Qty.
8 DOUBLE PULLEY PLATE (3 1/2 PULLEY) 2
15 LAT CABLE 1 36 BLACK NYLON PULLEY 3/8 X 1 1/2 X 4 1/2 1 48 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 2 1/4 1 51 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 5 1 52 COIL CHAIN N/P 3/16 X 12” LONG 1 63 FINISHED HEX NUT N/P 1/2-13 1 64 FLANGED SPACER N/P 0.406 X 0.63 X 1.750
(1.6875) X 0.0799
2
66 FLAT WASHER SAE N/P 3/8” 2 70 HARD PVC CABLE STOPPER 1 1/2 RD X 2 1 71 LAT BAR 1 1/4 ALUMINUM 1 77 NYLON INSERT LOCK NUT N/P 3/8-16 2 78 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK 1 79 PLASTIC INSERT CAP 1 1/4” RD 11 GA 2 93 SHOULDER BOLT N/P 3/8 X 3/4 1 94 SNAP LINK N/P 8MM X 80MM 2
102 SPLIT HEX TAP BOLT GR-8 N/P 1/2-13 X 3 1/2 1 103 SPLIT LOCK WASHER N/P 1/2” 1 105 STRAP BRACKET 20 #SF20 STAINLESS STEEL 1
