TuffStuff Apollo 7000 Series - Step 10 Tension Cable Assembly

24
9
24
9

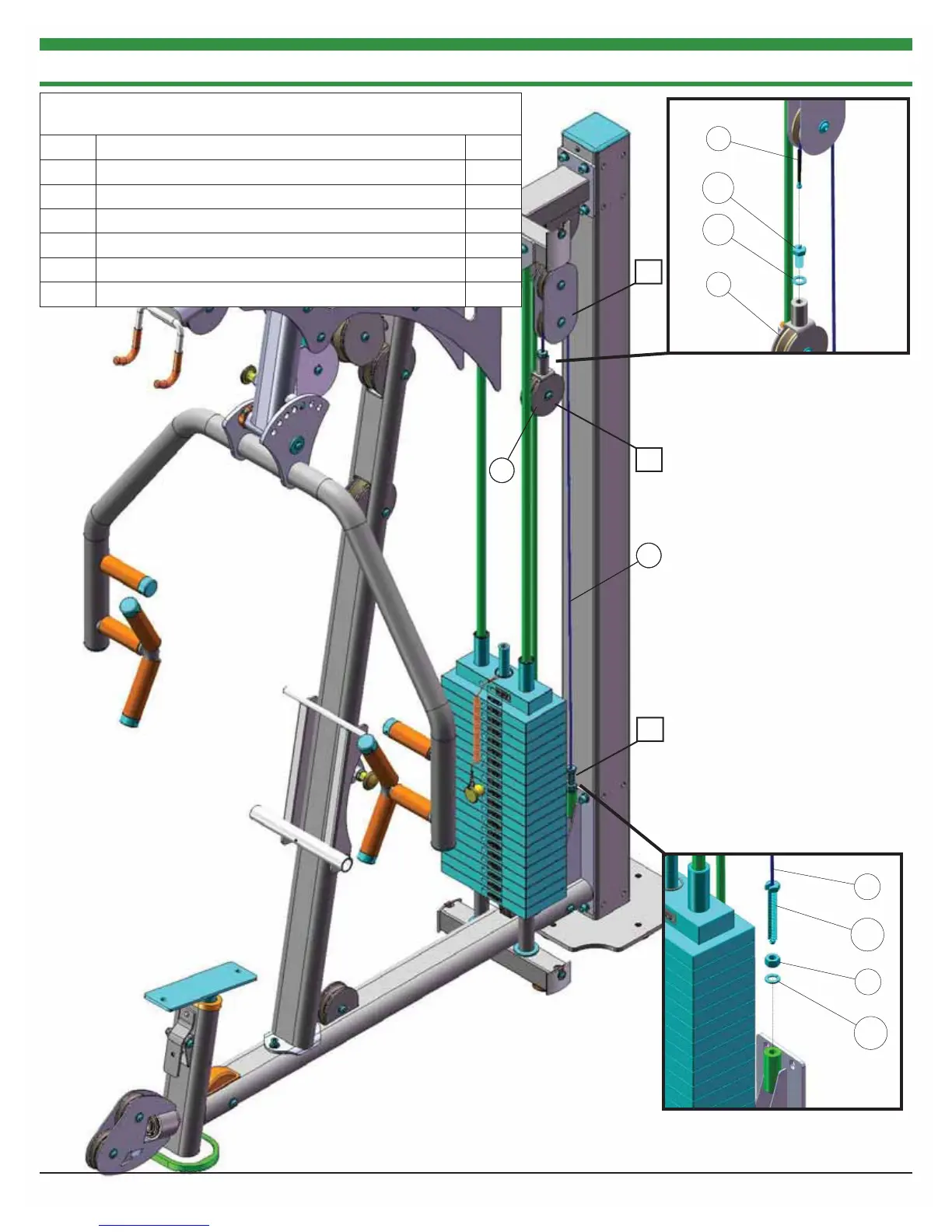

STEP 10 TENSION CABLE
103
63
24
102
103
63
24
102
103
24
101
9
103
24
101
9
NOTES:
1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
2. LETTERS INDICATE HOW TO RUN THE CABLE.
AP-7000 SERIES MULTI PRESS STATION14
Assembly List
Item # Description Qty.
9 FLOATING PULLEY BRACKET (3 1/2 PULLEY) 1
24 TENSION CABLE 1
63 FINISHED HEX NUT N/P 1/2-13 1
101 SPLIT BOLT GR-8 N/P 1/2-13 X 1 (RND CUT) 1
102 SPLIT HEX TAP BOLT GR-8 N/P 1/2-13 X 3 1/2 1
103 SPLIT LOCK WASHER N/P 1/2” 2
A
B
C
