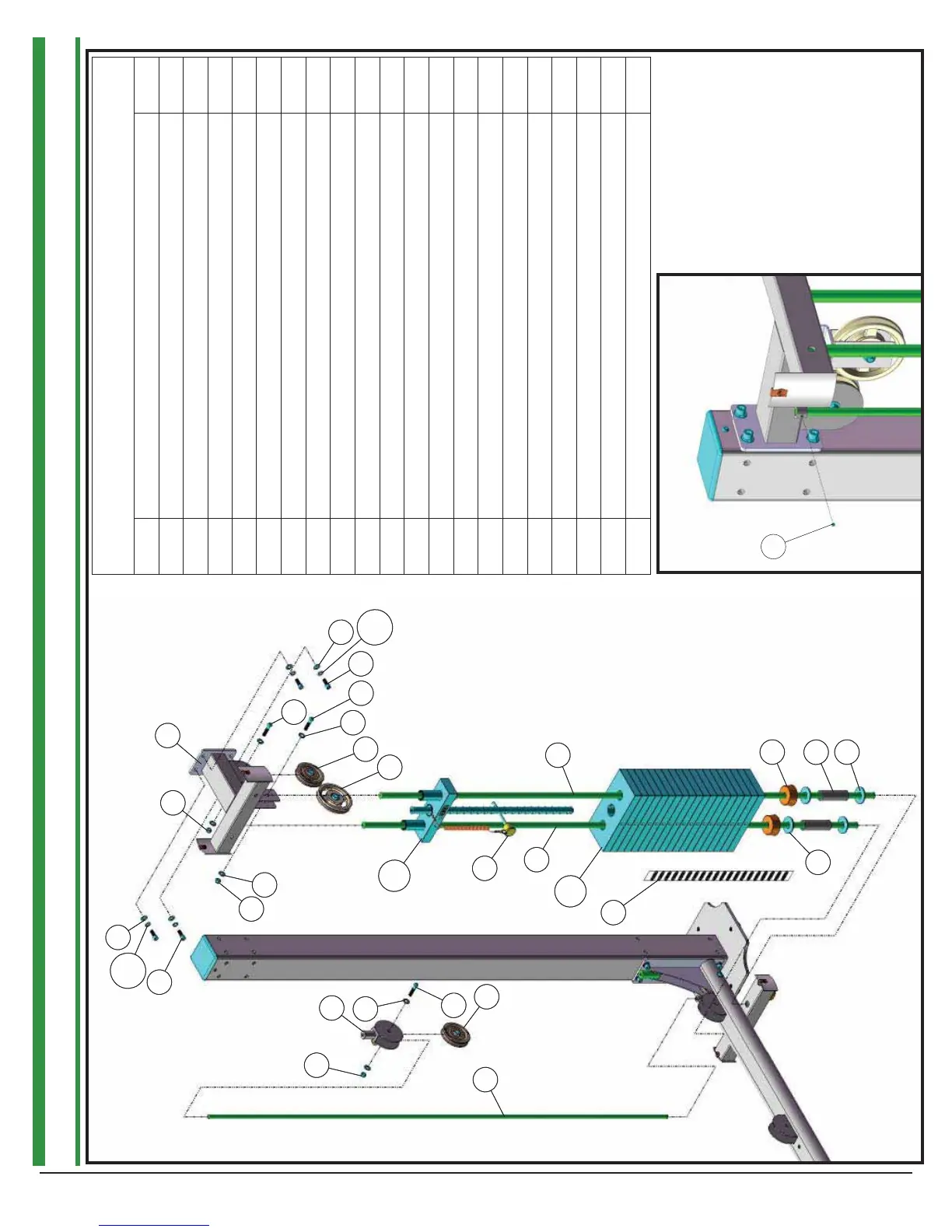

TuffStuff Apollo 7000 Series - Step 4 Assembly

A8
A10
A7
A7
A10
A8
38
78
46
66
77
66
77
21
13
13
112
111
88
22
68
68
46
27
77
9
66
46
38
30
62
A8
A10
A7
A7
A10
A8
38
78
46
66
77
66
77
21
13
13
112
111
88
22
68
68
46
27
77
9
66
46
38
30
62
8 AP-7000 SERIES MULTI PRESS STATION
Assembly List
Item # Description Qty.
A7 SOCKET CAP SCREW GR-8 N/P 3/8-16 X 1 4 A8 FLAT WASHER SAE N/P 3/8” 4
A10 SPLIT LOCK WASHER N/P 3/8” 4
9 FLOATING PULLEY BRACKET (3 1/2 PULLEY) 1
13 GUIDE RODS 2 21 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 1 22 SPACER 1 1/4 OD X 1 ID X 3 3/4 2 27 TOP GUIDE ROD HOUSING 1 30 GUIDE ROD 1/2 RD X 66 3/4 1 38 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 2 46 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 1 3/4 3 62 DECAL-WEIGHT NUMBERS REF TP-10 (200 lbs) 1 66 FLAT WASHER SAE N/P 3/8” 6 68 FLAT WASHER N/P 3/4 X 2 4 77 NYLON INSERT LOCK NUT N/P 3/8-16 3 78 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK 1 88 RUBBER DONUT 3/4 X 2 1/2 2 99 SOCKET SET SCREW N/P 10-32 X 1/8 1
111 10 LB STEEL WEIGHT PLATE BLACK 4 9/16 X 9 7/16 19
112 10 LB TOP PLATE W/ADJ SLTR BAR 19 BLK WTS 1
STEP 4
