TuffStuff CSM-600 - Page 14

*1
35
37
31
35
37
31
78
78
35
37
31
7
31
37
35
*2
78
78
78

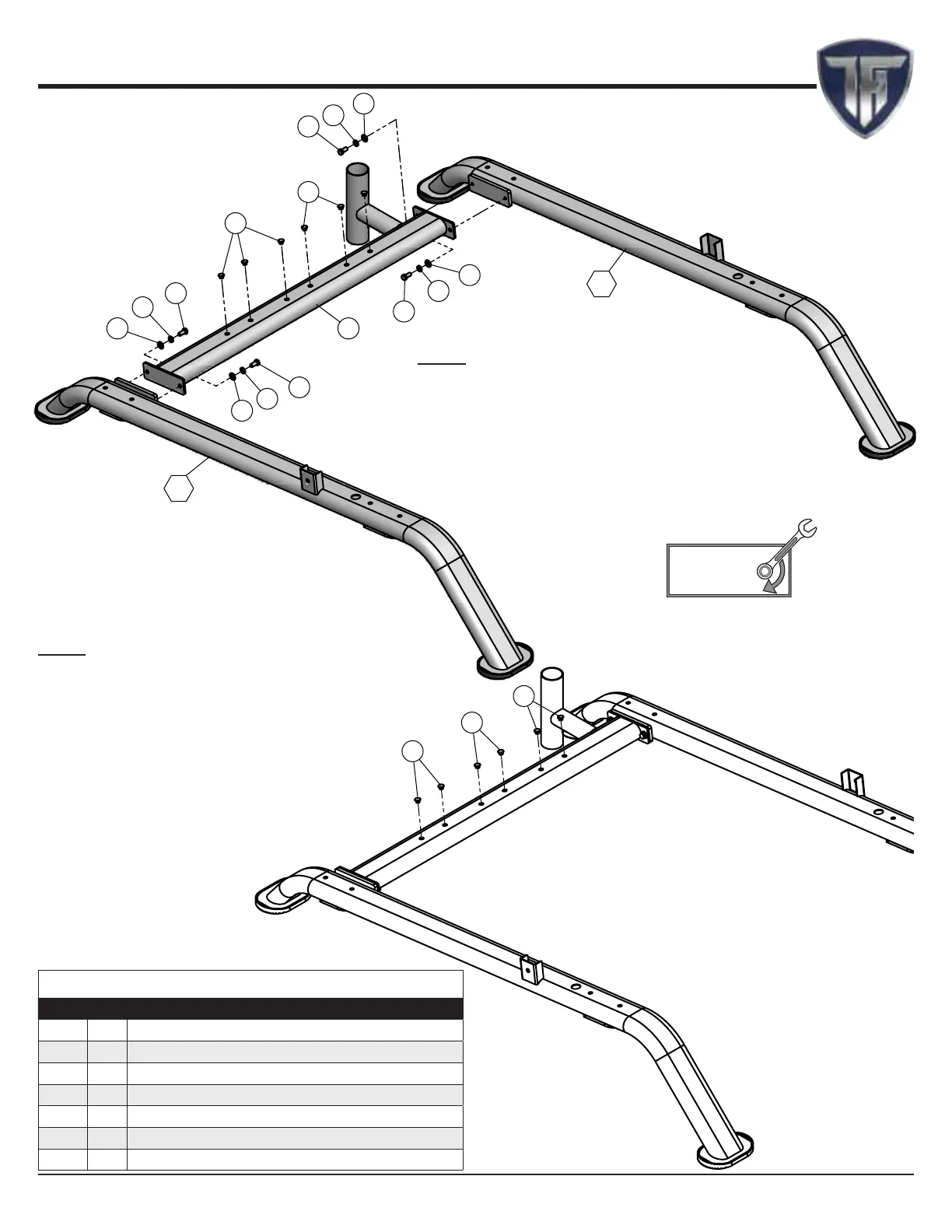

Step 1
Step 1 Assembly List
Item Qty. Description
*1 1 BOTTOM SIDE FRAME LT ASSEMBLY
*2 1 BOTTOM SIDE FRAME RT ASSEMBLY
7 1 BOTTOM CROSS BRACE
31 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3/4
35 4 FLAT WASHER SAE Z/P 3/8”
37 4 SPLIT LOCK WASHER B-Z/P 3/8”
78 6 NYLON SNAP-IN FINISHING PLUG 3/8”
Note:
If you are Assembling the CHL-610WS High/
Low Pulley w/200 lbs Weight Stack to the
CSM-600, skip the assembly of the NYLON
SNAP-IN FINISHING PLUG 3/8” (#78)
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
Note:
It is strongly recommended that two
people participate in this assembly step.
14 CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
