Step 2

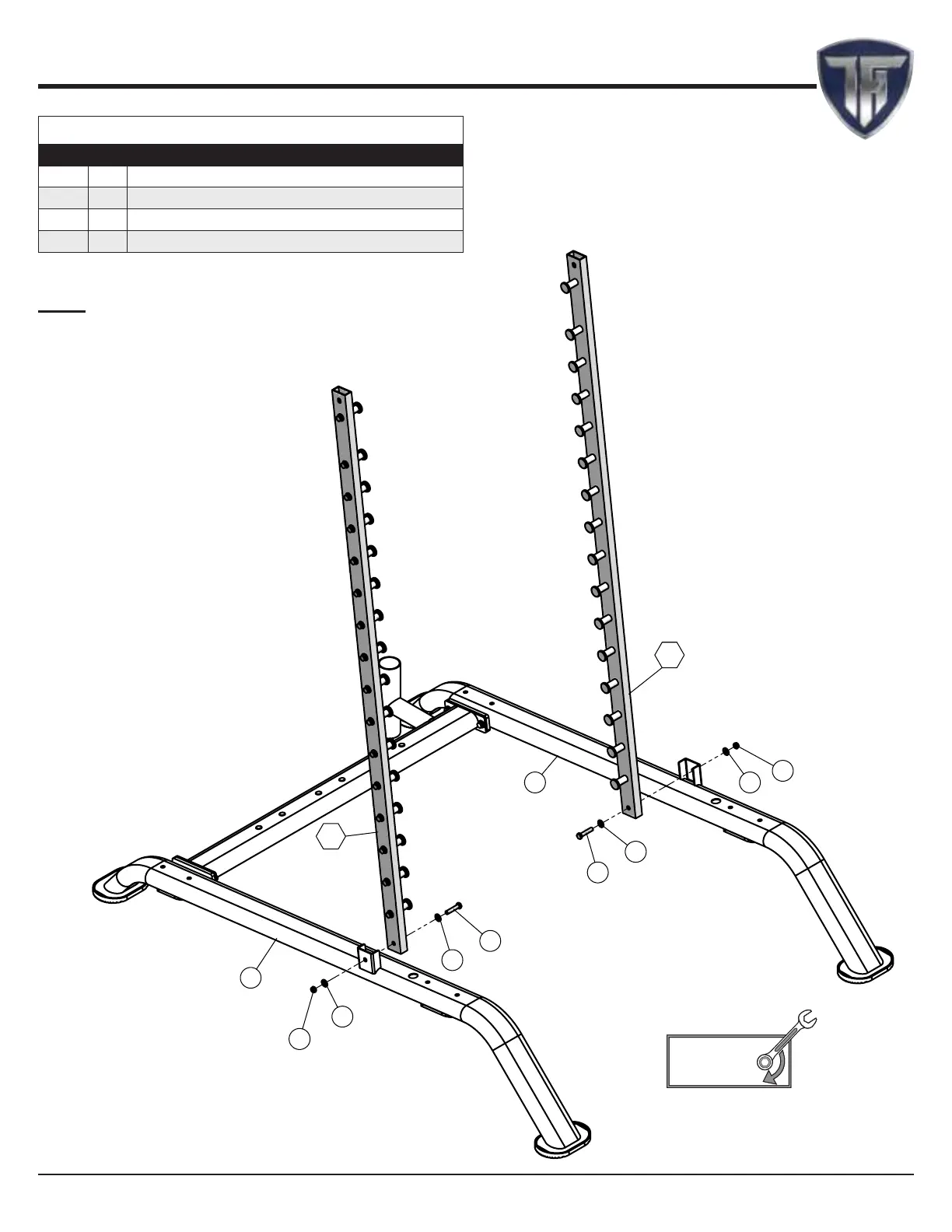

Step 2 Assembly List
Item Qty. Description
*12 2 SAFETY STOPPER POST ASSEMBLY
30 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4
35 4 FLAT WASHER SAE Z/P 3/8”
39 2 NYLON INSERT JAM LOCK NUT Z/P 3/8-16
70%
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
Note:
It is strongly recommended that two
people participate in this assembly step.
15CSM-600 Basic Smith Machine/Half Cage Combo w/Safety Stoppers
www.tuffstuftness.com
To Next Page
