Fold-out Page 7RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack

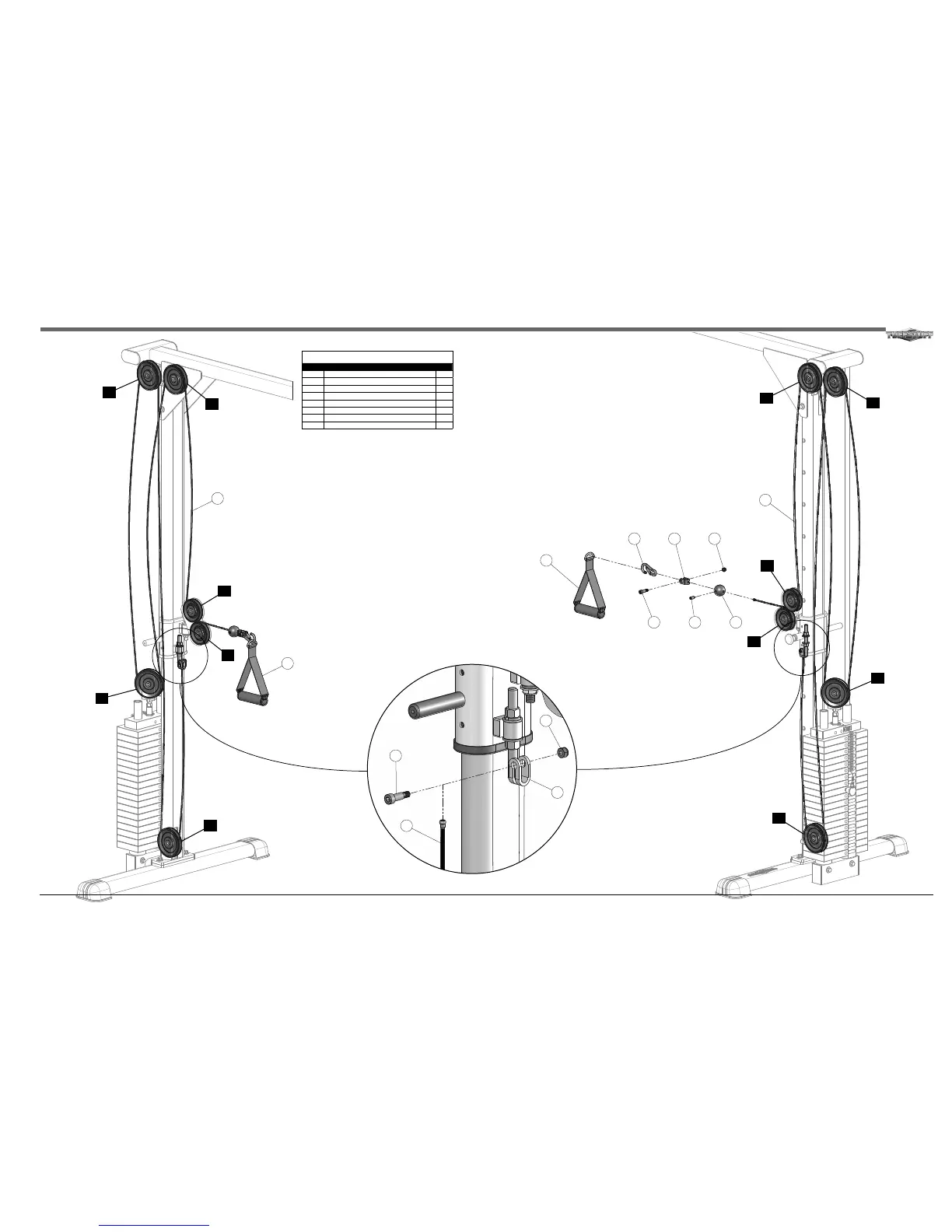

RCO-140WS Cable Routing Diagram
42
56
4
45
1
42
57 62 45
4
415956
4
B
D
A
F
C
E
E
C
F
A
B
D
Step 7 Assembly List
Item # Description Qty.
4 CROSSOVER CABLE 2
41 NYLON BALL 1 3/4 X 5/16 2
42 NYLON D HANDLE (# H834A) 2
45 NYLON INSERT LOCK NUT 5/16-18 4
56 SHOULDER BOLT ALLOY 3/8 X 3/4 4
57 SNAP LINK 8MM X 80MM 2
59 SOCKET SET SCREW 3/8-16 X 3/4 2
62 STRAP BRACKET 20 #SF20 2
