REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 ADJUSTABLE CABLE BOLT 0 UP1050 2
33 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 BNH2045 4
2 CARRIAGE 0 UP3966 2
34 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4 1/2 BNH2052 2
3 CHIN-UP HANDLE 0 UP3967 1
35 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4 1/4 BNH2074 4
4 CROSSOVER CABLE 0 UP3968 2
36 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5 BNH2051 8
5 DOUBLE SWIVEL PULLEY BRACKET 0 UP2448 2
37 HEX KEY 3/16" BNH0371 1
6 GUIDE ROD 3/4 X 80 0 UP3969 4
38 HEX KEY ALLOY 3/32" BNH0373 1
7 SELECTOR PIN W/COIL 3/8 X 4 0 UP3035 2
39 LEATHER ANKLE STRAP (PART # H900A) BNH1231 1
8 STABILIZER 0 UP3970 2
40 LITHIUM GREASE SMALL CONTAINER BNH0705 1
9 TOP CROSS BRACE 0 UP3971 2
41 NYLON BALL W/THREADED SOCKET 1 3/4 X 5/16 BNH0022 2
10 TOP CROSS BRACE CONNECTOR PLATE 0 UP3972 1
42 NYLON D HANDLE (# H834A) BNH1215 2
11 TOP PLATE PULLEY BRACKET 0 UP1049 2
43 NYLON INSERT JAM LOCK NUT Z/P 1/2-13 BNH2027 2
12 UPRIGHT 0 UP3973 2
44 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 BNH2026 30
13 10 LB STEEL WEIGHT PLATE BLACK 4 9/16 X 9 7/16 BNH1650 38 45 NYLON INSERT LOCK NUT Z/P 5/16-18 BNH2056 4
14 10 LB TOP PLATE W/22" SLTR BAR 19 BLK WTS BNH2020 2 46 PLASTIC HORIZONTAL ELLIPTICAL SHOE BNH1847 4
15 ALUMINUM CAP 1.270" RD (CAP -125) BNH0538 4 47 PLASTIC INSERT CAP 2 X 3 BNH0052 4
16 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 BNH0553 4 48 PLASTIC INSERT CAP ELLIPTICAL 2 X 4 BNH1794 4
17 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 BNH0506 8 49
PLASTIC INSERT ELLIPTICAL GUIDE (60 X 120 X 50 mm)
BNH2062 4
18 BRONZE BUSHING 1/2 X 5/8 X 1/2 X 7/8 X 1/8 BNH0528 4 50 PULL PIN 1/2 X 2 7/8 (YELLOW) BNH0641 2
19 DECAL-ADJUST CABLE HERE BNH0789 2 51 RUBBER DONUT 3/4 X 2 1/2 BNH0068 4
20 DECAL-CAUTION WEIGHT TRAINING SAFETY... BNH0126 1 52 RUBBER GRIP 1.1875 ID X .125 X 15 BNH2075 2
21 DECAL-DANGER TIGHTEN THIS RET… BNH0142 2 53 RUBBER GRIP 1.1875 ID X .125 X 6 1/2 BNH1063 2
22 DECAL-FOR BEST PERFORMANCE BNH0143 2 54 RUBBER GRIP 1/2 X 3 1/2 BNH1221 2
23 DECAL-IMPORTANT CHECK CABLES FOR PROPER... BNH1891 2 55 RUBBER GROMMET 3/4" ID (2867-012) BNH0401 4
24 DECAL-IMPORTANT FOR BEST PERFORMANCE... BNH1894 2 56 SHOULDER BOLT ALLOY 3/8 X 3/4 BNH0718 4
25 DECAL-WEIGHT NUMBERS REF TP-10 (200 lbs) BNH1542 2 57 SNAP LINK Z/P 8MM X 80MM BNH0065 3
26 FINISHED HEX NUT B/O 1/2-13 BNH0201 6 58 SOCKET SET SCREW ALLOY 10-32 X 1/8 BNH0473 10
27 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2 59 SOCKET SET SCREW ALLOY 3/8-16 X 3/4 BNH0476 2
28 FLAT WASHER SAE Z/P 1/2" BNH2031 6 60 SPLIT LOCK WASHER Z/P 1/2" BNH0572 4
29 FLAT WASHER SAE Z/P 3/8" BNH2030 64 61 SPLIT LOCK WASHER Z/P 3/8" BNH2032 4
30 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 BNH2037 4 62 STRAP BRACKET 20 #SF20 BNH0562 2
31 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4 BNH2040 8 63 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1
32 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/2 BNH2044 4 64 COIL CHAIN Z/P 3/16 X 12 BNH2055 1
RCO-140WS
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
About the RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel
Weight Stack
Congratulations on your new purchase of the Crossover Pulley
W/2 X 200 Lbs Steel Weight Stack. We hope you are completely
satisfi ed with this product and wish you many years of enjoyment.
Tuff Stuff Equipment
This Tuffstuff product has been built to precise quality standards
and has been carefully packaged to ensure that damage will not
occur during shipment. The Home Lifetime Warranty and signature
indicating fi nal inspection has been conducted by our line foreman,
is an expression of our confi dence in the completeness, the
materials, and workmanship of this product.
Warranty
SEE A COPY OF WARRANTY ON BACK PAGE.
Registration Card
To avoid unnecessary delays in warranty service and to insure that
a permanent record of your purchase is on fi le with our factory,
be sure to complete the warranty registration card and send it to
TuffStuff Fitness Equipment today.
Prior to the Assembly of the Crossover Pulley W/2 X 200 Lbs
Steel Weight Stack
1. We advise you to consult your local Tuff Stuff retailer if you should
have a question or problem regarding the proper assembly of
this unit.
Tool Requirements
One 7/8” combination wrench1.
One 3/4” combination wrench2.
One 9/16” combination wrench3.
One 1/2” combination wrench4.
One ratchet5.
One 9/16” socket6.
One rubber mallet7.
Two stepladders8.
Windex or household glass cleaner9.
Measuring tape10.
Utility knife11.
S
C
R
E
W W
I
D
T
H
W
A
S
H
E
R
D
I
A
M
E
T
E
R
N
U
T
D
I
A
M
E
T
E
R
S
C
R
E
W
L
E
N
G
T
H

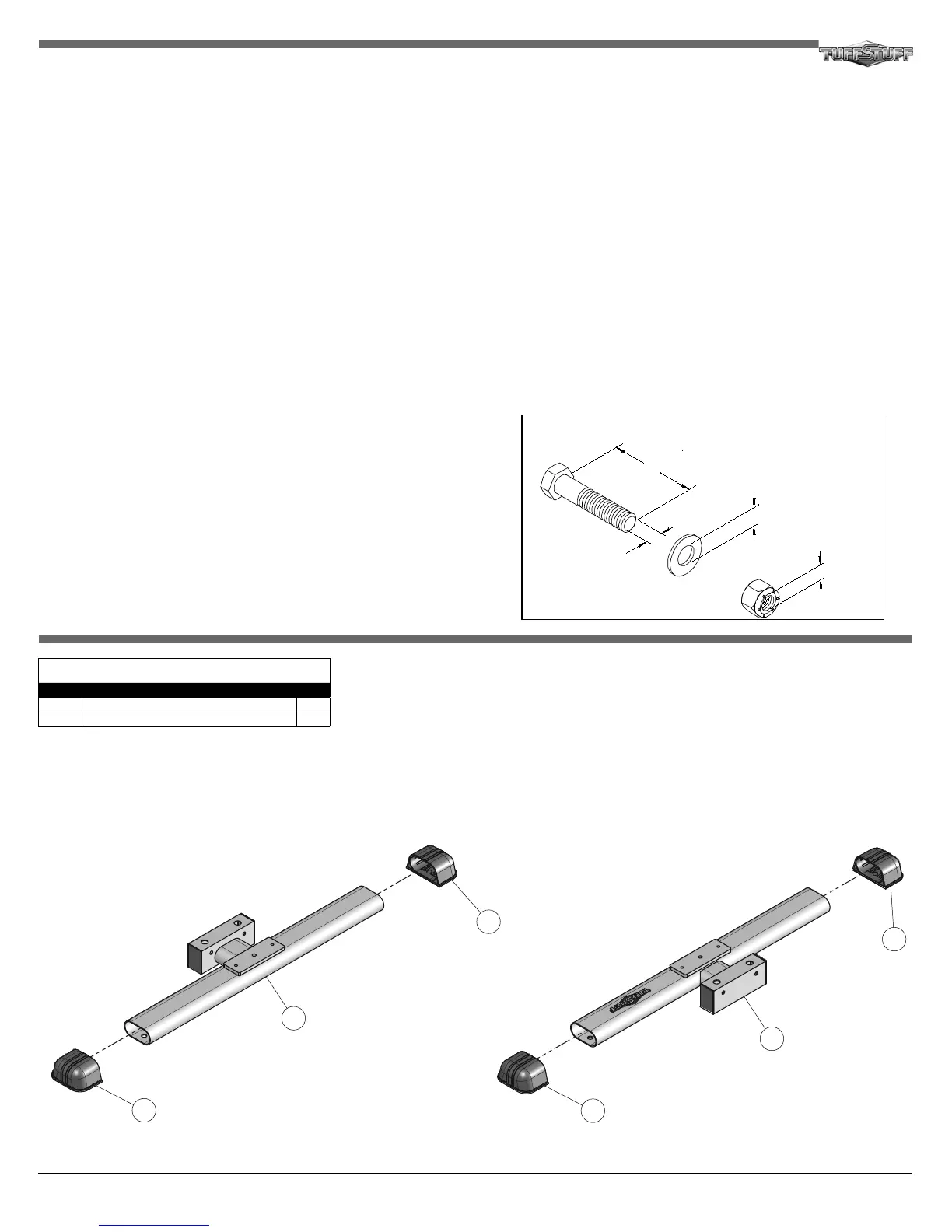

Hardware Measurement Diagram
Note: Due to continuing product improvements, specifi cations and designs are subject to change
without notice.
2 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack 9RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack
Step 1 Assembly List
Item # Description Qty.
8 STABILIZER 2
46 PLASTIC ELLIPTICAL SHOE 4
Introduction
46
46
8
8
46
46
Specifi cations
1. Maximum Wt. Capacity - 2x200 lbs. Weight Stack 50% Ratio
2. Total Machine Weight - 605 lbs.
3. Footprint (LWH) - See Front Cover.
