TuffStuff RCO-140WS - Page 3

3RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack6 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack
30
61
29
17
29
61
30
34
29
2
44
29
12
30
61
29
44
29
2
12
29
34
30
61
29
17

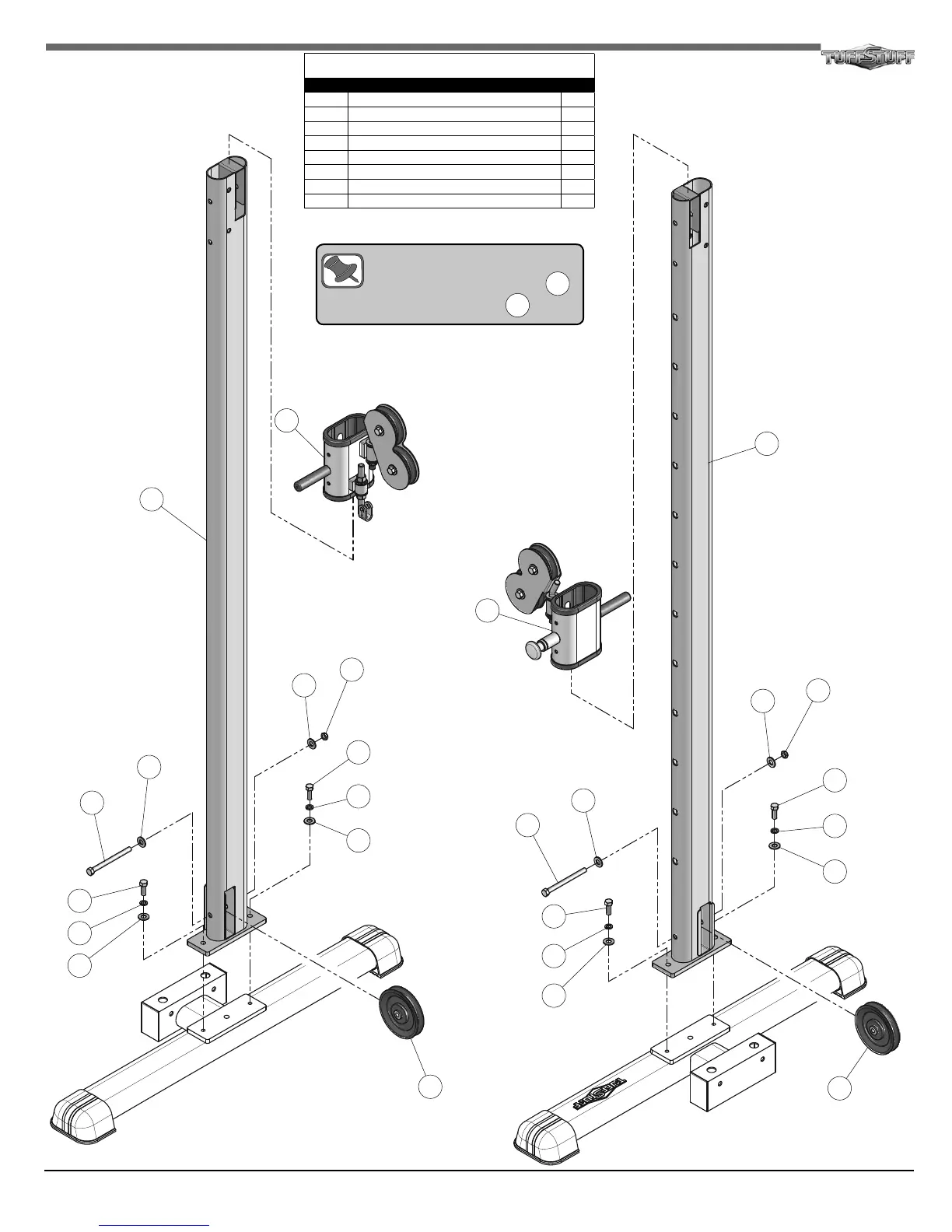

Step 2 Assembly List
Item # Description Qty.
2 CARRIAGE 2
12 UPRIGHT 2
17 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 2
29 FLAT WASHER SAE 3/8” 8
30 HEX HEAD CAP SCREW 3/8-16 X 1 4
34 HEX HEAD CAP SCREW 3/8-16 X 4 1/2 2
44 NYLON INSERT JAM LOCK NUT 3/8-16 2
61 SPLIT LOCK WASHER 3/8” 4
Step 6 Assembly List
Item # Description Qty.
29 FLAT WASHER SAE 3/8” 8
32 HEX HEAD CAP SCREW 3/8-16 X 2 1/2 4
44 NYLON INSERT JAM LOCK NUT 3/8-16 4
29
44
29
44
29
6
6
6
6
29
32
29
29
32
29
29
Note: Lift the Guide Rods
6
to allow the insertion of the
Hex Head Cap Screws
32
.
Note: Exert caution when
inserting the Carriages
2
onto the Uprights
12
.
