TuffStuff RCO-140WS - Page 4

5RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack4 RCO-140WS Crossover Pulley W/2 X 200 Lbs Steel Weight Stack

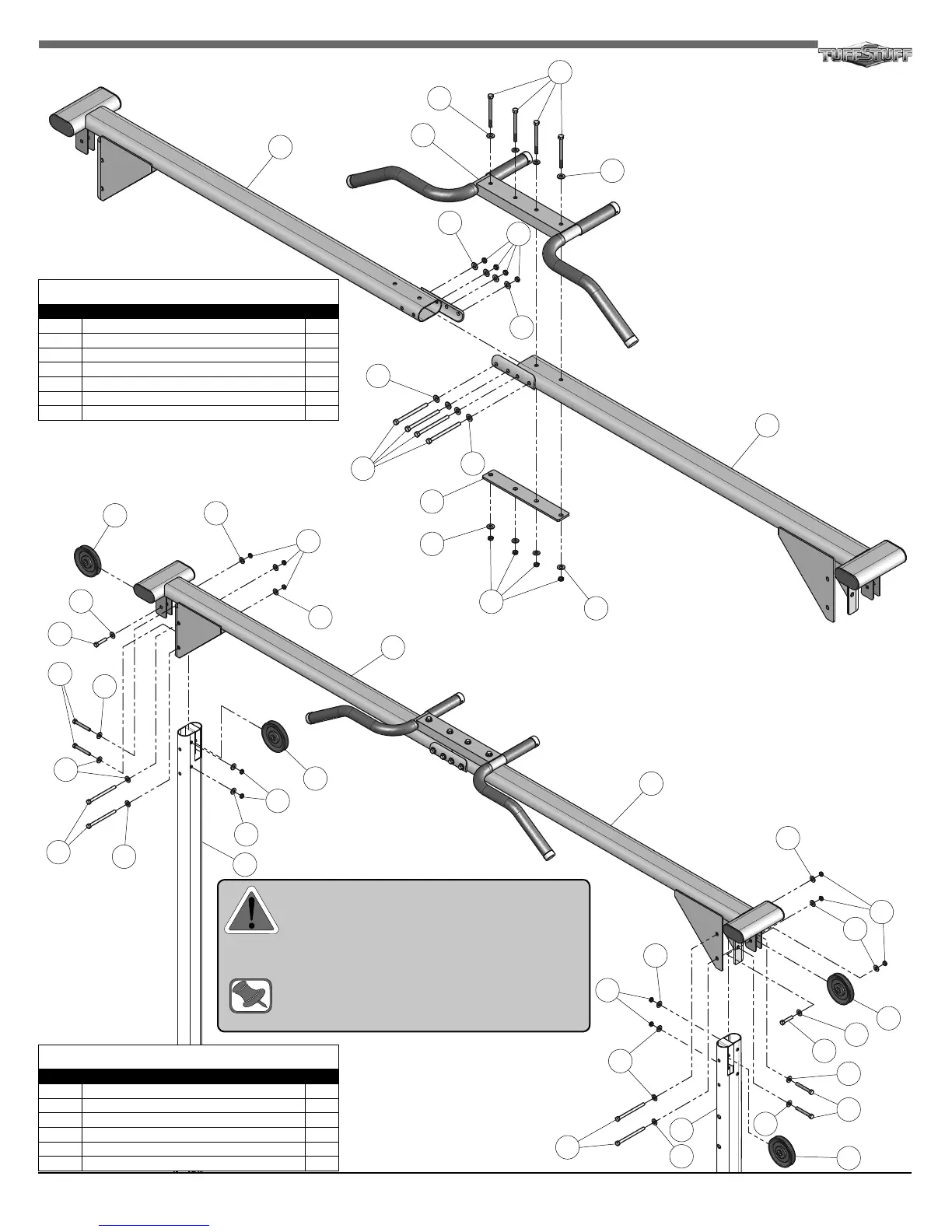

Step 3 Assembly List
Item # Description Qty.
3 CHIN-UP HANDLE 1
9 TOP CROSS BRACE 2
10 TOP CROSS BRACE CONNECTOR PLATE 1
29 FLAT WASHER SAE 3/8” 16
35 HEX HEAD CAP SCREW 3/8-16 X 4 1/4 4
36 HEX HEAD CAP SCREW 3/8-16 X 5 4
44 NYLON INSERT JAM LOCK NUT 3/8-16 8
Step 5 Assembly List
Item # Description Qty.
6 GUIDE ROD 3/4 X 80 4
7 SELECTOR PIN W/COIL 3/8 X 4 2
11 TOP PLATE PULLEY BRACKET 2
13 10 LB STEEL WEIGHT PLATE BLACK 38
14 10 LB TOP PLATE SLTR BAR 2
17 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 2
25 DECAL-WEIGHT NUMBERS REF TP-10 2
26 FINISHED HEX NUT B/O 1/2-13 2
29 FLAT WASHER SAE 3/8” 4
31 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 2
44 NYLON INSERT JAM LOCK NUT 3/8-16 2
51 RUBBER DONUT 3/4 X 2 1/2 4
60 SPLIT LOCK WASHER 1/2” 2
Step 4 Assembly List
Item # Description Qty.
17 BLACK NYLON PULLEY 3/8 X 1 X 4 1/2 4
29 FLAT WASHER SAE 3/8” 20
31 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 2
33 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 4
36 HEX HEAD CAP SCREW 3/8-16 X 5 4
44 NYLON INSERT JAM LOCK NUT 3/8-16 10
29
35
29
3
29
44
29
9
9
29
44
29
29
10
36
17
29
31
33
29
29
36
29
12
29
44
17
29
44
29
9
9
29
29
44
17
29
31
33
51
51
8
25
6
14
6
7
31
29
60
13
8
51
51
25
6
7
60
26
11
29
44
17 29 31
6
14
13
26
29
44
17
17
29
29
29
12
36
29
44
29
29
Caution: It is strongly recommended
that at least two persons participate in
this assembly.
Note: To facilitate the assembly, use
two stepladders.
