TuffStuff SXT-LP - Step 1 SXT-LP + SXT-550 Assembly

Leg Press Option for XT Gym Series www.tu stu tness.com
15
37
65
31
31
5

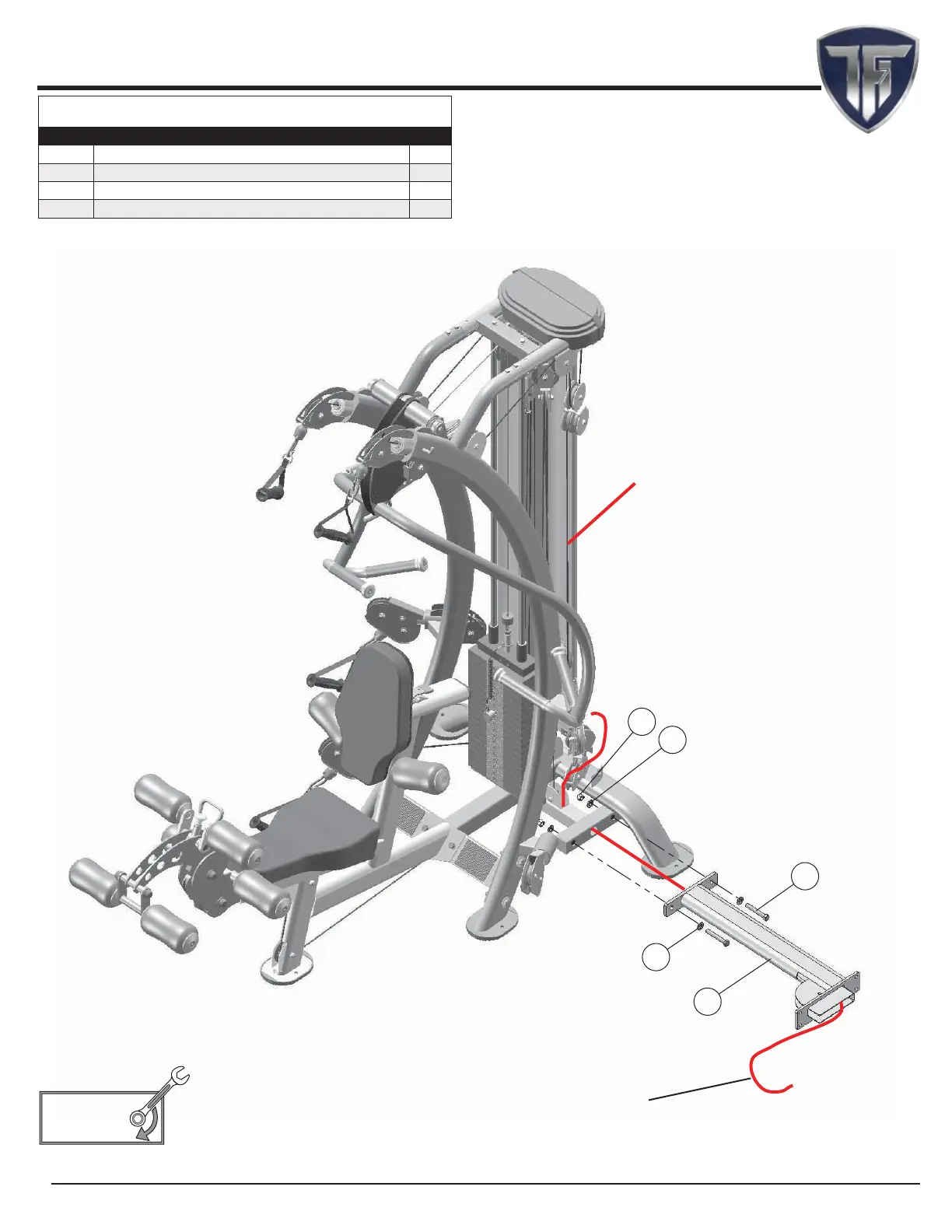

Step 1 SXT-LP+SXT-550
NOTE:
1. It is strongly recommended that two people
participate in the assembly of this unit.
Step 1 Assembly List
Item # Description Qty.
5 CROSS BRACE 1
31 FLAT WASHER SAE Z/P 1/2” 4
37 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 3 1/4 2
65 NYLON INSERT LOCK NUT Z/P 1/2-13 2
NOTE:
Wire string will be used to guide
the cable on step 6. Do not remove.
Loosely Tighten
70%
Loosely Tighten
Loosely tighten all hardware in this step.
Remove existing cable
(#45 on SXT-550 Owner’s Manual)
