TuffStuff SXT-LP - Page 21

Leg Press Option for XT Gym Series www.tu stu tness.com
21
26
23
32
43
32
42
63
62
42
62

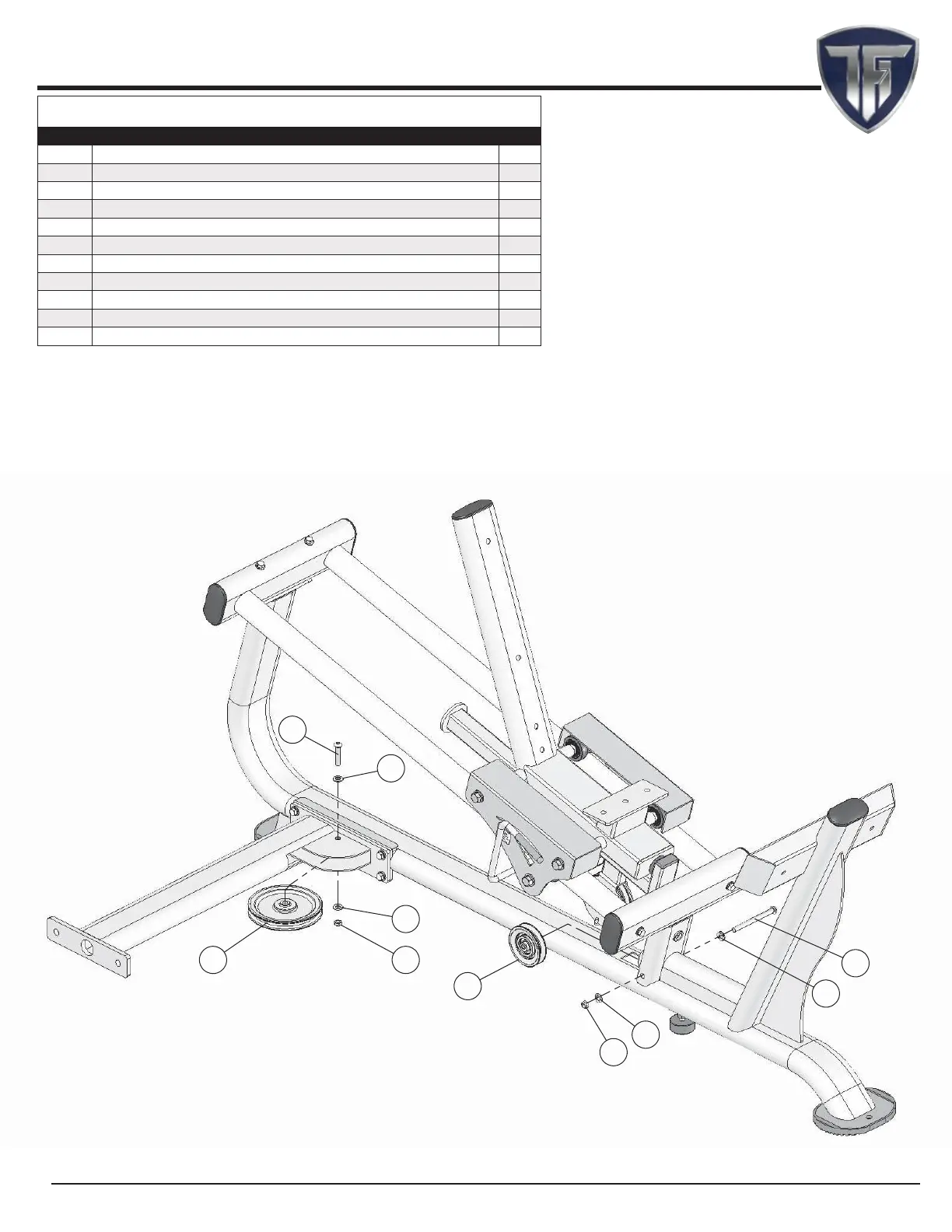

Step 6 Assembly List
Item # Description Qty.
18 LEG PRESS CABLE (SXT-LP+AXT-225) 1
23 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 3/4 1
26 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 4 1/2 1
32 FLAT WASHER SAE Z/P 3/8” 2
42 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 2
43 NYLON PULLEY 3/8 X 1 X 6 BLACK 1
52 SHOULDER BOLT Z/P 3/8 X 3/4 1
58 STRAP BRACKET 20 #SF20 STAINLESS STEEL 1
62 OVAL WASHER Z/P 3/8” 2
63 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 2
85 NYLON INSERT LOCK NUT Z/P 5/16-18 1
Note:
1. Skip to next step if you will be installing the SXT-LP on a SXT-550 unit.
2. Some parts not shown for clarity.
3. Assemble the pulleys shown below at the same time you route the cable.
4. Make sure cable runs between pulleys.
5. Use wire string to run cable between pulleys.
