TuffStuff SXT-LP - Step 9 Assembly

Leg Press Option for XT Gym Serieswww.tu stu tness.com
26
25
2
14
22
32
22
32
25

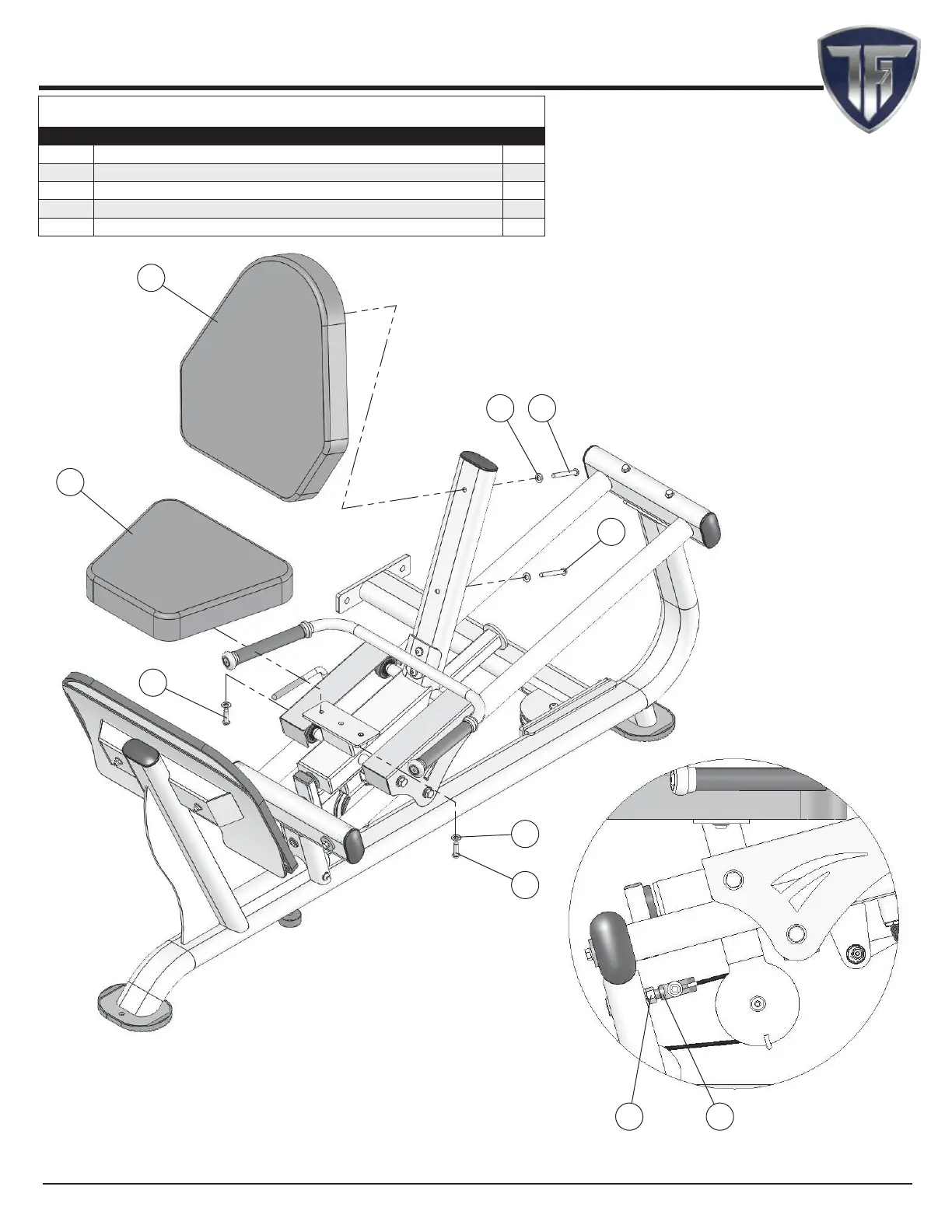

Step 9
Step Assembly List
Item # Description Qty.
2 BACK PAD 1
14 SEAT PAD 1
22 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 1/4 2
25 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 3 2
32 FLAT WASHER SAE Z/P 3/8” 4
Note:
After completing this step adjust the cable by loosening the fi nish hex nut #64. Adjust the
Cable Adjuster #3 in/out to give the cable the proper tension. Retighten nut #64.
64 3
