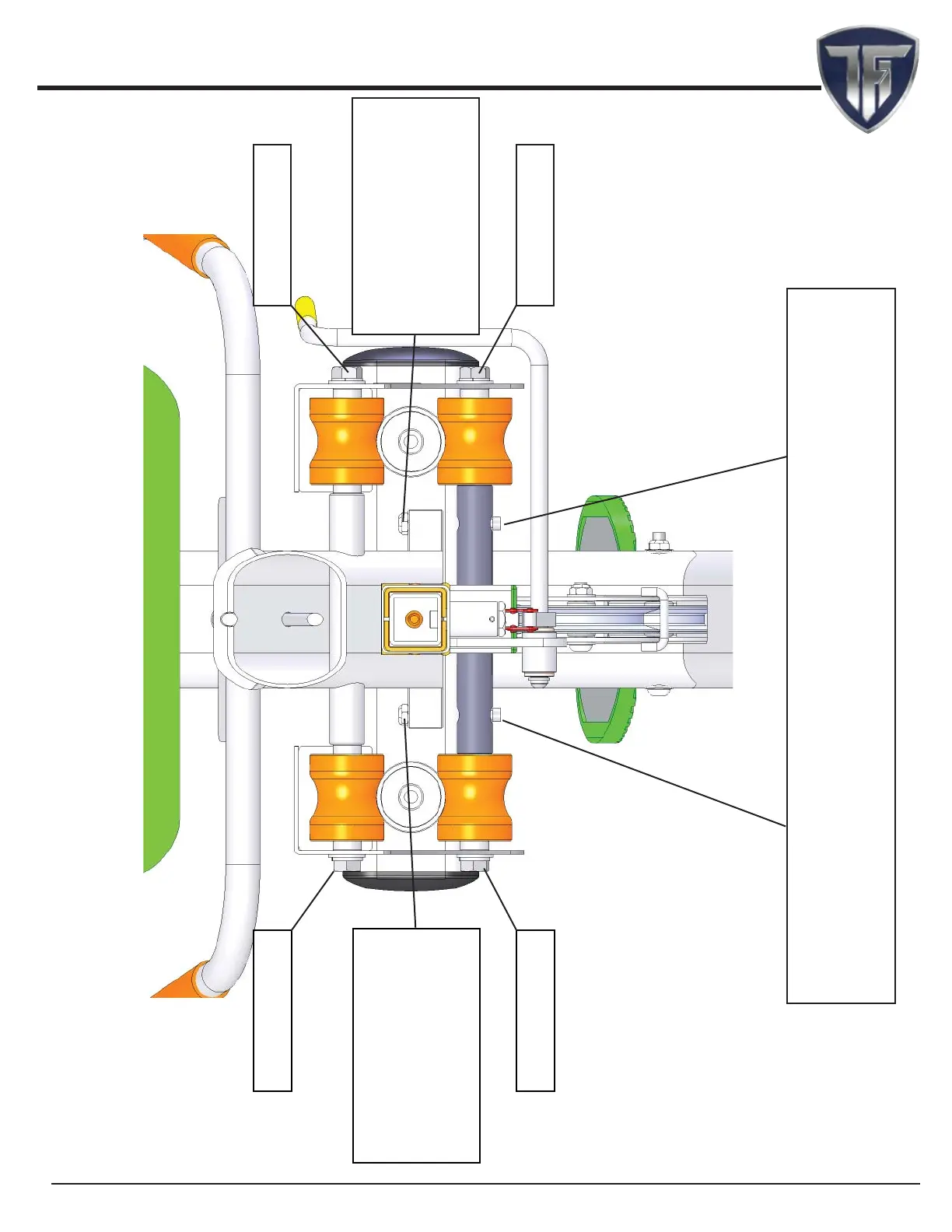

Rail Wheel Adjustment Step 2
STEP 9
WHILE HOLDING SCREW
FROM STEP 7 WITH AN
ALLEN WRENCH, GENTLY
FULLY TIGHTEN NUT
USING A 9/16” SOCKET.
STEP 10
TIGHTEN SCREW
STEP 11
TIGHTEN SCREW
STEP 7
GENTLY SCREW BACK IN UNTIL YOU FEEL THE WHEELS HAVE COME INTO
CONTACT WITH THE LINEAR SHAFTS. ROLL THE CARRIAGE BACK AND FORTH
TO TEST FOR SMOOTHNESS. IF IT ROLLS SMOOTHLY YOU MAY PROCEED TO
NEXT STEP. IF NOT, MAKE NECESSARY ADJUSTMENTS.
STEP 13
TIGHTEN SCREW
STEP 12
TIGHTEN SCREW
STEP 8
WHILE HOLDING SCREW
FROM STEP 7 WITH AN
ALLEN WRENCH, GENTLY
FULLY TIGHTEN NUT
USING A 9/16” SOCKET.
