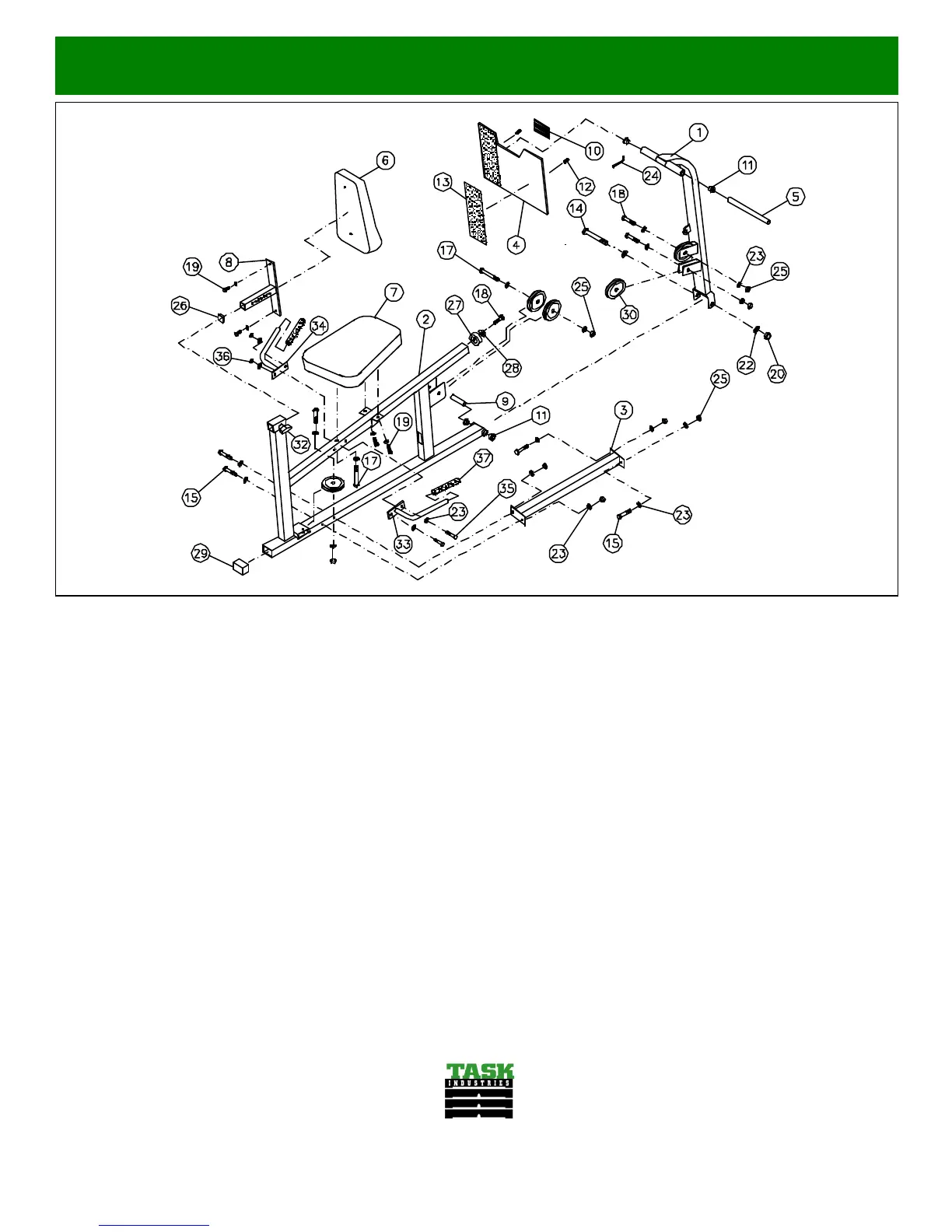

TG-11L EXPLODED VIEW DIAGRAM
TG-11L PARTS LIST
Item No. Description Part No. Qty Item No. Description Part No. Qty
1
FULCRUM
UP156
1
20
NYLON INSERT JAM LOCK NUT 1/2-13
BNH0366
2
2
MAIN FRAME
UP170
1
21
HEX HEAD CAP SCREW 1/2-13 X 1
BNH0259
1
3
STABILIZER SUPPORT
UP157
1
22
FLAT WASHER SAE 1/2"
BNH0238
4
4
FOOT PLATE
UP155
1
23
FLAT WASHER SAE 3/8"
BNH0239
28
5 LARGE AXLE 1 X 10 3/8 UP154 1 24 HEX KEY 3/16" BNH0371 1
6
BACK PAD
UP145
1
25
NYLON INSERT JAM LOCK NUT 3/8-16
BNH0365
10
7 SEAT PAD UP146 1
26
PLASTIC INSERT CAP 1 3/4 SQ
BNH0053
1
8
ADJUSTABLE BACK PAD TUBE
UP136
1
27
RUBBER BUMPER 3/8 X 2 1/2
BNH0511
1
9 SMALL AXLE 1 X 4 1/4 UP153 1
28
STEEL WASHER 3/8"
BNH0498
1
10 RUBBER MAT 2 1/2 X 3 1/2 BNH0688 1 29 PLASTIC END CAP W/GROOVE 2X 3 BNH0049 1
11 BRONZE BUSHING 1 X 1 1/4 BNH0527 4 30 WHITE NYLON PULLEY 4 1/2 RD BNH0506 6
12 SET SCREW 3/8-16 X 1/2 BNH0474 2
31
MAIN CABLE ( 250 )
TG11L-31-00
1
13 SAFETY TAPE 4 X 12 BNH0492 2 32 PUSH-PULL PIN 1/2 BNH0515 1
14 HEX HEAD CAP SCREW 1/2-13 X 5 1/2 BNH0267 1
33
HANDLE (RT)
UP270
1
15 HEX HEAD CAP SCREW 3/8-16 X 3 3/4 BNH0281 4
34 HANDLE (LT) UP271 1
16
MAIN CABLE (150 )
TG11L-16-00
1
35
HEX HEAD CAP SCREW 3/8-16 X 3 1/4
BNH0312
2
17 HEX HEAD CAP SCREW 3/8-16 X 2 3/4 BNH0278 2 36 NYLON INSERT LOCK NUT 3/8-16 BNH0214 2
18 HEX HEAD CAP SCREW 3/8-16 X 1 3/4 BNH0274 4 37 HARD GRIP .875 X 8 BNH0523 2
19 HEX HEAD CAP SCREW 3/8-16 X 1 BNH0275 4
COLOR CHART
GRAY= SUB-ASSEMBLY PARTS
BLACK= HARDWARE
