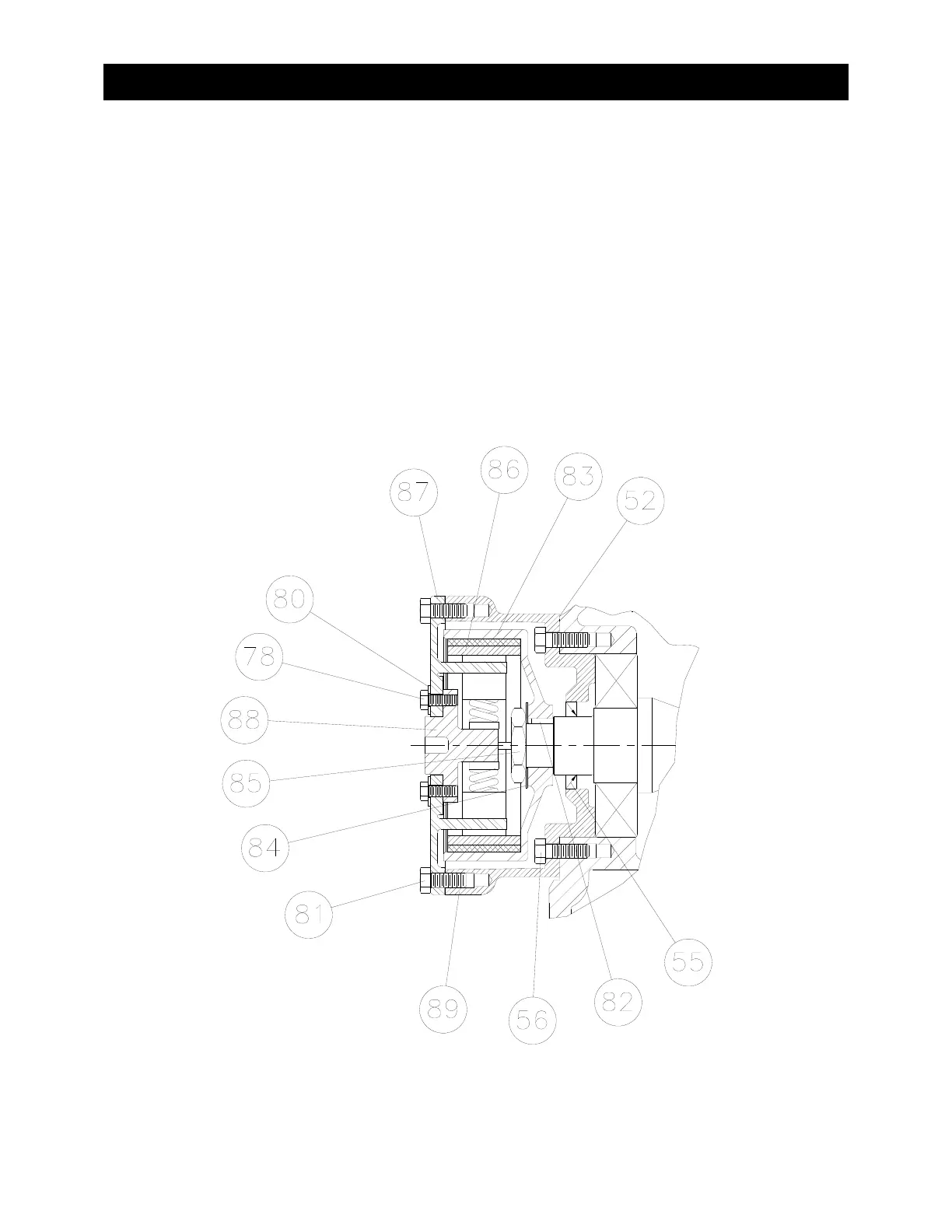

DRUM BRAKE ASSEMBLY
1. Press the oil seal (55) into the brake
housing (89). Install the gasket (52),
and attach the brake housing (89) to
the gearbox with six capscrews (56),
using gasket (52).
2. Install the brake drum (83) and key
(82) onto the worm shaft (57).
Secure the brake drum with the nut
(85) using washer (84). Bend two
tabs of the washer (84) over the flats
of the nut (85).
3. If removed, reattach the cam (88) to
the brake cover (87) using two
capscrews (78) and washers (80).
4. Install the brake cover (87), cam
(88), and brake shoes (86) into the
brake housing (89).
5. Secure the brake cover (87) using
four capscrews (81).
6. Adjust the brake using the procedure
on page 8 of this manual.
