Connection to Turbelle
®
electronic pumps / TUNZE
®
LEDs

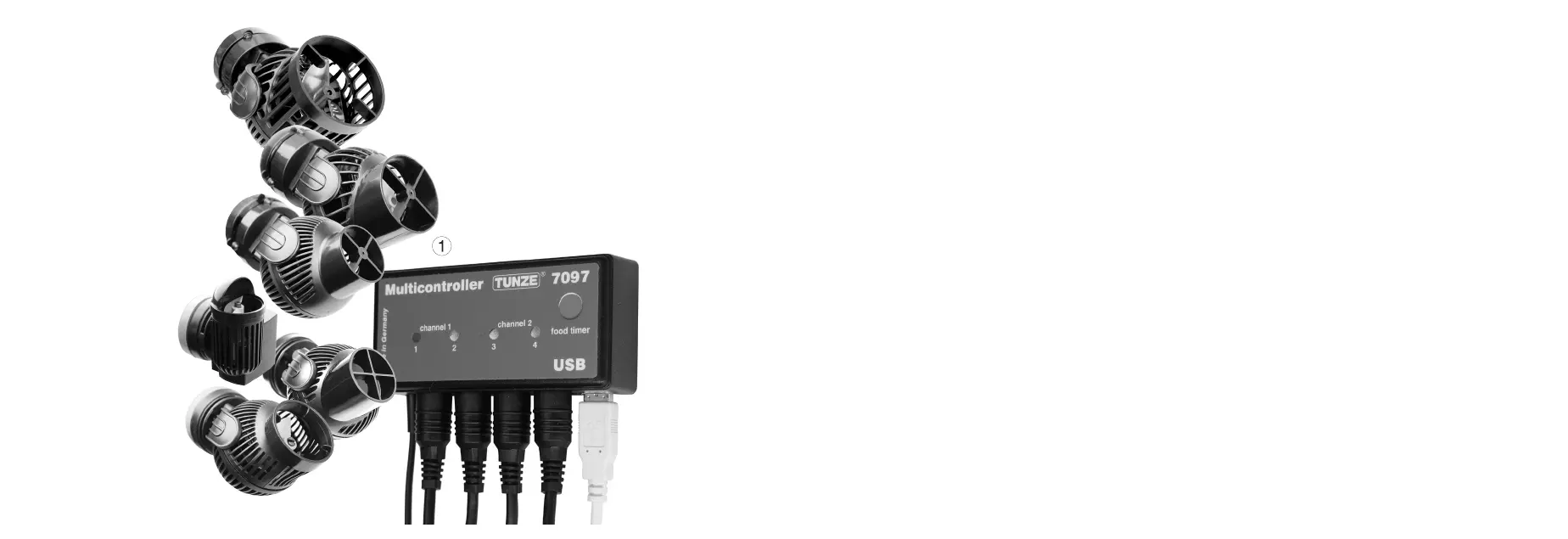

The Multicontroller 7097 is designed for the operation with all Turbelle
®
electronic pumps (1) and TUNZE
®
LEDs.
Connections: Before each connecting / disconnecting of the connecting cables to the pump / LED, always rst
disconnect the power supply from the mains socket and switch it off (2). The Multicontroller 7097 is connected to the
Turbelle
®
pump / TUNZE
®
LED and supplied with power through a 5-pin connection cable 7092.300 or 5-pin Y-adapter
cable 7090.300. With the help of the Y-adapter it is possible to connect two pumps / LEDs per output, or operate up
to eight pumps / LEDs or four pumps and four LEDs at the same time.
The Multicontroller 7097 automatically detects whether a Turbelle
®
pump, TUNZE
®
LED or switching socket 7097.120
is connected, i.e. the connected channel is automatically allocated to “Pump control“ or “Light control“.
Important Note:
Pumps and switching sockets never may be connected conjointly by a Y-adapter cable to one single channel.
However, one pump and one TUNZE
®
LED or one switching socket and one LED may operate together on a common
Y-adapter cable.
When using a Y-cable it is only possible to connect identical LED lights with the same voltage, for example, 2 x 8850
with 24 V, or 2 x 8810 with 12 V. Is not possible to combine 24 V and 12 V.
