Turbosound iNSPIRE iP2000 User Manual

10 iNSPIRE iP2000/iP1000/iP500 Quick Start Guide 11

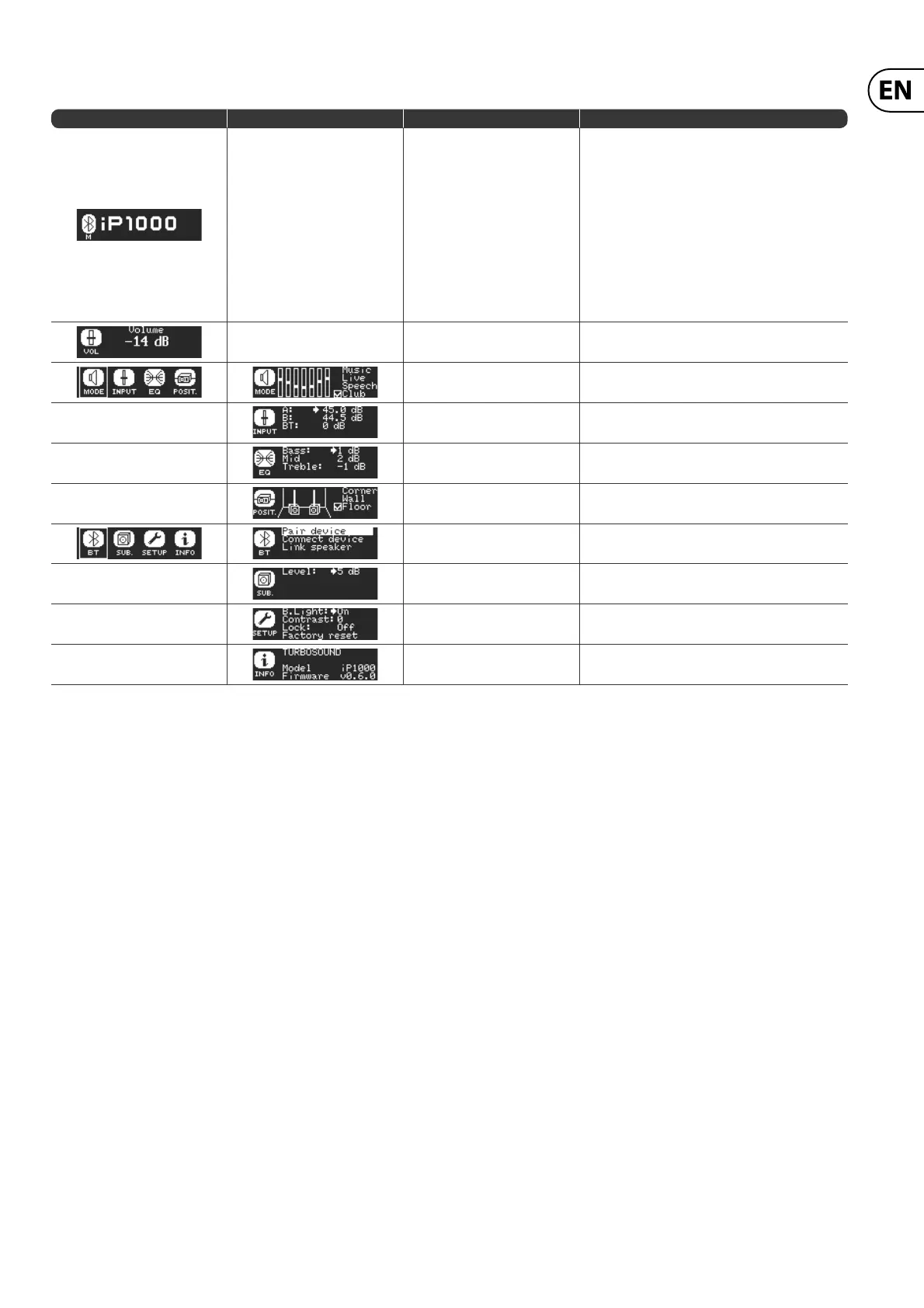

iP DSP Menu Structure
Menu
Sub-Menu Fullrange Function
Main Screen
Displays level indicators and model name.
Displays the following Bluetooth* statusinformation:
• • Bluetooth symbol indicates connection to audio and
remote control device (iPhone*, etc.).
• • “M” or “S” below the Bluetooth symbol indicate that
the speaker is linked to another iP speaker as MASTER
(left channel, “M”) or SLAVE (right channel, “S”).
Rotate the encoder knob to adjust the output volume.
Press the encoder knob enter the last used sub-menu.
Press the Process and Setup buttons to access sub-menus.
Volume Rotate the encoder to change the outputvolume.
MODE
Selects from 4 preset equalisations, depending on function and
music type.
INPUT
Sets input mixer gain for analogue input A and B,
as well as Bluetooth.
EQ
(Equalisation)
Allows adjustment of three band equaliser control, bass,
midrange and treble.
POSIT.
(Position)
Selects DSP compensation depending on the speaker position:
corner, wall or  oor.
BT
(Bluetooth)
Lets you pair the speaker with mobile Bluetooth devices and link to
another iPspeaker as master / slave.
SUBWOOFER Allows control of subwoofer relative level.
SETUP Sets LCD back panel contrast, device lock and factory reset.
INFO Displays model and  rmware information.
*iPhone is a trademark of Apple Inc. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license.
iP Series Analogue Connection
Despite their sophistication, iP speakers o er straightforward analogue connectivity, and you can easily arrange the iP system to allow simple control of levels from
other devices, such as mixers. You can also daisy-chain multiple iP speakers using only the analogue connections, and then directly control the overall level from your
mixer’s master fader.
For example, you have four iP speakers and a mixer with simple left-right stereo outputs. For typical operation, set the DSP volume and input gain settings on all
speakers to a  at “0 dB” setting. Connect the mixer’s left and right stereo outputs to the  rst two speakers’ analogue INPUT A connections (the left and right mixer
outputs will go to separate speakers). Then, run cables from the OUTPUT analogue connections to the remaining two speakers. In a similar way, subwoofers can also be
linked to the analogueOUTPUT.
Controls
(1) ENCODER KNOB toggles between Graphic and Edit modes (when pressed) and changes parameter values (when rotated).
(2) LCD SCREEN displays the current DSP module and parameter settings.
(3) PROCESS button accesses the DSP signal processing menu.
(4) SETUP accesses the setup features menu.
(5) EXIT button saves changes and returns to the previous menu screen.
(6) ENTER button selects sub-menu or con rms parameter changes.
(7) INPUT A/INPUT B combo jacks accept input signals using XLR, balanced ¼" TRS or unbalanced ¼"TSconnectors.
(8) LINK A/LINK B XLR connectors provide un-processed copies of the INPUT A or INPUT B signals.
(1)
(2)
(3)
(7)
(8)
(4)
(6)
(5)
(8)
(9)

Turbosound iNSPIRE iP2000 Specifications

General

Amplifier Type	Class-D
Max SPL	126 dB
Woofer	1 x 12"
Outputs	1 x XLR
Bluetooth	Yes
Mixer	3-channel digital mixer
Power Output	2000 W
Enclosure Material	Aluminum
Tweeter	16 x 2.75"
Dispersion	120° H
