Setting HF Bus Mode
10
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Connect the read/write head to the interface converter using a suitable connection cable
(e.g. RK4.5T-2/S2500) according to the following color coding:
STW-RS485-USB …/S2500
connector
…/S2501
connector
…/S2503
connector
VCC Brown (BN) Brown (BN) Red (RD)
GND Blue (BU) Blue (BU) Black (BK)
RS485-A White (WH) Black (BK) White (WH)
RS485-B Black (BK) White (WH) Blue (BU)
Connect a USB cable to the interface converter (USB1.1 type B).
Connect the unconnected end of the USB cable to a free USB port on the PC
(USB1.1 type A).
Set the switches for termination on the side of interface converter to [ON].
Connect the interface converter to a power supply via the STW plug-in power supply
unit.
UHF RFID read/write head
e.g. TN-CK40-H1147/C53
Interface converter
STW-RS485-USB
Power supply
STW-RS485-USB-PS
RFID cable
e.g. RK4.5T/S2500
PC / Notebook
with USB-interface

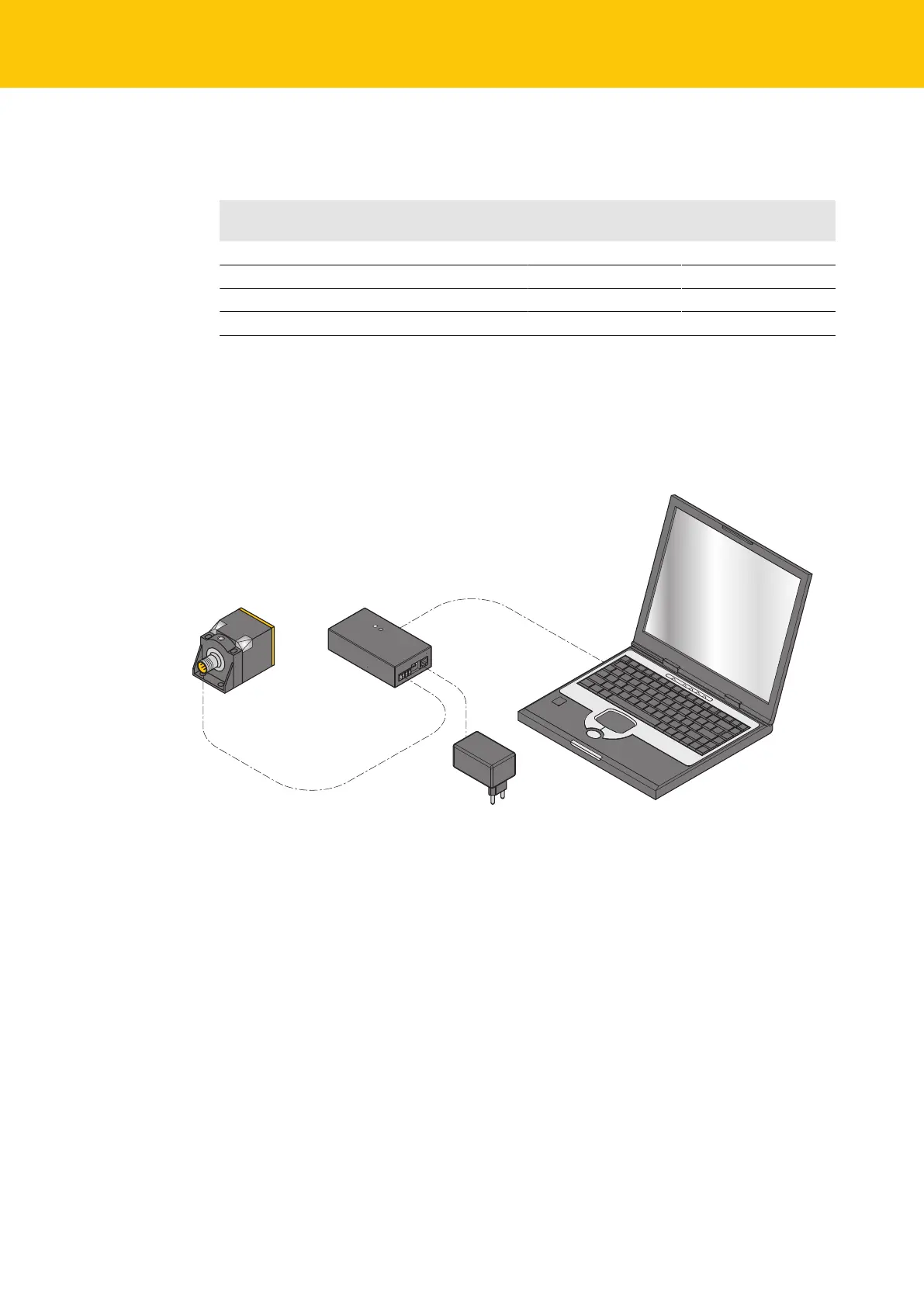

Fig.3: Connecting the read/write head to a PC via the interface converter
