Tutti Bambini Bears - Assembling into A Cot

A x 4 PCS
B x 4 PCS
A x 4 PCS
B x 4 PCS
Assembling into wardrobe
Ax2
1
A x 4 PCS
5
102-0055 Tutti Bambini Modena Assembly Instructions.indd 5 02]/07/2018 12:27
Assembling into A Cot
www.tuttibambini.com
3
B x 4 PCS
4
Ax2
Ax2
Bx4

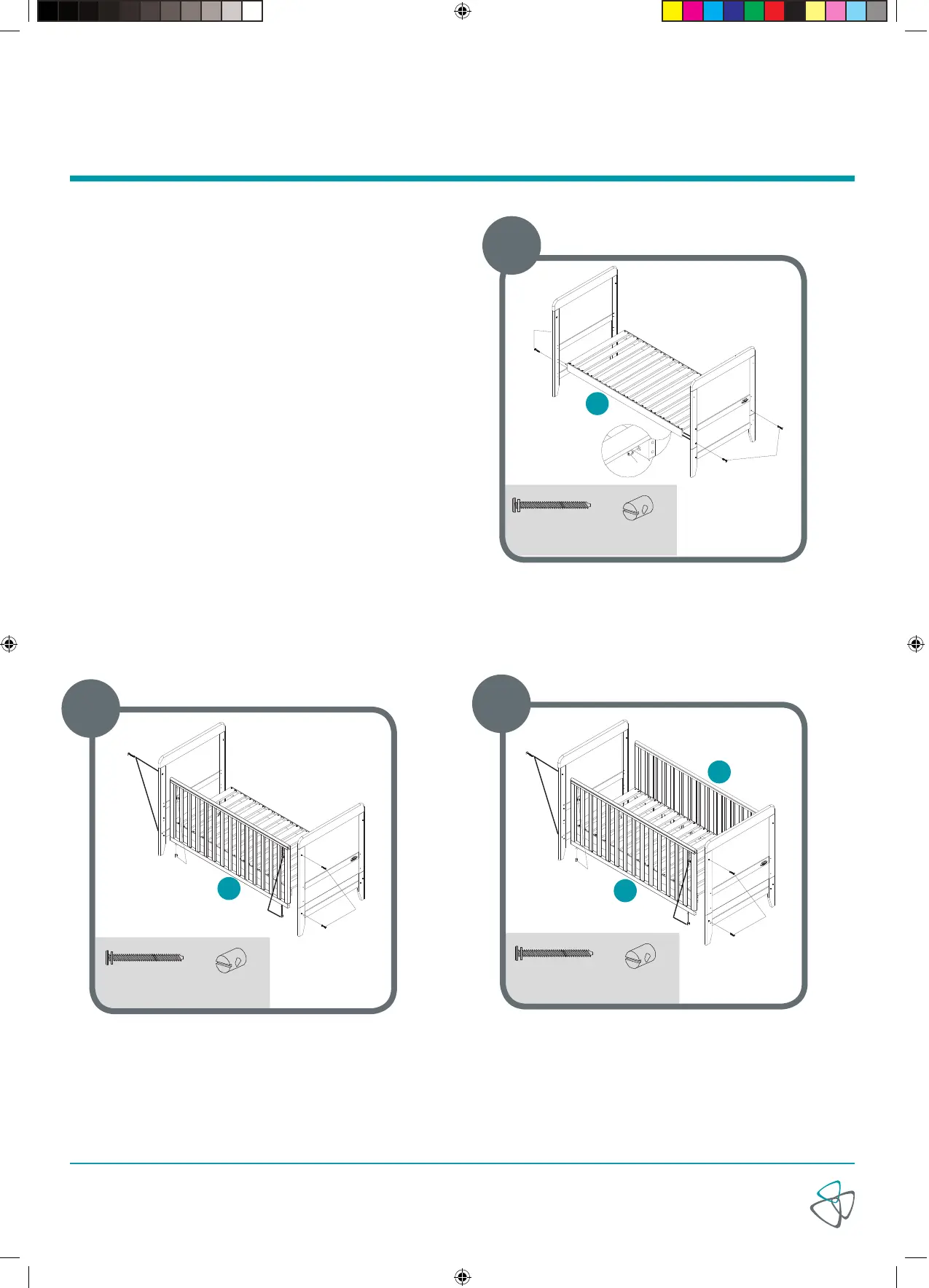

Place Mattress Base 4 on one of the three base
positions using 2 x A bolts and 2 x B Barrel Nuts on
Each end and align the bolts to the nuts.Remember
bottom mattress base position is the safest.You
should always use the cot in this lowest position as
soon as your baby is old enough to sit up.
Ax2
Ax2
Bx2
Bx2
3
Take fixed side rail 3 and connect to the 2 Ends using
2 x A Bolts on each End and 2 x B Barrel Nuts which
are inserted underneath side rail bar and aligned to
the holes of the side rail-The line on one end of the
nut indicates the position of the threaded hole. It is
advisable to push the nut into its appropriate hole and
check for correct alignment before attempting to insert
any Bolts.
3
3
Ax2
Ax2
Bx2
Bx2
Take fixed side rail 3 and connect to the 2 Ends using
2 x A bolts on each End 2 x B Barred Nuts which are
inserted underneath side rail bar and aligned to the holes
of the side rail-The line on one end of the nut indicates
the position of the threaded hole.It is advisable to push
the nut into its appropriate hole and check for correct
alignment before attempting to insert any Bolts.
The help of an assistant will aid assembly.Do not tighten screws until assembly is complete.
2
YOUR COT BED IS NOW READY FOR USE
NOTICE:All assembly fittings should always be
tightened properly and care should be taken
that no bolts are loose,because a child could
trap parts of the body or clothing(eg strings,
necklaces,ribbons,for babies dummies),which
could pose a risk of strangulation.Red warning
sticker has to be removed from bed ends (to
show mattress can’t go above this height).
Unpack,Do not discard any packing until you are
sure you have identified all the components.Make
sure you have: 1) Fixed End:2) A & B Detachable
End;3)Fixed Side Rail; 4)Mattress Base; 5)Triangle
Support; 6) Triangle Support; A) 12x89mm Bolts; B)
12xBarrel Nut; D) Allen Key; E) Triangle Support
bolts (Required when converting to a bed);
