Tutti Bambini Malmo - Assembling into Bed

8
www.tuttibambini.com

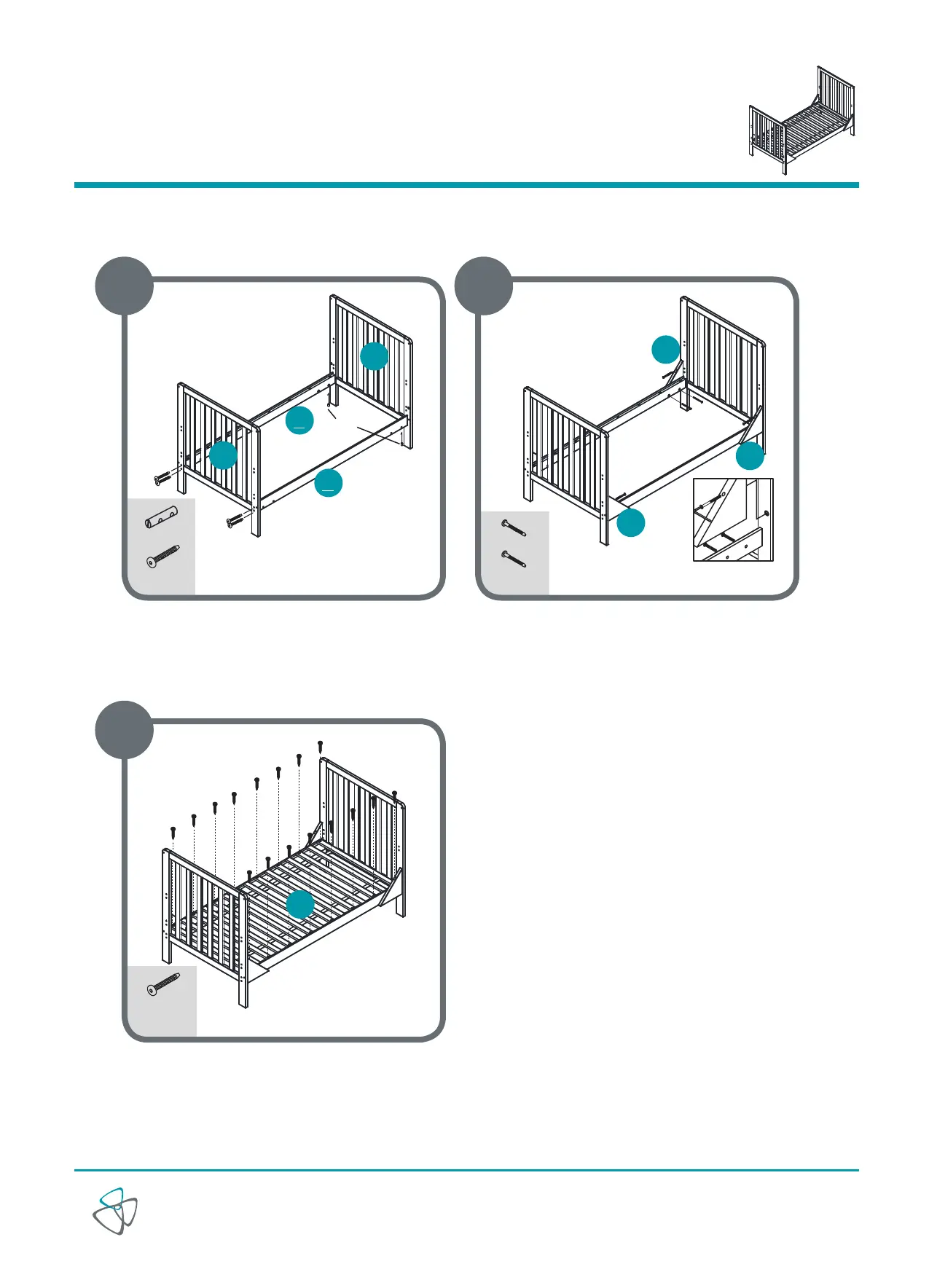

Assemble the 2 ends with fixed rail
using 4 x C bolts
Assemble mattress base using
16 x F bolts
Assembling into bed
Fx 16 PCS
20mm
Important note:First tighten all bolts by hand only, do not tighten all bolts with
Allen Key until all parts have been fully assembled.
2
3
1
C x 8 PCS
60mm
G x 4 PCS
Cx2
Cx2
Gx2
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
C
I
I
I x 8 PCS
C x 4 PCS
60mm
Assemble triangle braces support
using 4 x C bolts and 8 x I bolts
C
C
I
I
I
1
1
9
9
10
10
11
3
