TECHNICAL SPECIFICATIONS
INPUT: 12-120 vdc 0.5 amps / 10mA in stand by mode
OUTPUT: Relay contact rating : 10 amp up to 24 vdc, 1amp 36 vdc and higher
For bigger loads, an external relay must be used.
CONSTRUCTION: Epoxy encapsulated electronics, unit is rated IP65. There are no user serviceable parts
in this unit.

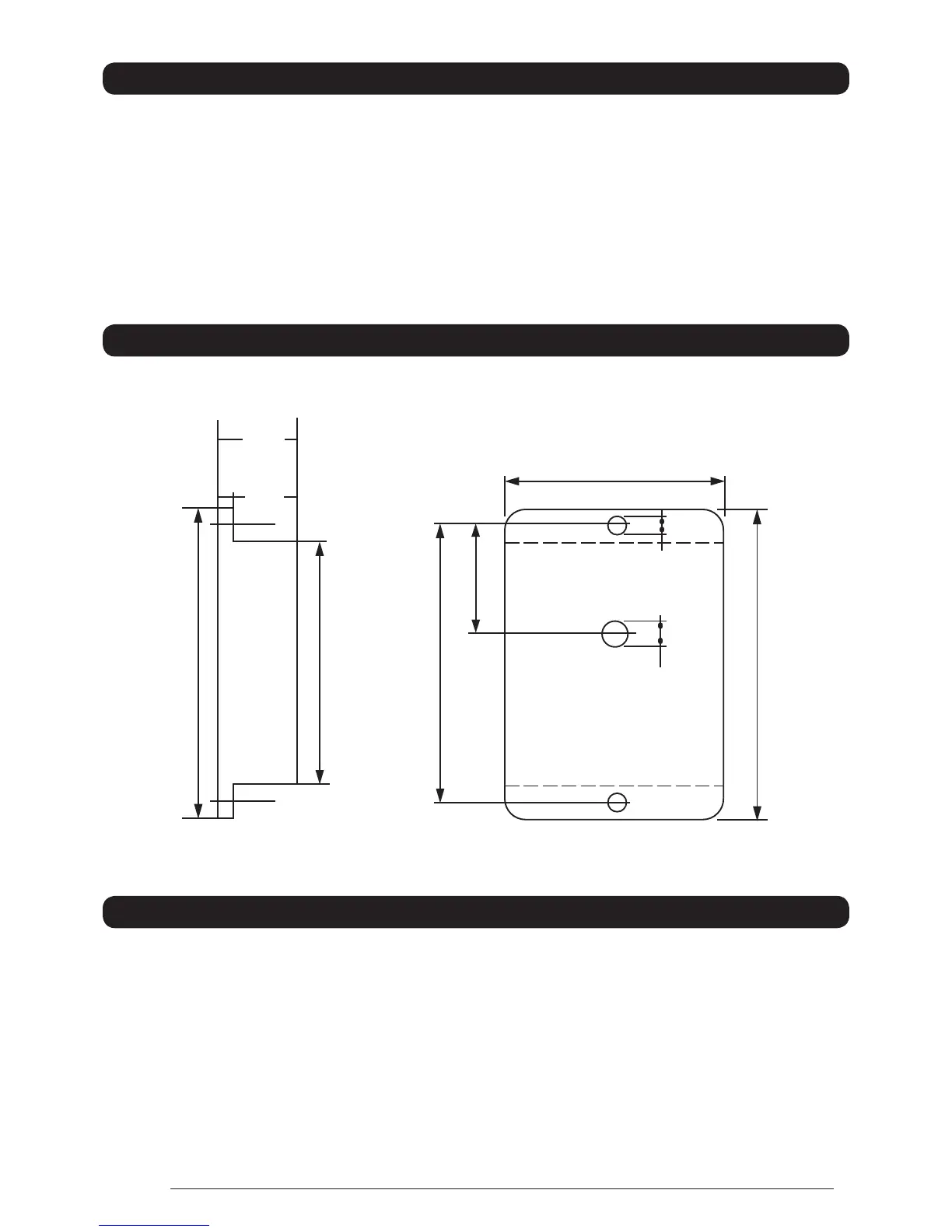

DIMENSIONS
3.94” / 100 mm
0.16” / 4 mm
0.94” / 24 mm
4.23” / 107 mm
4.23” / 107 mm
3.52” / 89 mm
0.62” / 16 mm
0.14” / 3.5 mm
2.72” / 69 mm
1.41” / 36 mm
The Safe-T-Lock code switch unit offers a high level of security to prevent unauthorized use of equipment.
In order to set up, program, operate and retrieve data from the unit, two modes of operation are provided,
supervisor and user.
Supervisor mode allows access to the following functions:
• Change Supervisor PIN (Personal Identifi cation Number)
• Adding/Deleting Users
• Last User Identifi cation
• Maintenance cycle menu
User mode allows access to the vehicle along with the ability to perform the following functions:
• Change User PIN
• Operate equipment
OVERVIEW
