52
Make sure that the cover frame is locked securely in
position after installation.

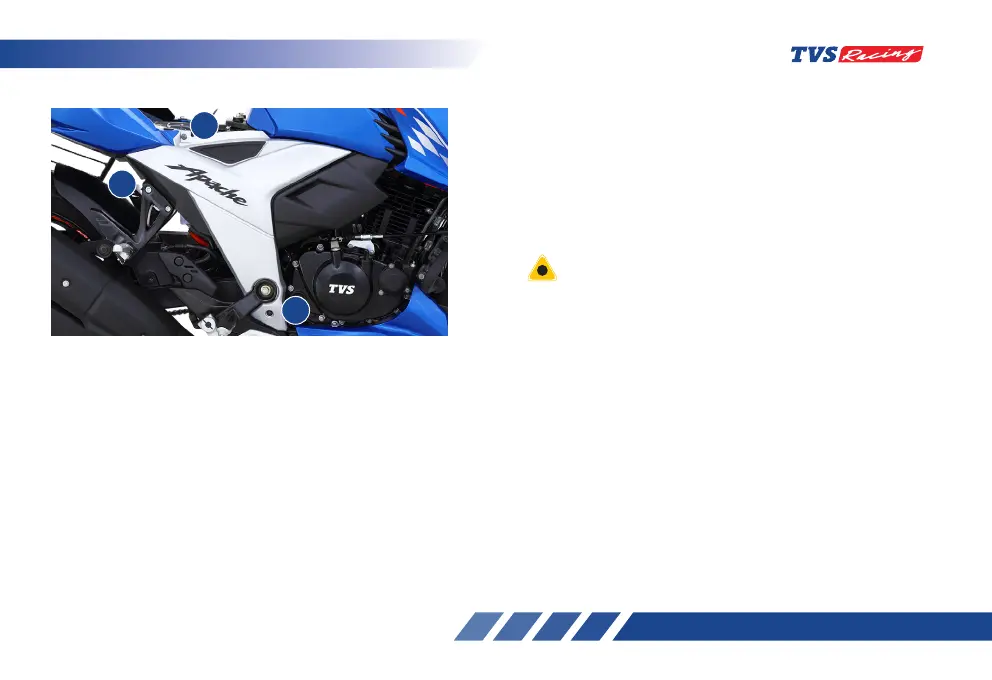

COVER FRAME R
2
3
1
Removal
Cover frame R is provided to access the battery and
rear disc brake master cylinder. This cover can be
opened in the following manner:
1. Remove the seat assembly as explained in page
no. 50.
2. Remove the mounting screws fixed at the
locations (1), (2) and (3).
3. Gently dislocate and take out the cover frame
from the vehicle.
Re-install
1. Locate the lugs of the cover frame at the holes
provided on the frame carefully while ensuring
the availability of cushions.
2. Install and tighten the mounting screws (1), (2)
and (3).
3. Reassemble the seat assembly.
