TVS Apache RTR 200 4V ABS Race Edition 2.0 User Manual

14

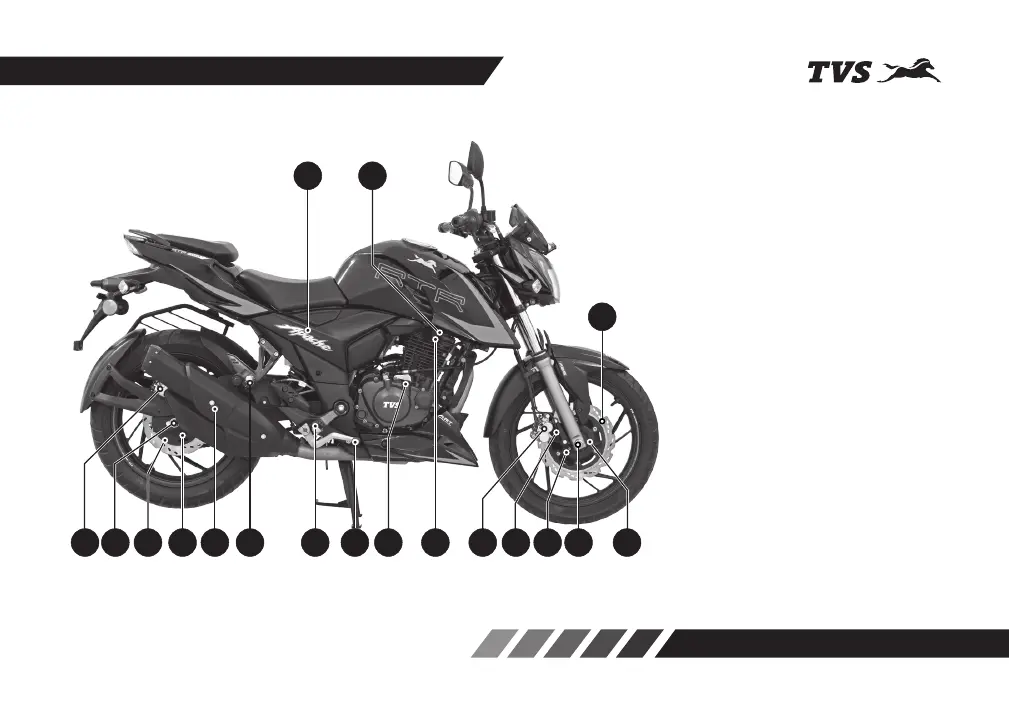

LOCATION OF PARTS - VEHICLE RIGHT SIDE
1. Disc plate front
2. Cover toner ring
3. Front wheel axle nut
4. Wheel speed sensor front
5. Toner ring front
6. Caliper assembly front
7. Location of spark plug
8. Gauge oil level
9. Rear brake pedal
10. Rider foot rest R
11. Pillion foot rest R
12. Muffler assembly
13. Toner ring rear*
14. Disc plate rear
15. Rear wheel axle nut
16. Caliper assembly rear
1 7. Cover frame R
18. Location of ram air duct
1
17 18
211121314 710 9 8 34561516
* Applicable only for dual channel ABS version
