Rear brake

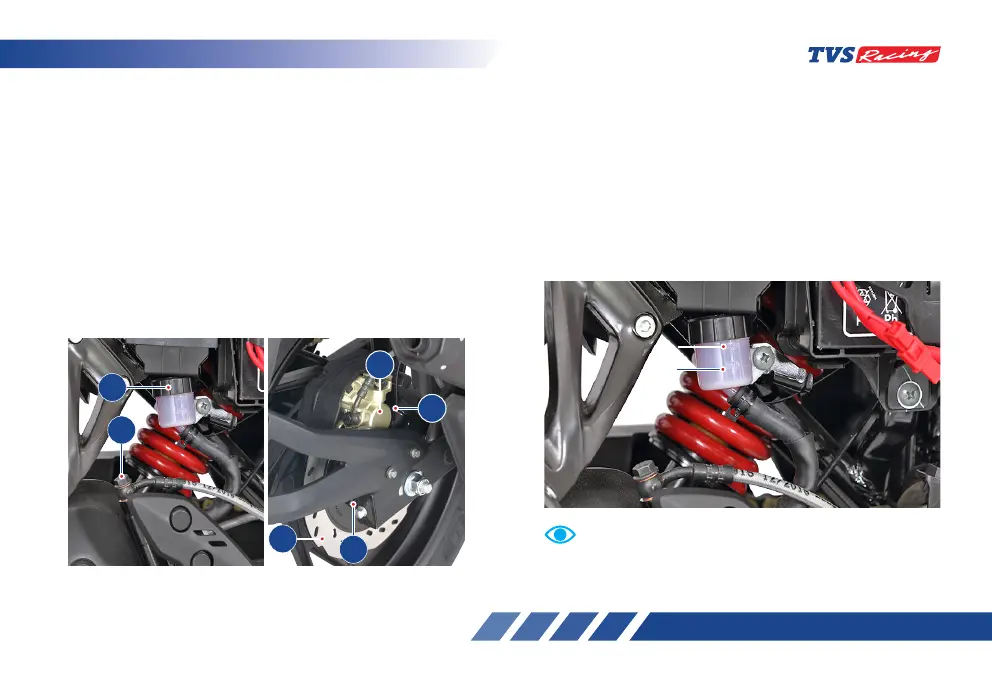

You can observe a master cylinder (1) mounted on
the right side pillion foot rest, a reservoir (2) below
the cover frame R, a caliper assembly (3) fitted on the
rear wheel axle along with wheel speed sensor (4)*,
a disc (5) and toner ring (6)* to the rear wheel. Two
high pressure hoses connecting the master cylinder
to HECU* and HECU* to the caliper (in non ABS
version high pressure hose is connected directly to
the caliper assembly).
1. Remove the cover frame R (refer page No. 55
for removal procedure).
2. Check the brake fluid level in the reservoir. It
should be between maximum and minimum
level.
3. If the brake fluid level is below minimum or
while applying brake if you feel the brake is more
spongy or ineffective due to air entry, contact
TVS Motor Company Authorised Main Dealer /
Authorised Dealer for topping-up the brake fluid,
air bleeding and other brake related inspections.
Check the brake fluid level only when the master cylinder
is parallel to the ground.
Note
MaximumMaximum
MinimumMinimum
* Not applicable of non ABS type rear brake system
5
2
4
6
3
1
