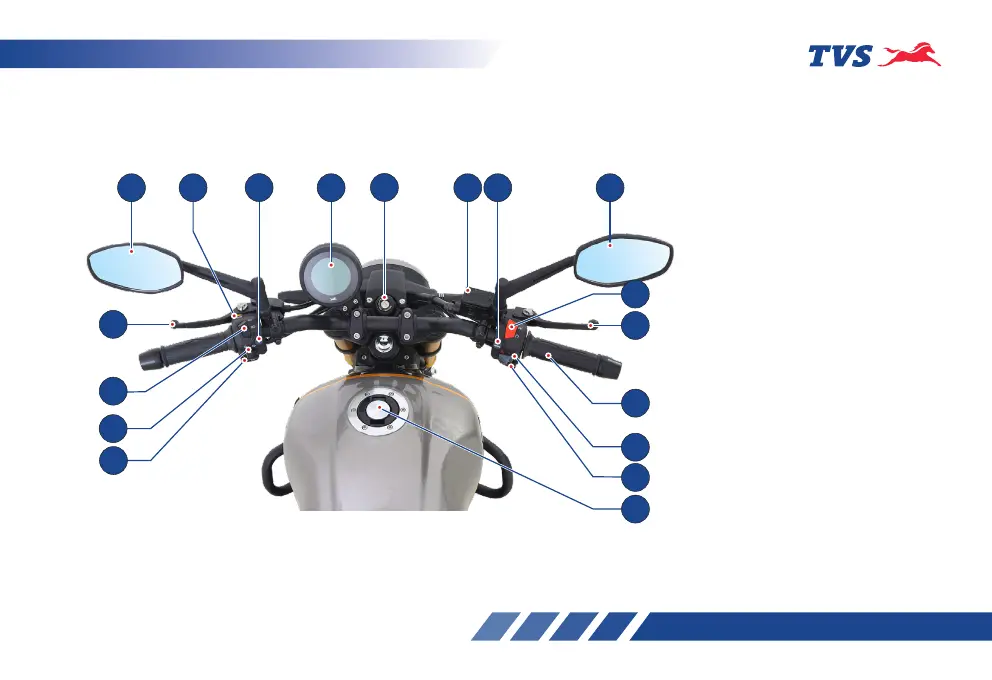

LOCATION OF PARTS - HANDLE BAR
1. Instrument cluster
2. Ignition cum steering lock
3. Master cylinder (front)
4. Mode switch
5. Rear view mirror R
6. Engine cut off switch
7. Front brake lever
8. Throttle grip
9. Hazard switch
10. Electric starter switch
11. Fuel tank cap
12. Horn switch
13. Turn signal lamp switch
14. High / low beam switch
15. Clutch lever
16. Rear view mirror L
1 7. Pass-by switch
18. Info switch*
2
3 54
9
13
18
1716
8
11
12
14
15
7
6
1
* Applicable for Connected instrument cluster version only
10
