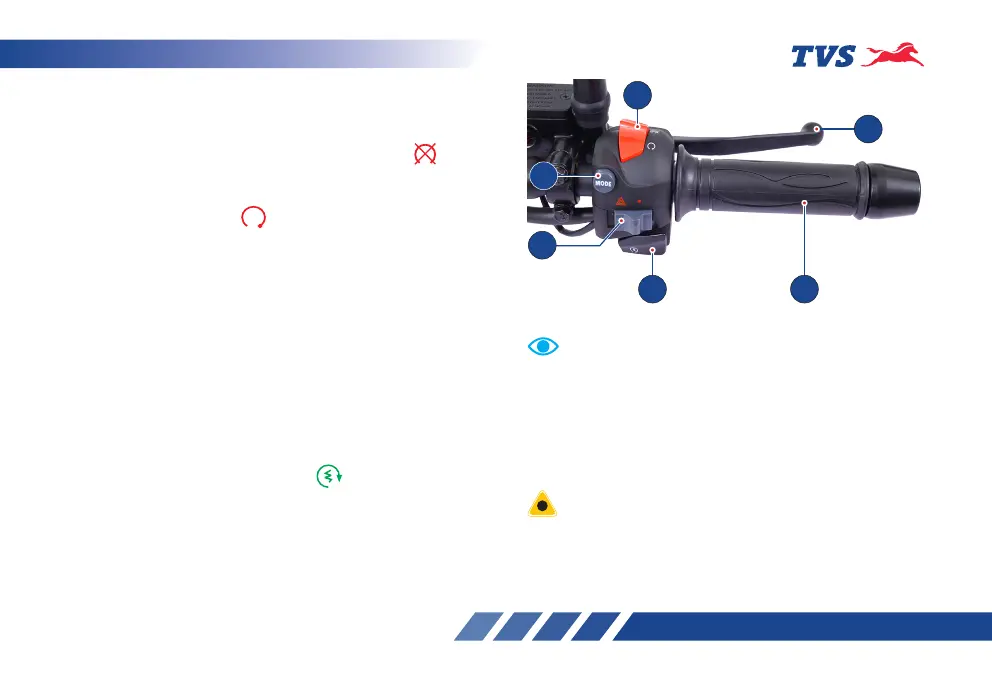

HANDLE BAR RIGHT SIDE
1. Engine cut off switch
It is used to switch off the engine but to keep other
DC system active. If the switch is positioned at ‘ ’,
the ignition circuit will be disabled, preventing the
engine from being restarted. To restart the engine,
return the switch to the ‘ ‘ position.
2. Adjustable front brake lever
It controls a hydraulic circuit (ABS) that operates
the front brake system. The front brake is applied by
pressing the front brake lever gently towards the grip.
The brake lamp glows on application of front brake
3. Throttle grip
It controls the fuel-air mixture supplied to the engine,
which regulates the engine speed. Rotate the throttle
grip in counter-clockwise from its idle position to
increase the engine speed and vice-versa to reduce.
4. Electric starter switch
Press the electric starter switch ‘ ‘ to start the
engine. Ensure the transmission is in neutral or else
press the clutch lever completely and side stand is
retracted before engaging the electric starter switch.
4
1
2
6
3
Ensure to turn ‘ON’ the engine cut-off switch before
starting the vehicle. Release the electric starter switch
immediately after pressing.
Front brake lever position can be set to your convenience.
Refer page no. 74 for details.*
Operation of electric start switch with clutch lever not
in completely pressed position can lead to jerking of
the vehicle, to prevent such unexpected behavior it is
recommended to press the clutch lever completely.
