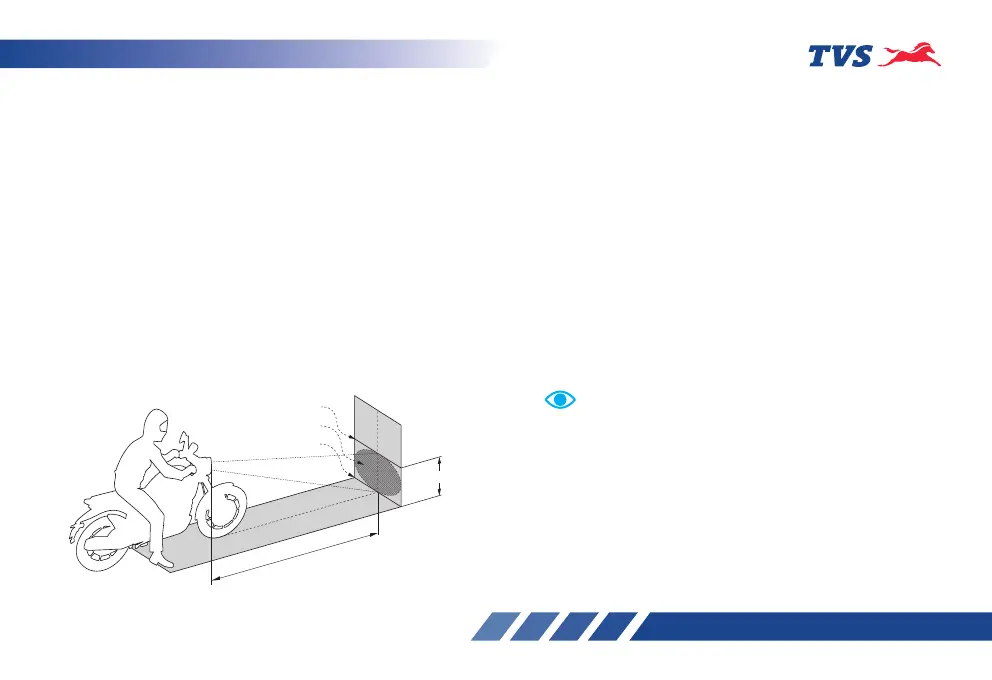

5 meters distance
720 ± 20 mm
Vertical Screen
Ground level
Low beam light on screen
Head lamp Low beam cut off line
Head lamp beam adjustment requires removal of few
fasteners which need to be done with additional care
to avoid damages. Contact TVS Motor Company Limited
Authorised Main Dealer or Authorised Dealer for getting
it adjusted to the specified limit.
The specification for head lamp beam adjustment is
applicable only for India. Owner’s of other countries are
advised to adopt the local rules and regulations.
Note
HEAD LAMP AIMING
If you find any deviation in the head lamp beam
focus of TVS RONIN, check the focus by following
the procedure given below. If the focus is not within
the specified limit mentioned in the illustration, get
the head lamp focus adjusted at TVS Motor Company
Authorised Main Dealer / Authorised Dealer.
To check the head lamp beam focus:
1. Place the vehicle as shown in the figure from the
5 meters screen / wall.
2. Mark the horizontal line on a screen around
720 ± 20mm from the ground level and mark the
vertical line in middle of the horizontal line.
3. Sit on the vehicle to check the head lamp focus
after the screen setup.
4. Start the vehicle and turn head lamp to high beam
mode.
5. Rotate the handle bar to the left / right side and
focus the head lamp on the vertical line of the
screen.
6. Now, turn the head lamp to low beam mode.
7. Ensure the head lamp low beam focus into
720 ± 20mm from the ground level as shown.
8. If not, contact nearest TVS Motor Company
Authorised Main Dealer or Authorised Dealer for
head lamp focus adjustment.
