COVER FRAME R
2
3
1
Removal

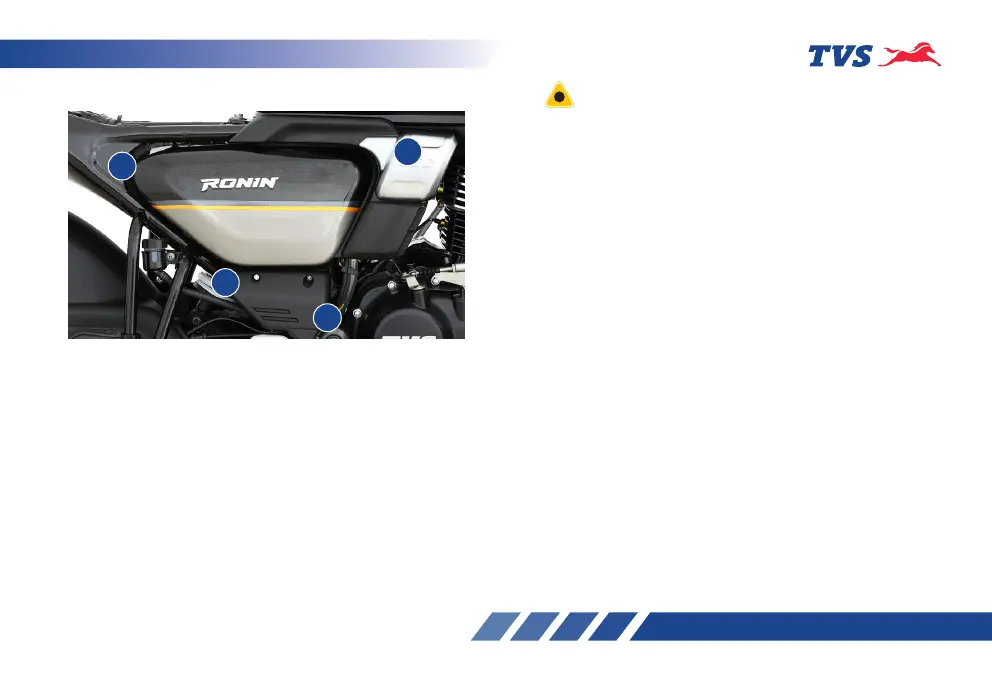

Cover frame R is provided to access the battery and
rear disc brake master cylinder. This cover can be
opened in the following manner:
9. Remove the seat as explained in page No. 71.
10. Remove the mounting screws (1) & (2). Uplug
the lugs at (3) & (4) and take out the cover frame.
Re-assembly
1. Locate the lugs of the cover frame at the holes
provided on the frame at (3) & (4) and install the
mounting screws (1) & (2).
Make sure that the cover frame is locked securely in
position after installation.
