Clutch setting
The distance the clutch lever free movement is
one of the important settings, you may need to
be checked when the service to get the clutch
plate service life is longer.

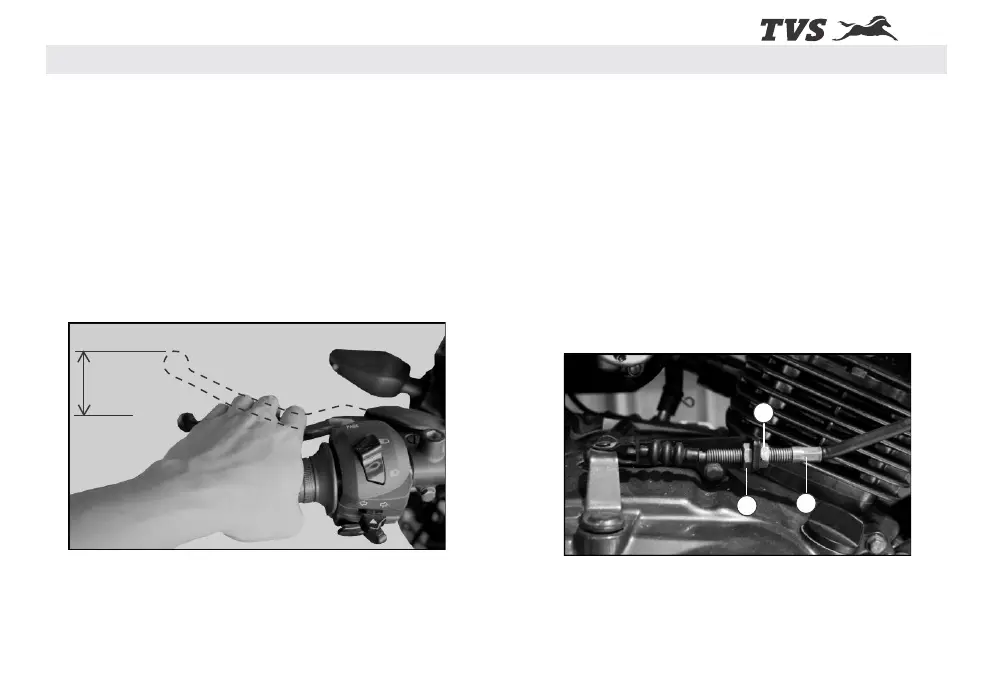

Free movement of the clutch should be 5-10
mm, when measured at the end of the clutch
lever before the clutch started to be released.
Checking the clutch lever free distance
Adjust the clutch lever free motion controller
periodically at the time of release the clutch
cable clutch hand. If you find that the distance is
too big or too small, set in the following manner:
1. Loosen the lock nut (2) hold the clutch cable
regulator (3), set the clutch cable set nut (1)
'in' or 'out' to provide sufficient distance in
the clutch cable.
1. regulator nut 2. Locking nut 3. Regulatory clutch cable
2
1
3
