page 11

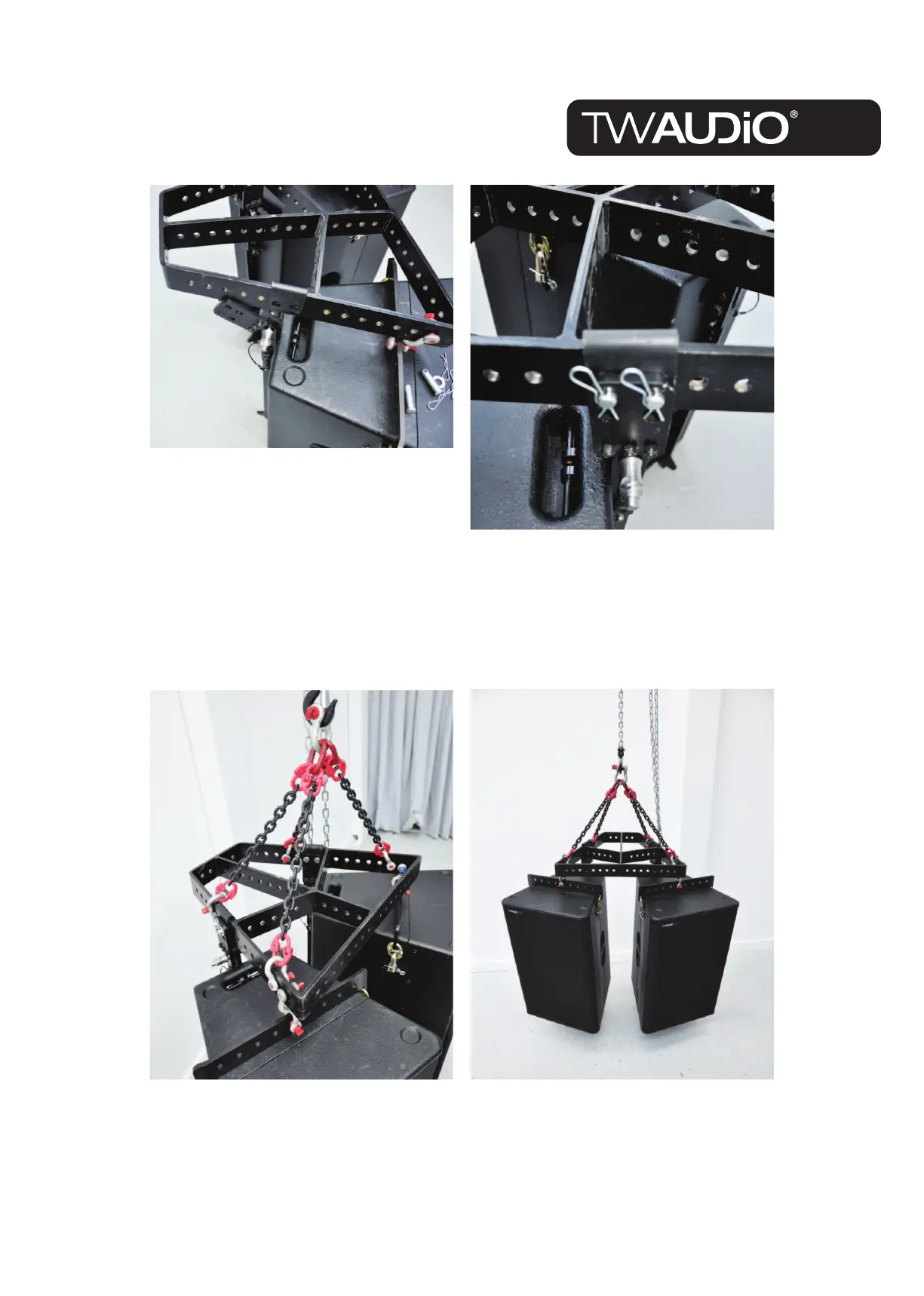

Attach the MCT to the top shakles of the
CBT.
Open the pins on the BATs and remove the
adapter-part.
Here you can see the two BATs prepared.
They are simply attached to the BBTs via
the top Pin.
a
b
This has to be done on both sides!!!
! !
Attach the ASK44 to the MCT24 using the
shakles delivered with the ASK44. The main
cradle should always hang almost straight.
c
Now rig up your speaker cluster and save it
according to the safety-regulations in your
country.
d
