• When rigging e.g. 4pieces of T24
in one Cluster, it is important to
bring the Loudspeakers as close
together as possible at their lower
end.
• Set up all 4 loudspeakers on top
of each other using the BBT and
the BLT.
• Then connect the MCT as de-
scribed above to the BAT and the
CBT.
The Shown Setup gives you an
Angle of -1° on the lower box and
since we left two holes free in the
BLT rigging the lower Box has an
angle of -13°.

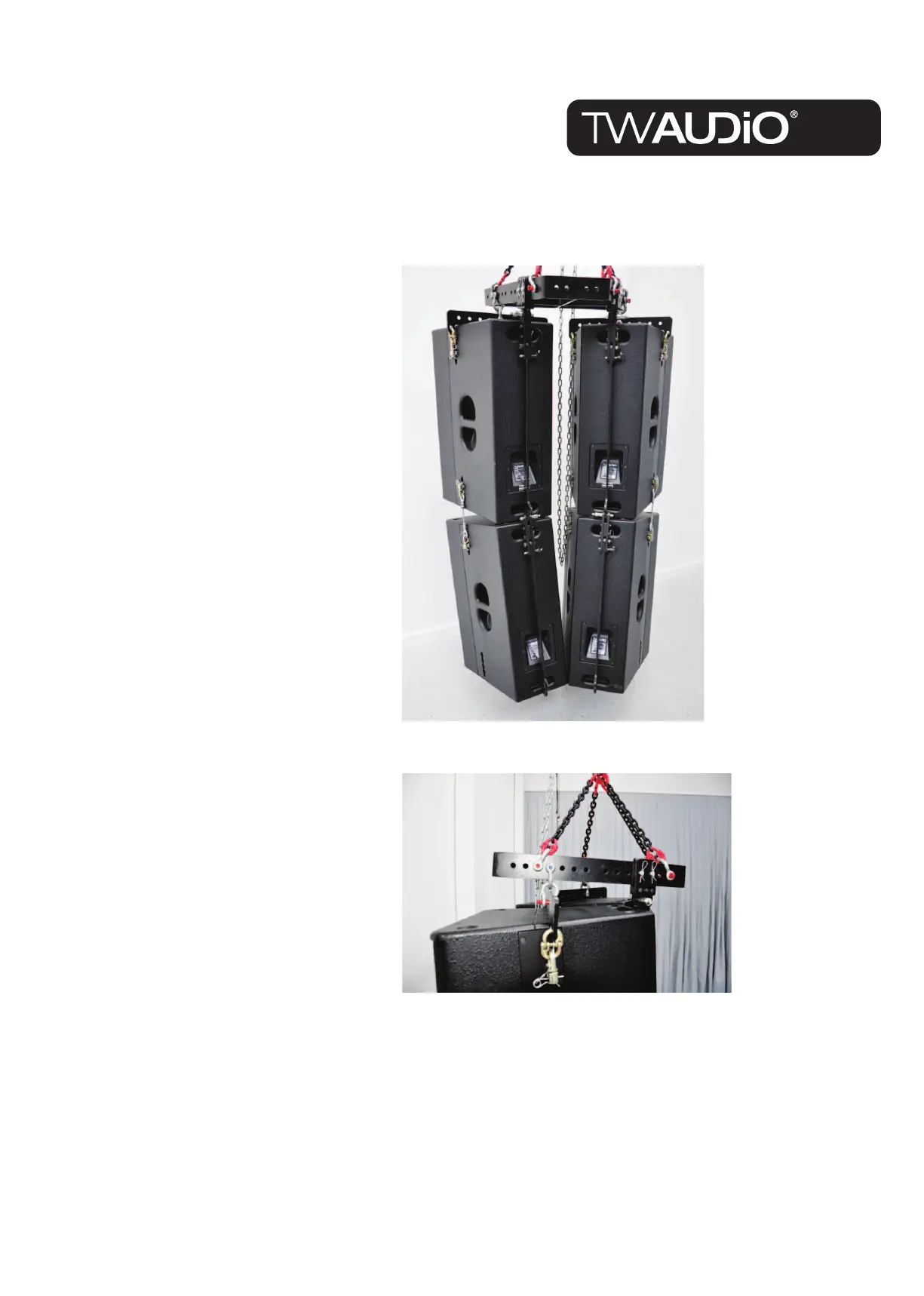

4. Rigging clusters
This is the rigging of the MCT for
-1° and -13° with a 4pc. Cluster:
