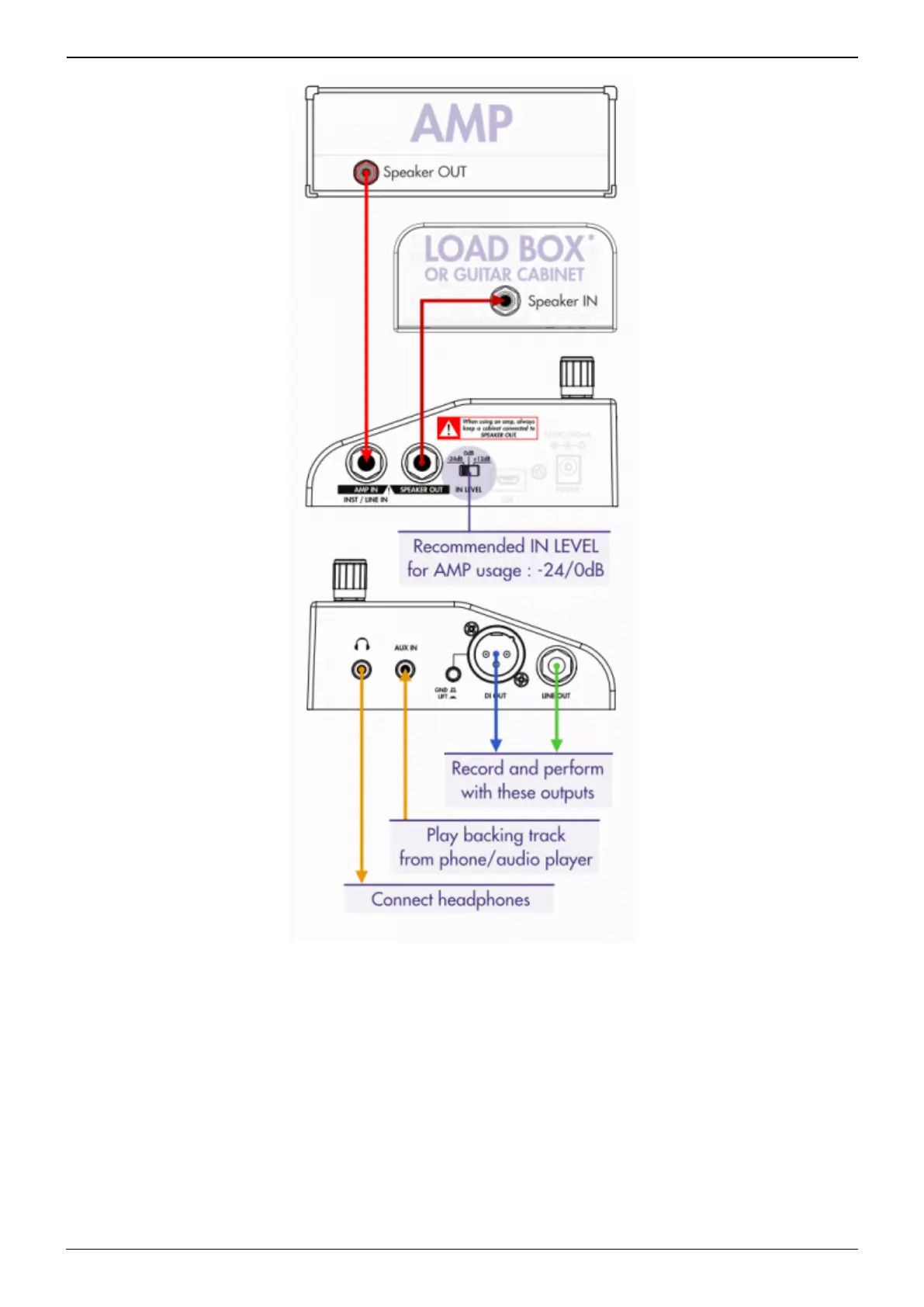

With a cabinet
Insert the C.A.B. M+ between your amp and your load box/cabinet. To do so, connect your amp to the
AMP/INST/LINE IN (item N°4 in the overview diagram above) of the C.A.B. M+ with a speaker cable
and connect the SPEAKER OUT (item N°5) of the C.A.B. M+ to your cabinet, again with a speaker
cable.
Depending on the output level of the amp, set the IN LEVEL of the pedal to have the appropriate input
level on the screen. With an amp, start with the IN LEVEL switch on 0 dB. If it is clipping (message will
appear on the screen in the input bargraph), lower it to -24 dB.
