35
ROLLER HEIGHT ADJUSTMENT

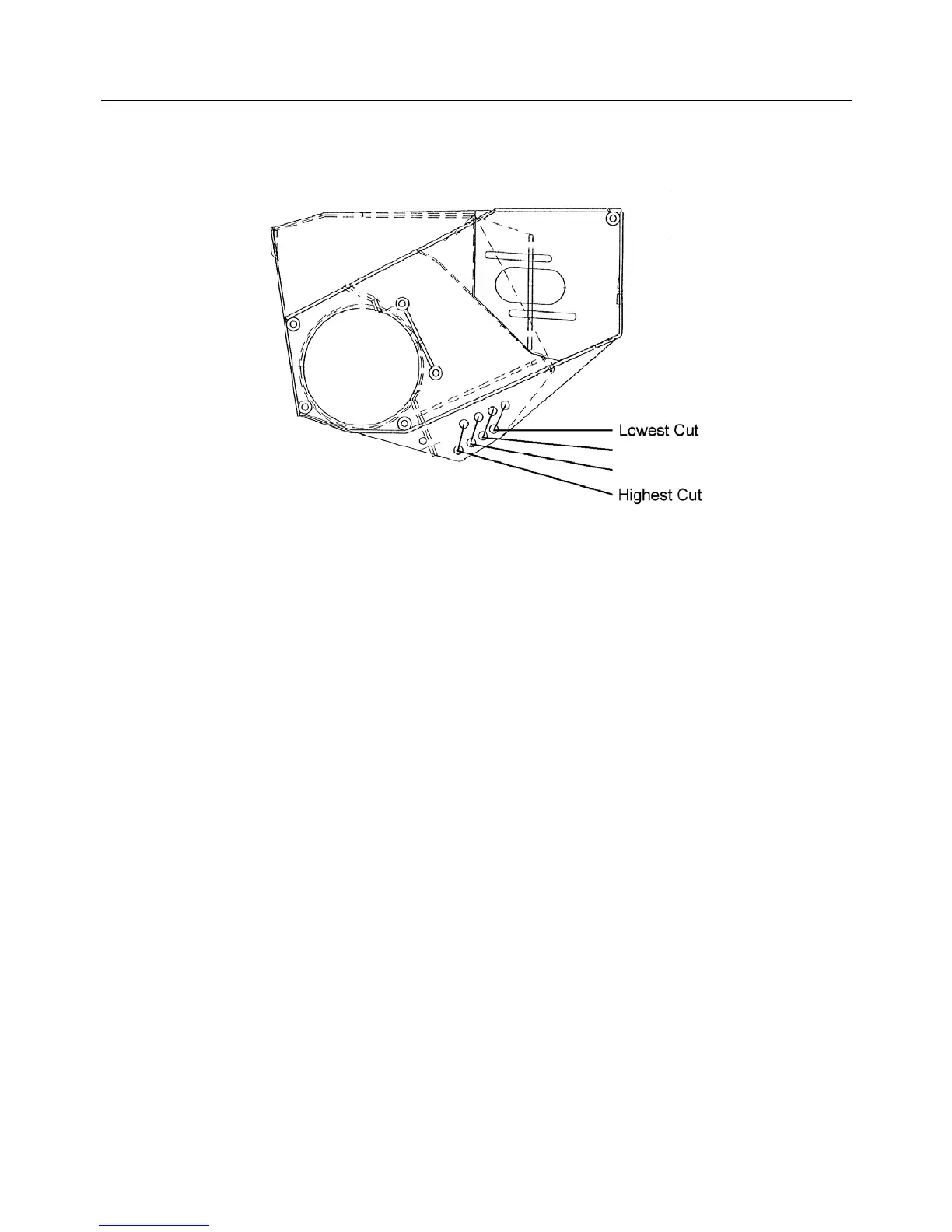

The cutting height of the flail head may be adjusted to cut at 4 different heights; this is
achieved by altering the mounting position of the roller on the flail head - refer to diagram
below.
To alter the roller position, each end bracket of the roller and the relative securing bolts
will need to be positioned at either of the four position height options offered. Ensure that
same opposing location holes on the flail head are chosen.
NOTE:
The flail head roller is generally required only when bank or verge mowing and not when
hedgetrimming.
