TYAN TS75A-B8252 - HDD Backplane Features

76
http://www.tyan.com

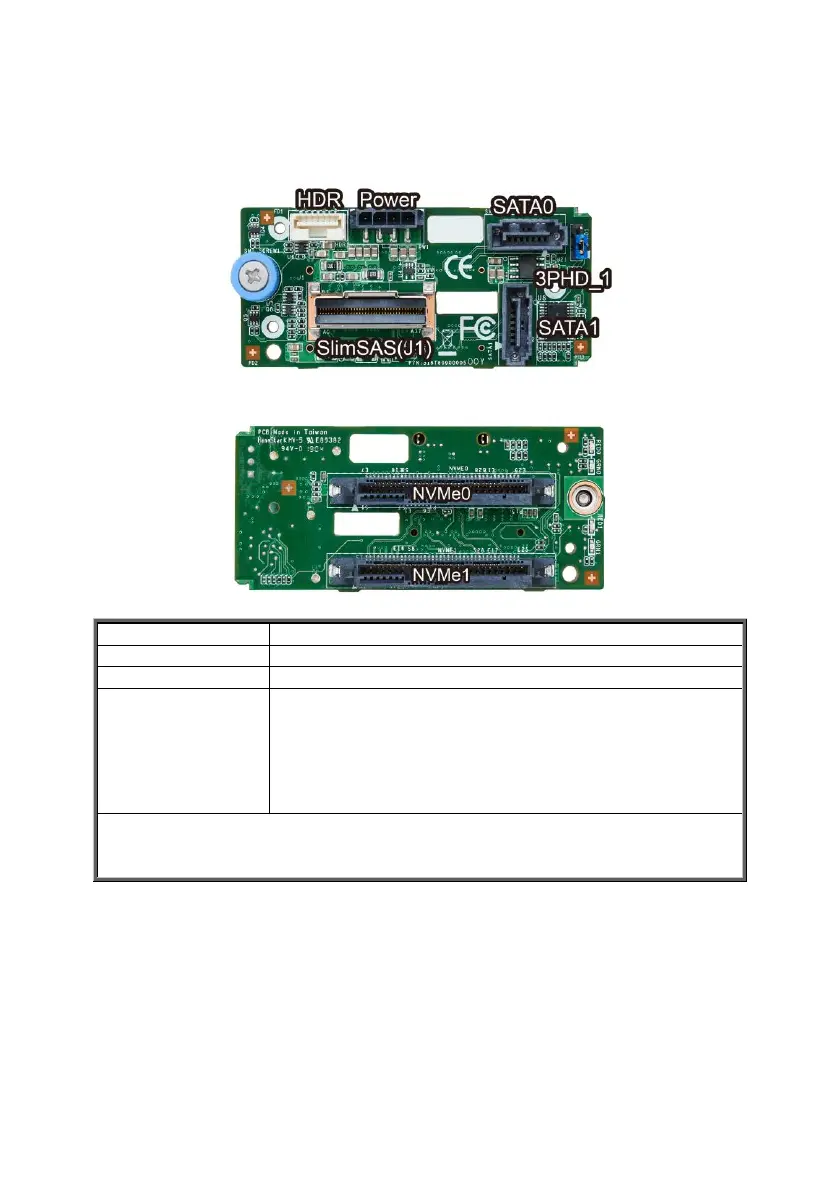

3.8.3 HDD Backplane Features
M1298T65-BP12E-2
Front View
Rear View
PCB Dimensions:
76mm*33.5mm*3mm
Thickness:
3mm
Layer:
8 layers
Integrated I/O
Slimsas Connector (J1)
SATA + NVMe Connector(NVME0)
SATA + NVMe Connector(NVME1)
SATA Connector(SATA0) SATA Connector(SATA1)
4P Power CON (PW1)
Header for PCA9544 SMBUS address Select (3PHD-1)
The rear 2 SATA SSDs/HDDs (SATA0 & SATA1) are not available when AMD
EPYC™ 7002 Series Processors deployed in all configurations. Please contact
Tyan Technical Support for more details.
