408–9414
Terminating Head 58063–2
Rev A4 of 4
1
2
3
15
6
7 9
5
13
10
12 11
8
A A
Section A–A
84.07 mm [3.31 in.]
25.4 mm
[1.0 in.]
44.45 mm
[1.75 in.]
144
REPLACEMENT PARTS
ITEM PART NUMBER DESCRIPTION QTY PER HEAD
1 312331–1 HEAD 1
2 28593–1 SCREW, Self–Tapping 2
3 314011–1 HOUSING, Insert 1
4 314012–1 PAWL 1
5 1–23147–2 SPRING, Compression 2
6 312339–1 INSERTER, Wire 1
7 312340–1 GUIDE, Wire 1
8 4–23715–7
SCREW, Machine, 4–40
.750 in. L
2
9 3–21028–2 PIN, Slotted Spring 1
10 312149–1 ADJUSTER (Inserter Rod) 1
11 22488–5 SPRING, Compression 1
12 312148–2 ROD, Inserter 1
13 314013–1 SLIDE, Feed 1
14 304580–0 PIN, Spirol 1
15 314014–1 PAWL, Locator 1

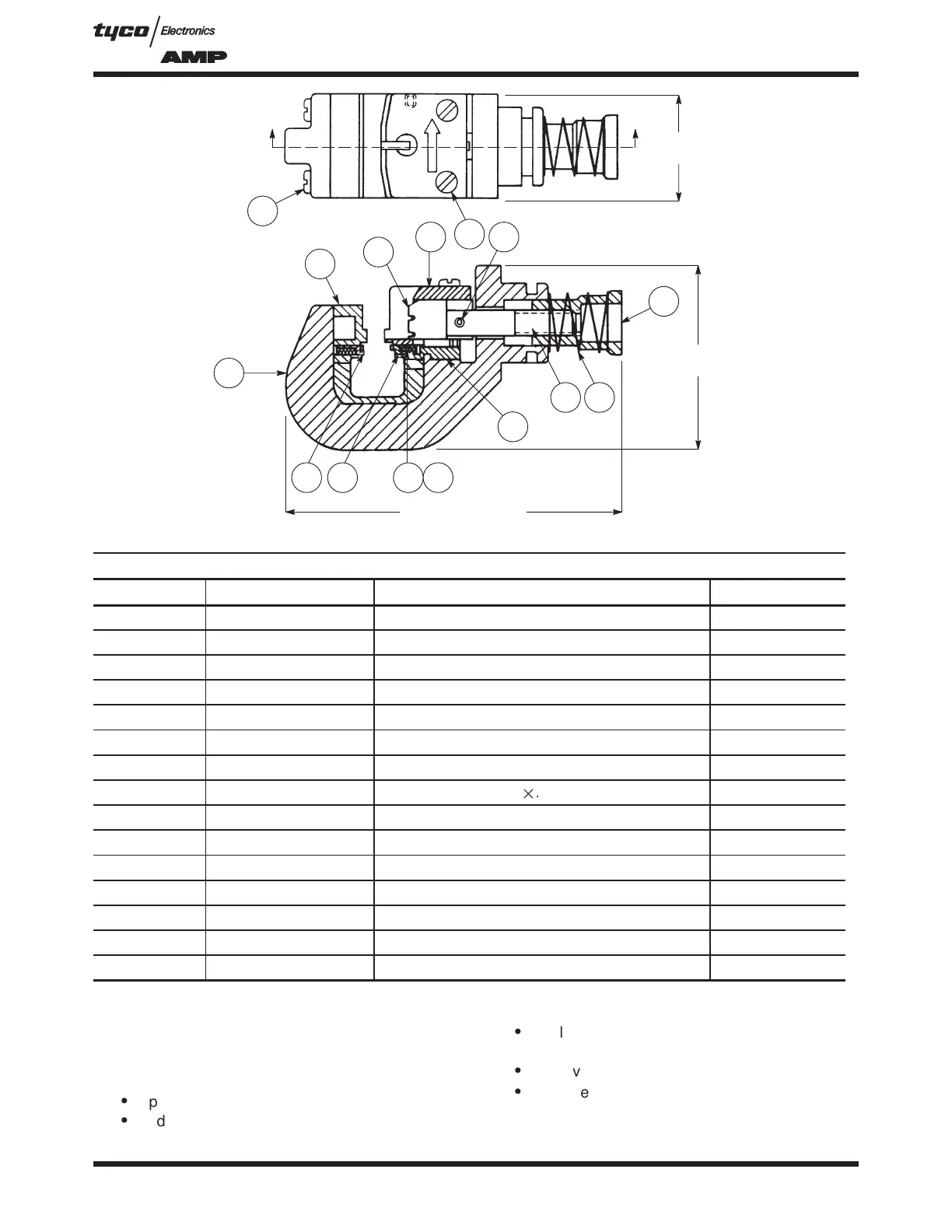

Figure 5
7. REVISION SUMMARY
Revisions to this instruction sheet per EC
0990–0902–04 include:
S
Updated document to corporate requirements
S
Added electric power unit to Section 1
S
Replaced Figures 2 and 3 with reference
connector part numbers
S
Removed instruction for feed adjustment
S
Removed Item 3 from Figure 5
