Sprinkler
Removal
NOTICE
Before closing a fire protection system
main control valve for maintenance
work on the fire protection system that
it controls, permission to shut down the
affected fire protection system must be
obtained from the proper authorities
and all personnel who may be affected
by this action must be notified.
A sprinkler system must be de-pres-
surized and properly drained before
removing a sprinkler.
Other common hand tools, furnished
by the user, are needed in conjunction
with the TYCO Model 3002 SHA Fitting
Holdback Wrench to facilitate removal
of a sprinkler from a CPVC fire sprinkler
piping system.
The Holdback Wrench accepts a 3/8
in. drive socket wrench, of either the
ratchet or fixed type.
A sprinkler wrench of the type speci-
fied by the sprinkler manufacturer is
required. Refer to applicable sprin-
kler technical literature. In applications
where a recessed sprinkler wrench is
necessary, attach it to a socket drive
wrench of either the ratchet or fixed
type.
A recessed sprinkler installation fea-
tures a clearance hole of sufficient
size to permit fitting an escutcheon
closure ring. Typically, the hole must
be enlarged to accommodate inser-
tion and manipulation of the Holdback
Wrench. A keyhole saw or similar tool
may be used to enlarge the hole.
CAUTION
Before cutting a ceiling, check the area
surrounding the sprinkler for obstruc-
tions or electrical lines that can cause
injury.
Prior to using the TYCO Model 3002
SHA Fitting Holdback Wrench, observe
the following guidelines:
•
work area is free and clear of debris
•
sprinkler system is de-pressurized
and properly drained
•
sprinkler removal utilizing the
holdback wrench is a two person
task, the rst to immobilize the
sprinkler head adapter and piping
and the second to remove the
sprinkler
•
personnel removing a sprinkler
must wear safety glasses
See Figure 2 for reference and perform
the following procedure to remove a
sprinkler from a CPVC Sprinkler Head
Adapter Fitting:
Step 1. Remove recessed sprinkler
escutcheon closure if present.
Step 2. Enlarge sprinkler clearance
hole in ceiling to accommodate hold-
back wrench.
Step 3. Spread wrench chain into cir-
cular arrangement and insert chain
through enlarged sprinkler clearance
hole.
NOTE: Details in Steps 3 and 4 of
Figure 2 show holdback wrench chain
and SHA fitting without sprinkler for
fitting.
Step 4. First person engage chain
onto SHA fitting brass hex insert,
applying tension in clockwise direc-
tion to hold in place, removing slack
to avoid wrench slippage and poten-
tially damaging CPVC adapter and pip-
ing. Second person engage sprinkler
wrench onto sprinkler, fully seating
wrench recess on sprinkler wrench-
ing area.
Step 5. Apply steady equal force in
opposing directions on the SHA fitting
and sprinkler, first person clockwise on
fitting to prevent it from rotating and
second person counterclockwise on
sprinkler to remove from fitting.
Step 6. Withdraw sprinkler wrench
with sprinkler and holdback wrench
from the clearance hole.
Limited
Warranty
For warranty terms and conditions, visit
www.tyco-fire.com.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
Model 3002 Wrench
Specify: Model 3002 CPVC Sprin-
kler Head Adapter Fitting Holdback
Wrench, P/N 3002
NOTE: Wrench includes two replace-
ment chains.
Replacement Parts
Specify: Chain Kit, Model 3002 CPVC
Sprinkler Head Adapter Fitting Hold-
back Wrench, P/N 3011
NOTE: Kit includes five replacement
chains.

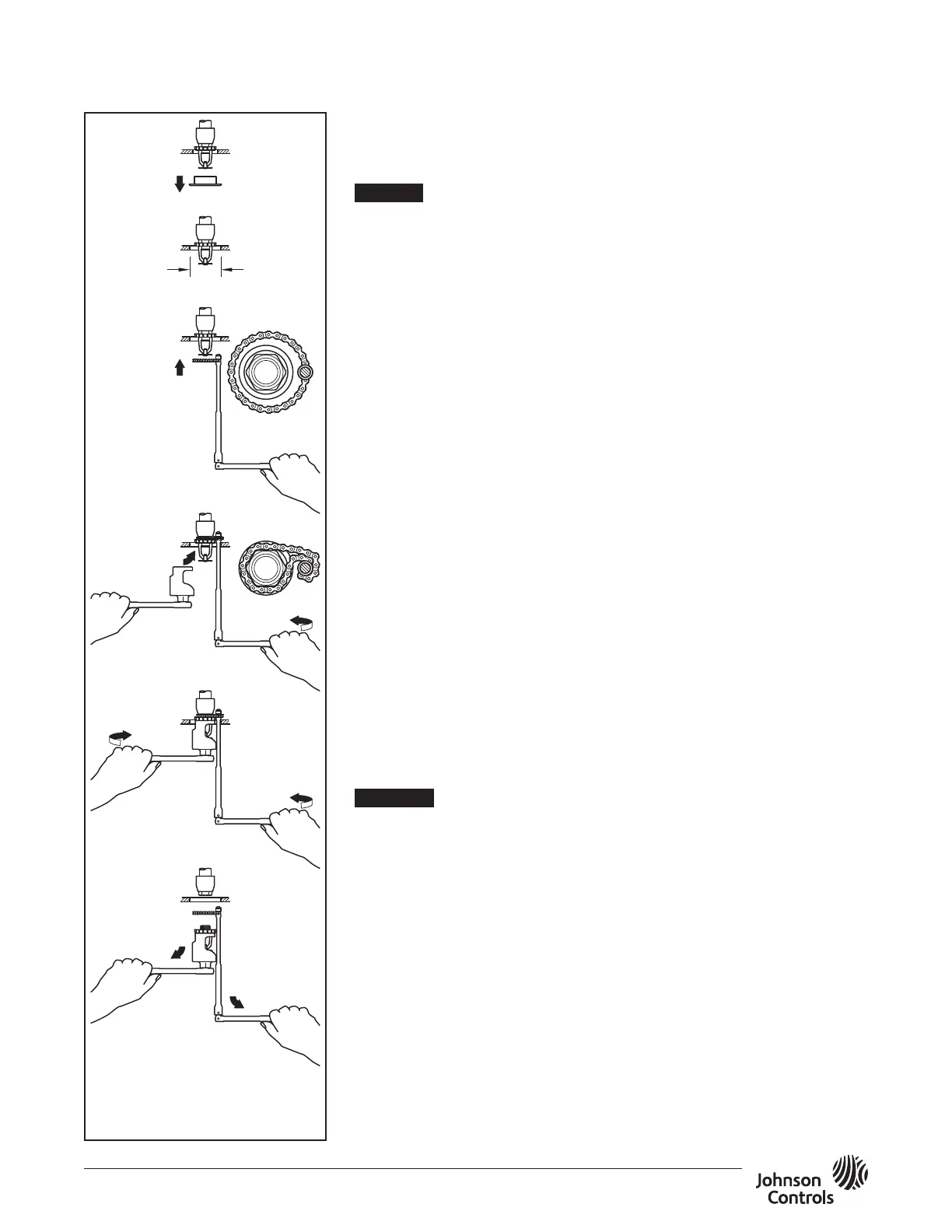

STEP 3
STEP 4
STEP 5
STEP 6
STEP 2
FIGURE 2
MODEL 3002
CPVC HOLDBACK WRENCH
SPRINKLER REMOVAL
