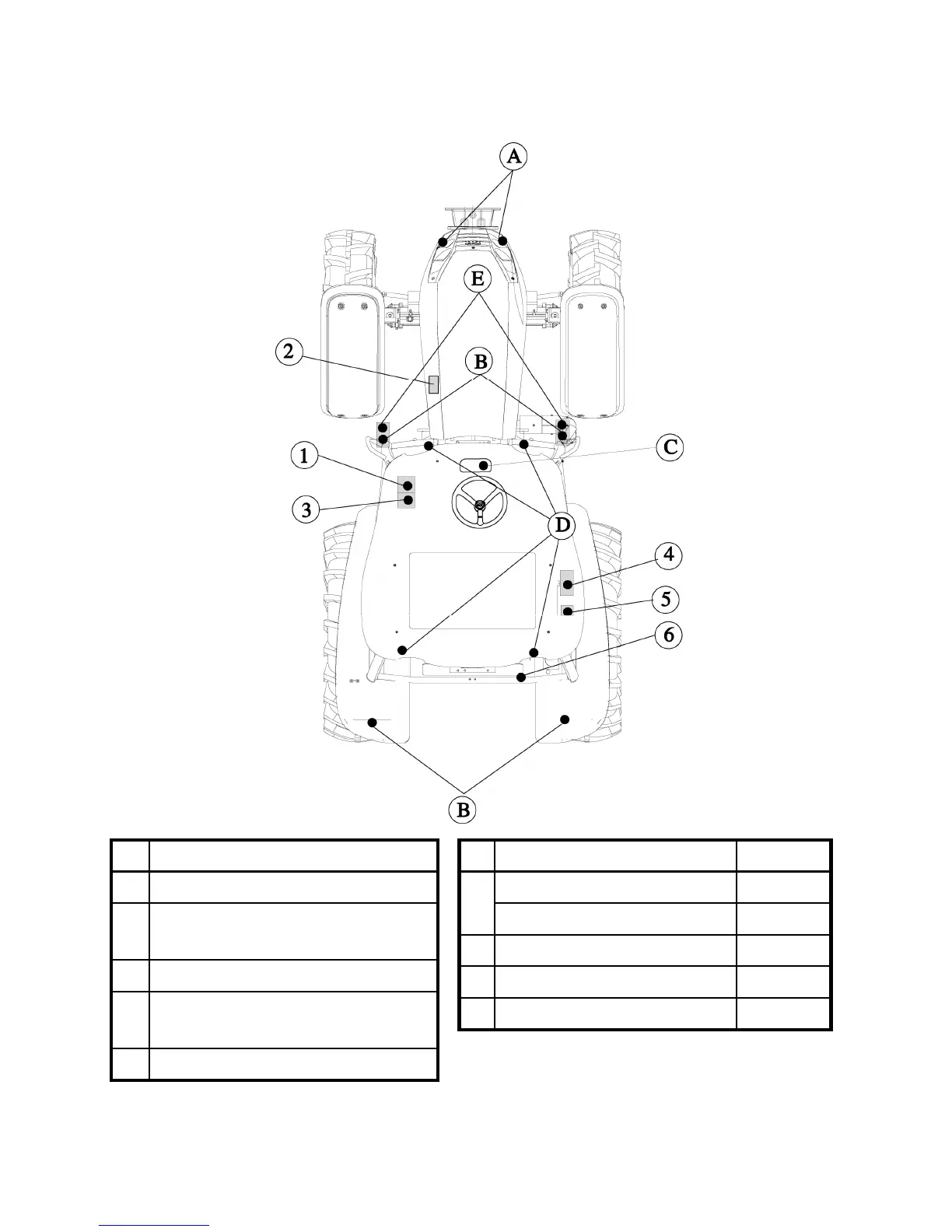

► WIRING DIAGRAM OF THE ELECTRIC INSTRUMENT
120
1 FUSE BOX
2 SLOW BLOW FUSE
3
UNITS FOR DIRECTION
SIGNAL RELAY FOR THE POWER
4 PTO SWITCH PANEL
5
COUPLER FOR THE POWER
MAX RATED AMPERE
6 COUPLER FOR THE TRAILER
A HEAD LAMP 12V55W
B
DIRECTION SIGNAL LAMP 12V21W
STOP LAMP BACK LIGHT 21V5W
C META PANEL LIGHT 12V3.4W
D WORKING LAMP 12V35W
E SIDE LAMP 21V5W
