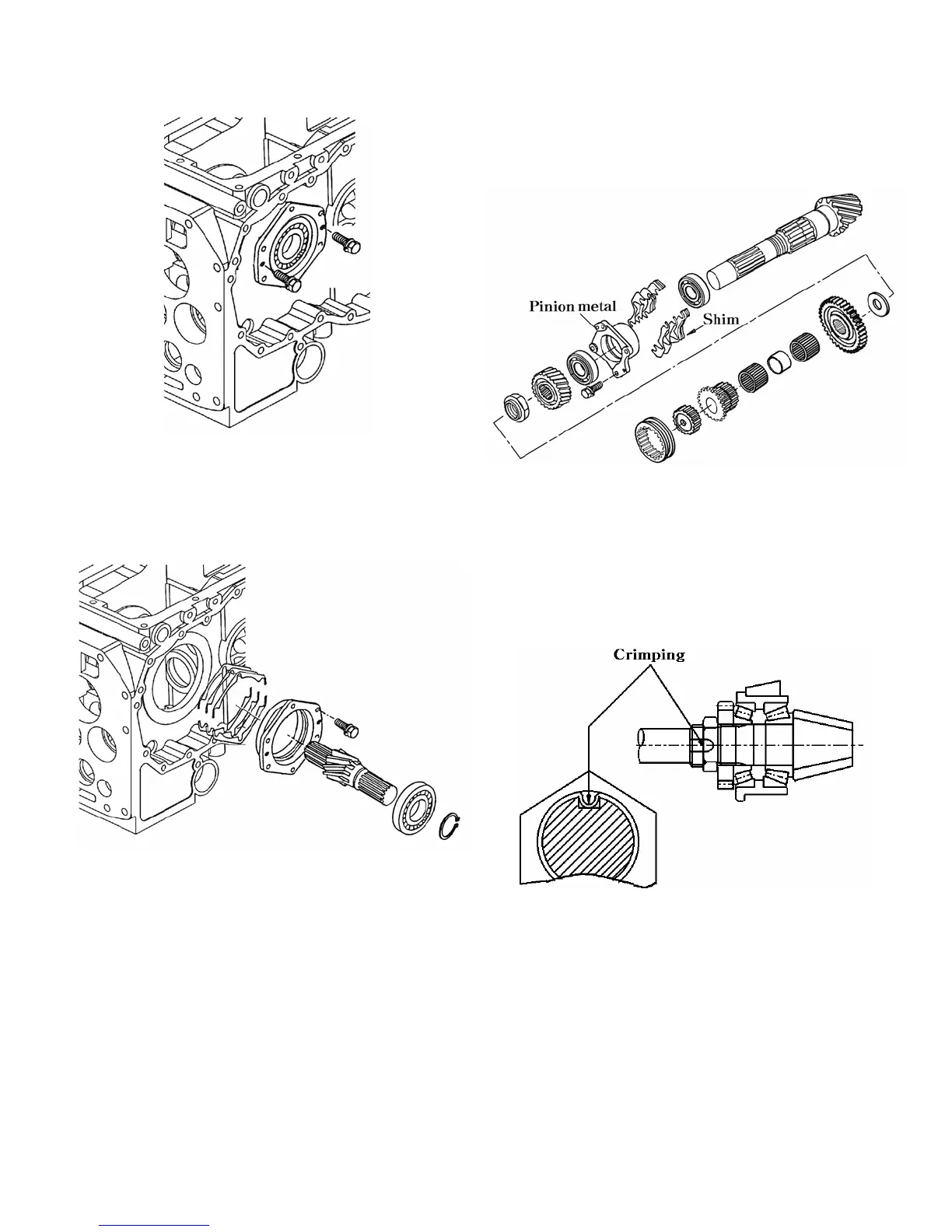

a.Dismount diff-case (RH) and diff-case
metal(LH) by installing push bolt as shown in
Fig.5-55
b.The number of installed shims(14) should be
written down or memorized for later reference.
Fig. 5-56
c. Remove ring gear(2) as a set.
d.When disassembling the ring gear set further,
remove bearing(31) with a puller.
e.Remove the bolts,and the ring gear can then be
separated from dif-cases
f. Pull out diff pinion shaft(11) and take out dif-
pinions(6) and dif-side gears(8).
g. Remove the pinion metal(support) tightening
bolts and take put drive pinion(19) and related
parts as an assembly.The number of installed
shims should be written down or memorized
for later reference.
g. Release the lock of nut and remove the nut
h.Push out drive pinion(19) from drive pinion
metal on a press.
i.Remove the bearing from the drive pinion with
a special tool.
5-30
Fig.5-57
Fig.5-58
Fig. 5-55
